LDicomAssociate::AddUserInfo
Summary
Appends a User-defined item to the DICOM Associate.
Syntax
#include "ltdic.h"
L_INT LDicomAssociate::AddUserInfo(nType, pData, nLength)
Parameters
L_UCHAR nType
Type of the User-defined item.
L_UCHAR * pData
Buffer that contains the data for the User-defined item.
L_UINT16 nLength
Length of the User-defined item.
Returns
| Value | Meaning |
|---|---|
| 0 | SUCCESS |
| >0 | An error occurred. Refer to Return Codes. |
Comments

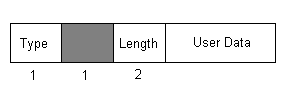

User-defined items may be included in the DICOM Associate to provide any other data the user finds necessary when establishing a DICOM Associate connection. The basic structure of the User-defined item is
where the Type, Length and User Data are all determined by the user. The values shown are the lengths, in bytes, of the elements of the User-defined item.
Required DLLs and Libraries
- LTDIC
- For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application
Platforms
Win32, x64
See Also
Functions
- LDicomAssociate::GetUserInfoCount
- LDicomAssociate::GetLengthUserInfo
- LDicomAssociate::GetDataUserInfo
- LDicomAssociate::GetTypeUserInfo
- LDicomAssociate::SetUserInfo
- LDicomAssociate::DelUserInfo
Topics
Example
For an example, refer to LDicomAssociate::GetUserInfoCount.
