Tension Property

Summary

Gets or sets a value that specifies the amount that this AnnClosedCurveObject curve bends between control points.

Syntax

C#
VB
C++
public virtual float Tension { get; set; }

Public Overridable Property Tension As Single
public:
virtual property float Tension {
   float get();
   void set (    float );
}

Property Value

A value that specifies the amount that this AnnClosedCurveObject curve bends between control points.

Remarks

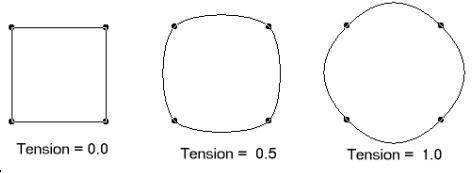

Valid values are between 0.0 and 1.0, where 0.0 indicates straight lines, and 1.0 indicates lines with the highest curvature. A typical value is 0.5. These values for Tension for a Closed Curve object are shown in the following bitmap:

Example

For an example, refer to AnnClosedCurveObject.
