Leadtools.Annotations.Engine Namespace > Classes > AnnCurveObject Object > Properties > tension Property
In This Topic ▼
tension Property
Summary
Gets or sets a value that specifies the amount that this AnnCurveObject curve bends between control points.
Syntax
Object.defineProperty(AnnCurveObject.prototype, 'tension',get: function(),set: function(value))
tension: number;
Property Value
A value that specifies the amount that this AnnCurveObject curve bends between control points.
Remarks

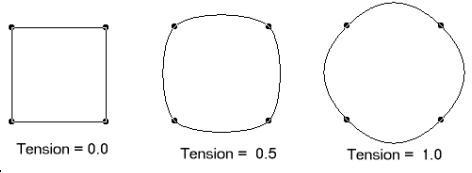

Valid values are between 0.0 and 1.0, where 0.0 indicates straight lines, and 1.0 indicates lines with the highest curvature. A typical value is 0.5. These values for Tension for a Closed Curve object are shown in the following bitmap:
Requirements
See Also
Reference
