Displaying Images Using Microsoft Expression Blend

In this quick tutorial, using the LEADTOOLS for WPF ImageViewer with Microsoft Expression Blend, you will design a layout and create an application that mounts a digital picture inside a digital frame. The entire XAML application can be created in a couple of minutes.

You can use the ImageViewer control to display almost any kind of image, anywhere in your window. In this case, we will use it to add a "picture frame" image. You can even display images on top of one another! In this project, we will use that feature to put a picture into the frame.

Create a project in Microsoft Expression Blend and set it up to use LEADTOOLS WPF controls.

Open the XAML and clear its content then paste the below code instead:

MainWindow.xaml

<Window xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:Leadtools_Controls_Wpf="clr-namespace:Leadtools.Controls;assembly=Leadtools.Controls.Wpf"
    x:Class="MyProject.MainWindow"
    x:Name="Window"
    Title="PictureIt!"
    Width="660"
    Height="500">
    <Grid x:Name="LayoutRoot" Margin="0,-2.619,0,2.619">
        <Leadtools_Controls_Wpf:ImageViewer x:Name="_imageViewer" Width="Auto" Height="Auto" Loaded="ImageViewer_Loaded"/>
        <Leadtools_Controls_Wpf:ImageViewer x:Name="_pictureViewer" Width="Auto" Height="Auto" Margin="99,82,97,83"/>
    </Grid>
</Window>

Open the code behind file and clear its content then paste the code below instead:

MainWindow.xaml.cs

using Leadtools.Codecs;
using Leadtools.Controls;
using System.IO;
using System.Windows;

namespace MyProject
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
        }

        static class LEAD_VARS
        {
            public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
        }

        private void ImageViewer_Loaded(object sender, RoutedEventArgs e)
        {
            _imageViewer.Zoom(ControlSizeMode.Stretch, 1.0, _imageViewer.DefaultZoomOrigin);
            _pictureViewer.Zoom(ControlSizeMode.Stretch, 1.0, _imageViewer.DefaultZoomOrigin);

            using (RasterCodecs codecs = new RasterCodecs())
            {
                _imageViewer.Image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, @"TestFrame1.JPG"));
                _pictureViewer.Image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, @"ImageProcessingDemo\Fruits.jpg"));
            }
        }
    }
}

Press F5 to build your application. This will take a few seconds.

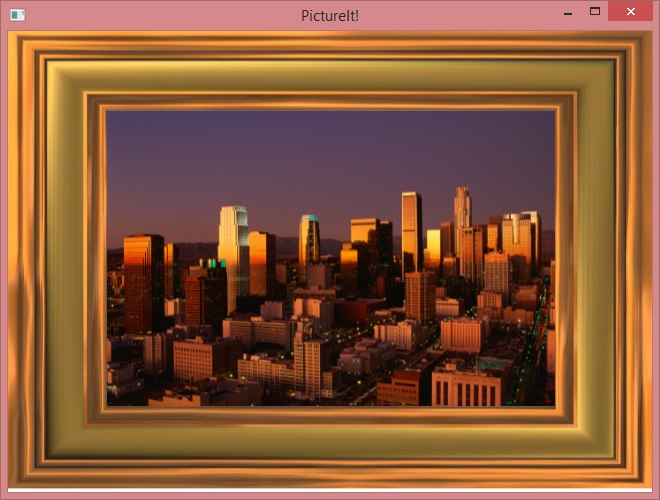

When it is done, you'll have a "framed" digital picture that you can resize like any window, with the "frame" and the "picture" resized together, but treated as separate objects:
