Restoring the LEAD Storage Server

Note: If you have already worked through the Changing the LEAD HTML5 Medical Viewer to use a Different Database Schema tutorial, then you should first work through the Restoring the LEAD HTML5 Medical Viewer to its Original State topic of that tutorial.

Step 1: Restore the Storage Server Manager so that it no Longer Uses MyQueryIOD.xml

Run CSStorageServerManagerDemo.exe
Login with the Username and Password credentials that you defined during database configuration

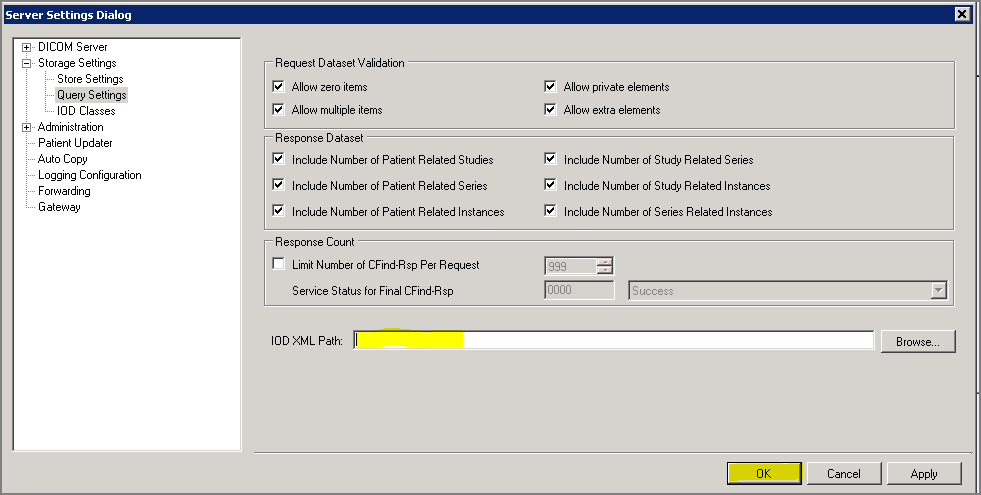

Open the Query Settings, and clear the IOD XML Path so that it is empty.
Click the OK button to save the changes.

Step 2: Restore the Application Configuration Files to use the Default Storage Catalog and Default DataSet Schema

Comment out the sections highlighted in yellow in the Leadtools.Dicom.Server.exe.config

<?xml version="1.0" encoding="utf-8" ?>
<configuration>
  <configSections>
  <section name="leadLogging" type="Leadtools.Logging.Configuration.ConfigSectionHandler, Leadtools.Logging" />
    <!--<section name="xmlStorageCatalogSettings" type="Leadtools.Medical.Storage.DataAccessLayer.XmlStorageCatalogSettings, Leadtools.Medical.Storage.DataAccessLayer" />-->
    <sectionGroup name="applicationSettings" type="System.Configuration.ApplicationSettingsGroup, System, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" >
      <section name="Leadtools.Dicom.Service.Properties.Settings" type="System.Configuration.ClientSettingsSection, System, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" requirePermission="false" />
    </sectionGroup>
  </configSections>
   <leadLogging>
    <channels>
      <channel name="DataAccessLoggingChannel" type="Leadtools.Medical.Logging.DataAccessLayer.DataAccessLoggingChannel, Leadtools.Medical.Logging.DataAccessLayer" />
    </channels>
  </leadLogging>
  <!--<xmlStorageCatalogSettings catalogPath="C:\LEADTOOLS 20\Bin\Dotnet4\Win32\MyCatalog.xml"/>-->
  <runtime>
    <generatePublisherEvidence enabled="false"/>
    <assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">
         <dependentAssembly>
            <assemblyIdentity name="System.Data.SqlServerCe" publicKeyToken="89845DCD8080CC91" culture="neutral"/>
            <bindingRedirect oldVersion="0.0.0.0-3.5.1.0" newVersion="3.5.1.0"/>
         </dependentAssembly>
         <dependentAssembly>
            <assemblyIdentity name="Microsoft.Practices.ObjectBuilder2" publicKeyToken="31BF3856AD364E35" culture="neutral"/>
            <bindingRedirect oldVersion="0.0.0.0-2.2.0.0" newVersion="2.2.0.0"/>
         </dependentAssembly>
         <dependentAssembly>
            <assemblyIdentity name="Microsoft.Practices.Unity" publicKeyToken="31BF3856AD364E35" culture="neutral"/>
            <bindingRedirect oldVersion="0.0.0.0-1.2.0.0" newVersion="1.2.0.0"/>
         </dependentAssembly>
      </assemblyBinding>
  </runtime>
  <appSettings>
    <add key="LicenseFile" value=""/>
    <add key="DeveloperKey" value=""/>
    <!--<add key="DataSetSchema" value=" C:\LEADTOOLS 20\Bin\Dotnet4\Win32\MyDataSet.xsd"/>-->
  </appSettings>
</configuration>

Modify CSStorageServerManagerDemo.exe.config (additions are highlighted in yellow)

<?xml version="1.0"?>
<configuration>
  <!--<configSections>
    <section name="xmlStorageCatalogSettings" type="Leadtools.Medical.Storage.DataAccessLayer.XmlStorageCatalogSettings, Leadtools.Medical.Storage.DataAccessLayer" />
  </configSections>-->
  <xmlStorageCatalogSettings catalogPath="C:\LEADTOOLS 20\Bin\Dotnet4\Win32\MyCatalog.xml"/>

  <runtime>
      <assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">
         <dependentAssembly>
            <assemblyIdentity name="System.Data.SqlServerCe" publicKeyToken="89845DCD8080CC91" culture="neutral"/>
            <bindingRedirect oldVersion="0.0.0.0-3.5.1.0" newVersion="3.5.1.0"/>
         </dependentAssembly>
         <dependentAssembly>
            <assemblyIdentity name="Microsoft.Practices.ObjectBuilder2" publicKeyToken="31BF3856AD364E35" culture="neutral"/>
            <bindingRedirect oldVersion="0.0.0.0-2.2.0.0" newVersion="2.2.0.0"/>
         </dependentAssembly>
         <dependentAssembly>
            <assemblyIdentity name="Microsoft.Practices.Unity" publicKeyToken="31BF3856AD364E35" culture="neutral"/>
            <bindingRedirect oldVersion="0.0.0.0-1.2.0.0" newVersion="1.2.0.0"/>
         </dependentAssembly>
      </assemblyBinding>
   </runtime>
  <appSettings>
    <!--<add key="DataSetSchema" value=" C:\LEADTOOLS 20\Bin\Dotnet4\Win32\MyDataSet.xsd"/>-->
  </appSettings>
</configuration>

Step 3: Rebuild the CSStorageServerManagerDemo.exe with Modifications

Note that you can skip this step completely, and just run the precompiled version of the demo (CSStorageServerManagerDemo_original.exe)

Start Visual Studio 2010
Open the StorageServerManager_4.csproj project file
- The default location for the project file is here: C:\LEADTOOLS 20\Examples\DotNet\PACSFramework\CS\StorageServerManager
Open the properties page
Remove the reference to My.Medical.Storage.DataAccessLayer
Remove TUTORIAL_CUSTOM_DATABASE from the Conditional compilation symbols
Rebuild CSStorageServerManagerDemo.exe

Step 4: Delete the Following Files from {LEAD Installation BIN}

Database manager configuration files. Note that default versions of these will be regenerated automatically when run a query in the Database Manager
- PatientLevel.xml
- StudiesLevel.xml
- SeriesLevel.xml
- ImagesLevel.xml

Step 5: Restore GlobalPacs.config to use the Original Shipping Database

Note that can simply rename the back up copy of globalPacs_original.config to globalPacs.config
- The default location is C:\LEADTOOLS 20\Bin\Dotnet4\Win32
Open the globalPacs.config file in Visual Studio (or any text editor)

Comment out the myStorageDataAccessConfiguration175 section. The new section is highlighted in yellow below.

<section name="storageDataAccessConfiguration175" type="Leadtools.Medical.DataAccessLayer.Configuration.DataAccessSettings, Leadtools.Medical.DataAccessLayer, Version=19.0.4.0, Culture=neutral, PublicKeyToken=9cf889f53ea9b907" />
<!--<section name="myStorageDataAccessConfiguration175" type="Leadtools.Medical.DataAccessLayer.Configuration.DataAccessSettings, Leadtools.Medical.DataAccessLayer, Version=19.0.4.0, Culture=neutral, PublicKeyToken=9cf889f53ea9b907" />-->

Un-comment the existing StorageServer entry in the storageDataAccessConfiguration175 definition, and comment out the new myStorageDataAccessConfiguration175 definition. The changes are highlighted in yellow below.

<storageDataAccessConfiguration175 connectionName="LeadStorageServer19_32">
    <add productName="StorageServer" serviceName="L19_PACS_SCP32"
       connectionName="LeadStorageServer19_32" />
    <add productName="Workstation" serviceName="L19_WS_SERVER32" connectionName="MedicalWorkstation19_32" />
  </storageDataAccessConfiguration175>

  <!--<myStorageDataAccessConfiguration175 connectionName="MyDicomDb">
    <add productName="StorageServer" serviceName=" L19_PACS_SCP32" connectionName="MyDicomDb" /gt;
  </myStorageDataAccessConfiguration175>-->

Un-comment the existing StorageServer entry in the forwardConfiguration175 definition, and comment out the new entry that references MyDicomDb. The changes are highlighted in yellow below.

<forwardConfiguration175>
    <add productName="StorageServer" serviceName="L19_PACS_SCP32" connectionName="LeadStorageServer19_32" />
    <!--<add productName="StorageServer" serviceName="L19_PACS_SCP32" connectionName="MyDicomDb" />-->
  </forwardConfiguration175>

Save the changes to globalPacs.config, and close the file

Step 6: Restore the Forwarding Data Access Layer (Leadtools.Medical.Forward.DataAccessLayer ) to its original state:

Start Visual Studio
Open the Leadtools.Medical.Forward.DataAccessLayer project
Open the properties page
Remove TUTORIAL_CUSTOM_DATABASE from the Conditional compilation symbols
Rebuild Leadtools.Medical.Forward.DataAccessLayer.dll

Step 7: Remove the Configuration Assembly (My.Medical.Storage.Configuration.dll ) from the Configuration folder

Browse to the service configuration folder
- {LEAD Installation BIN}/{ServiceName}/ Configuration
- The default is C:\LEADTOOLS 20\Bin\Dotnet4\Win32\L19_PACS_SCP32\Configuration
Remove My.Medical.Storage.Configuration.dll from the configuration folder

Step 8: Verify that the Storage Server Manager is using the Shipping Database

Start CSStorageServerManagerDemo_Original.exe
Click the Search button, and you will see a patient from the original shipping database (JONES^JR^JOHN^L)
Click the Start Storage Service button to start the DICOM listening service
Start the CSDicomHighLevelClient demo, and verify that a patient exists from the original shipping database (JONES^JR^JOHN^L)
