Atmos Cloud Storage

(External Store Add-in)

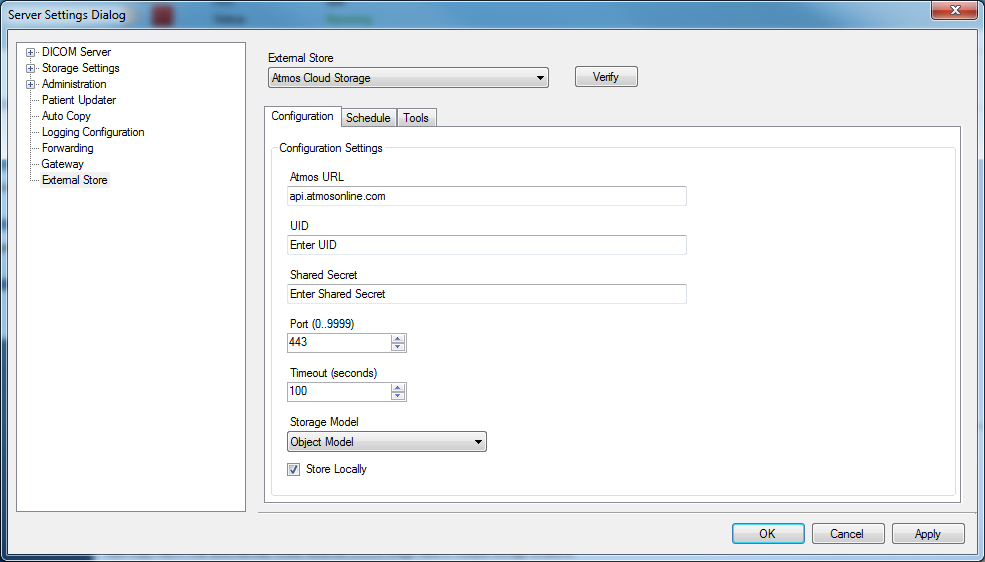

Select Atmos Cloud Storage in the External Store drop down to see the configuration options:

The following table explains each of the configuration options. After obtaining Atmos cloud storage credentials (UID and Shared Secret), configure the Atmos External store add-in and click the Apply button.

Setting	Value
Atmos URL	api.atmosonline.com
UID	You must obtain a UID from Atmos
Shared Secret	You must obtain a Shared Secret from Atmos
Port	443
Timeout	100
Storage Model	Object Model	The choices are Object Model Requires less cloud storage space than the NameSpace model Namespace Model Can store entire path to object (dataset) Requires more cloud storage space than the object model Can easily browse cloud using an Atmos Cloud browswer (i.e. AtmosFox Explorer Firefox add-in)
Store Locally	Checked	The choices are Checked When storing datasets (either through the Database Manager, or using a DICOM SCU Client demo), the DICOM datasets are initially stored locally, and not directly to the external store DICOM datasets are then configured to be stored on the cloud and cleaned locally through the external store scheduler options Unchecked When DICOM datasets are stored, they are copied directly to the cloud (and not copied to the local store)
