This tutorial shows how to create a C# Windows Console application that utilizes data extraction from a PDF417 barcode that follows the AAMVA specification using the LEADTOOLS SDK.
Overview | |
---|---|
Summary | This tutorial covers how to use LEADTOOLS AAMVA PDF417 SDK technology in a C# Windows Console application. |
Completion Time | 30 minutes |
Visual Studio Project | Download tutorial project (3 KB) |
Platform | Windows Console C# Application |
IDE | Visual Studio 2017, 2019 |
Development License | Download LEADTOOLS |
Try it in another language |
|
Before working on the Extract Driver's License AAMVA Barcode - Console C# tutorial, get familiar with the basic steps of creating a project by reviewing the Add References and Set a License tutorial.
Start with a copy of the project created in the Load and Save Images tutorial. If you don't have that project, follow the steps in that tutorial to create it.
If using NuGet references, this tutorial requires the following NuGet package:
Leadtools.Barcode
If local DLL references are used, the following DLLs are needed. The DLLs are located at <INSTALL_DIR>\LEADTOOLS21\Bin\Dotnet4\x64
:
Leadtools.dll
Leadtools.Barcode.dll
Leadtools.Barcode.PdfRead.dll
Leadtools.Codecs.dll
Leadtools.Codecs.Png.dll
For a complete list of which Codec DLLs are required for specific formats, refer to File Format Support.
The License unlocks the features needed for the project. It must be set before any toolkit function is called. For details, including tutorials for different platforms, refer to Setting a Runtime License.
There are two types of runtime licenses:
Note
Adding LEADTOOLS NuGet and local references and setting a license are covered in more detail in the Add References and Set a License tutorial.
Ensure that all of the necessary set license and loading code are added into the Windows Console C# application as covered in the Add References and Set a License and the Load and Save Images tutorials. Saving the image is not necessary in this tutorial, so comment out the according code.
With the project created, the references added, and the license set, coding can begin.
In the Solution Explorer, open Program.cs
. Add the following statements to the using block at the top.
// Using block at the top
using System;
using System.IO;
using Leadtools;
using Leadtools.Barcode;
using Leadtools.Codecs;
Add a new method called ExtractPDF417Data(RasterImage image)
and then call the new method in the Main
method. Add the below PDF417 AAMVA extraction code inside the new method. The method's parameter will be the RasterImage loaded in RasterImage image = LoadImage(@"C:\LEADTOOLS21\Resources\Images\license_sample_rear_aamva.png");
. For this tutorial use this AAMVA PDF417 sample image.
static void Main(string[] args)
{
SetLicense();
RasterImage image = LoadImage(@"C:\LEADTOOLS21\Resources\Images\license_sample_rear_aamva.png");
ExtractPDF417Data(image);
//SaveImage(image, @"C:\Temp\output.jpg");
Console.WriteLine("Press any key to exit...");
Console.ReadKey();
}
static void ExtractPDF417Data(RasterImage image)
{
// Create a Barcode engine
BarcodeEngine engine = new BarcodeEngine();
BarcodeData data = engine.Reader.ReadBarcode(image, LeadRect.Empty, BarcodeSymbology.PDF417);
if (data.Value != null && data.Symbology == BarcodeSymbology.PDF417)
{
AAMVAID id = BarcodeData.ParseAAMVAData(data.GetData(), false);
if (id != null)
{
Console.WriteLine("AAMVA PDF417 Barcode Found!\n" +
"===============================================");
Console.WriteLine($"Issuer Identification Number: {id.IssuerIdentificationNumber}\n" +
$"First Name: {id.FirstName.Value}\n" +
$"Last Name: {id.LastName.Value}\n" +
$"Over 21? {id.Over21}\n");
}
else
{
Console.WriteLine("Does not meet AAMVA specifications");
}
}
else
{
Console.WriteLine("PDF417 Barcode Not Found!");
}
}
Note
There are more properties inside the
AAMVAID
class, the snippet above showcases a few commonly used properties.
Run the project by pressing F5, or by selecting Debug -> Start Debugging.

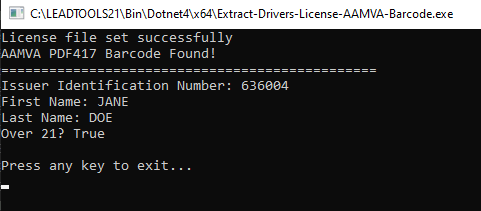

If the steps were followed correctly, the application runs and displays the data inside the PDF417 Barcode.
This tutorial showed how to use the BarcodeData
and AAMVAID
classes.
