This tutorial shows how to create a WinForms C# application that acquires an image from a TWAIN source.
Overview | |
---|---|
Summary | This tutorial covers how to leverage LEADTOOLS TWAIN SDK technology in a C# WinForms Application. |
Completion Time | 30 minutes |
Visual Studio Project | Download tutorial project (10 KB) |
Platform | WinForms C# Application |
IDE | Visual Studio 2017, 2019 |
Development License | Download LEADTOOLS |
Try it in another language |
|
Get familiar with the basic steps of creating a project by reviewing the Add References and Set a License and Display Images in an Image Viewer tutorials, before working on the Acquire an Image From TWAIN Source - WinForms C# tutorial.
In Visual Studio, create a new C# Windows Winforms project, and add the below necessary LEADTOOLS references.
The references needed depend upon the purpose of the project. References can be added by one or the other of the following two methods (but not both). For this project, the following references are needed:
If NuGet references are used, this tutorial requires the following NuGet packages:
Leadtools.Twain
Leadtools.Viewer.Controls.WinForms
If local DLL references are used, the following DLLs are needed. The DLLs are located at <INSTALL_DIR>\LEADTOOLS21\Bin\Dotnet4\x64
:
Leadtools.dll
Leadtools.Codecs.dll
Leadtools.Codecs.Cmp.dll
Leadtools.Codecs.Fax.dll
Leadtools.Codecs.Tif.dll
Leadtools.Controls.WinForms.dll
Leadtools.Drawing.dll
Leadtools.Twain.dll
For a complete list of which Codec DLLs are required for specific formats, refer to File Format Support.
The License unlocks the features needed for the project. It must be set before any toolkit function is called. For details including tutorials for different platforms, refer to Setting a Runtime License.
There are two types of runtime licenses:
Note
Adding LEADTOOLS NuGet and local references and setting a license are covered in more detail in Add References and Set a License tutorial.
With the project created, the references added, the license set, and the ImageViewer, load, and save code added, coding can begin.
In the Solution Explorer, double-click Form1.cs
to display the Designer. Right-click on the designer and select View Code
or press F7. This will bring up the code-behind the form. Add the following statements to the using
block at the top of Form1.cs
:
// Using block at the top
using System;
using System.IO;
using Leadtools;
using Leadtools.Codecs;
using Leadtools.Controls;
using Leadtools.Twain;
Add the below global variable:
// Add this global variable
private TwainSession _session;
Add the below code to the Form1_Load
event to initialize the TWAIN session.
private void Form1_Load(object sender, EventArgs e)
{
_viewer = new ImageViewer();
_viewer.Dock = DockStyle.Fill;
_viewer.BackColor = Color.DarkGray;
Controls.Add(_viewer);
_viewer.BringToFront();
// This will start the TWAIN session
_session = new TwainSession();
_session.Startup(this.Handle, "manufacturer", "productFamily", "version", "application", TwainStartupFlags.None);
}
In the Solution Explorer, double-click Form1.cs

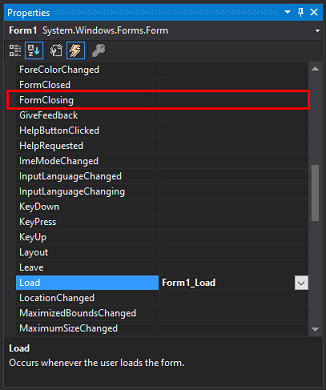

to bring up the Designer again. Click the Events icon in the Properties Windows. Then, double-click the FormClosing event handler if one does not already exist.
Add the following code inside the Form1_FormClosing
event handler to shutdown the TWAIN session.
private void Form1_FormClosing(object sender, FormClosingEventArgs e)
{
_session.Shutdown();
}
Open Form1.cs

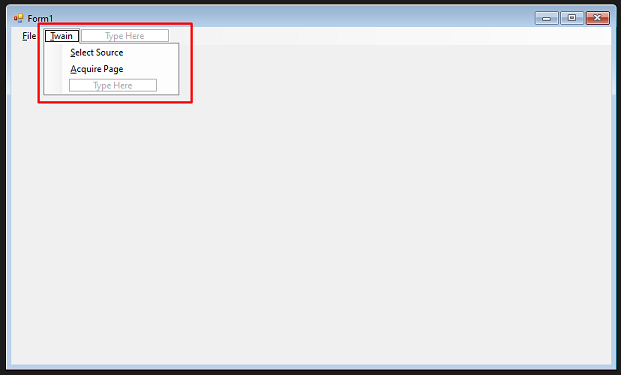

in the Solution Explorer and add a &Twain
dropdown menu, next to &File
. The menu strip creation is covered in the Display Images in an Image Viewer tutorial. In the &Twain
dropdown menu add the below menu items:
Text | Name |
---|---|
&Select Source | selectSourceToolStripMenuItem |
&Acquire Page | acquireImageToolStripMenuItem |
Double-click the newly added Select Source
menu item to add its event handler. Add the following code to select the TWAIN source.
private void selectSourceToolStripMenuItem_Click(object sender, EventArgs e)
{
_session.SelectSource(string.Empty);
}
Navigate back to the Form1.cs
Designer, and double-click the Acquire Image
menu item to add its event handler. Add the following code to have the application listen for a scanned image. Once a page is scanned the application will then acquire that image and load the image into the ImageViewer.
private void acquireImageToolStripMenuItem_Click(object sender, EventArgs e)
{
_session.AcquirePage += new EventHandler<TwainAcquirePageEventArgs>(_session_AcquirePage);
_session.Acquire(TwainUserInterfaceFlags.Show);
}
private void _session_AcquirePage(object sender, TwainAcquirePageEventArgs e)
{
// Set the scanned image in the ImageViewer
_viewer.Image = e.Image;
}

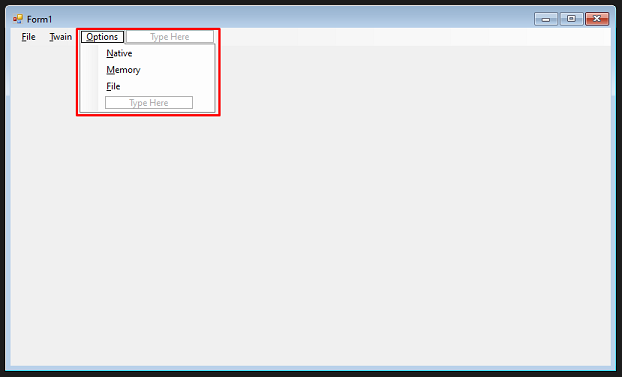

In the Designer, create another menu dropdown with text &Options
, next to &Twain
.
In the &Options
dropdown menu add the below menu items:
Text | Name |
---|---|
&Native | nativeToolStripMenuItem |
&Memory | memoryToolStripMenuItem |
&File | fileToolStripMenuItem1 |
Double-click the Native
menu item to add its event handler, then add the following code:
private void nativeToolStripMenuItem_Click(object sender, EventArgs e)
{
TwainCapability capability = new TwainCapability();
capability.Information.ContainerType = TwainContainerType.OneValue;
capability.Information.Type = TwainCapabilityType.ImageTransferMechanism;
capability.OneValueCapability.ItemType = TwainItemType.Uint16;
capability.OneValueCapability.Value = (UInt16)TwainTransferMechanism.Native;
_session.SetCapability(capability, TwainSetCapabilityMode.Set);
}
Open the Form's Designer and double-click the Memory
menu item to add its event handler, then add the following code:
private void memoryToolStripMenuItem_Click(object sender, EventArgs e)
{
TwainCapability capability = new TwainCapability();
capability.Information.ContainerType = TwainContainerType.OneValue;
capability.Information.Type = TwainCapabilityType.ImageTransferMechanism;
capability.OneValueCapability.ItemType = TwainItemType.Uint16;
capability.OneValueCapability.Value = (UInt16)TwainTransferMechanism.Memory;
_session.SetCapability(capability, TwainSetCapabilityMode.Set);
}
Open the Form's Designer and double-click the File
menu item to edit its event handler, then add the following code:
private void fileToolStripMenuItem1_Click(object sender, EventArgs e)
{
TwainCapability capability = new TwainCapability();
capability.Information.ContainerType = TwainContainerType.OneValue;
capability.Information.Type = TwainCapabilityType.ImageTransferMechanism;
capability.OneValueCapability.ItemType = TwainItemType.Uint16;
capability.OneValueCapability.Value = (UInt16)TwainTransferMechanism.File;
_session.SetCapability(capability, TwainSetCapabilityMode.Set);
}
Run the project by pressing F5, or by selecting Debug -> Start Debugging.
If the steps were followed correctly, the application will run. For testing, follow the below instructions:
This tutorial showed how to list the available TWAIN devices and acquire a scanned image from those devices. It also covered how to use the TwainSession
and TwainCapability
classes.
