ConvertBarcodeSplit - Python

This tutorial shows how to convert and split out barcodes from files using the LEADTOOLS Cloud Services in a Python application.

Overview
Summary	This tutorial covers how to make `ConvertBarcodeSplit` requests and process the results using the LEADTOOLS Cloud Services in a Python application.
Completion Time	30 minutes
Project	Download tutorial project (2 KB)
Platform	LEADTOOLS Cloud Services API
IDE	Visual Studio 2019
Language	Python
Development License	Download LEADTOOLS
Try it in another language	C#: .NET Core Python: Python Node.JS: Node.JS

Required Knowledge

Be sure to review the following sites for information about LEADTOOLS Cloud Services API.

Service Plans

LEADTOOLS Service Plan offerings:

Service Plan	Description
Free Trial	Free Evaluation
Page Packages	Prepaid Page Packs
Subscriptions	Prepaid Monthly Processed Pages

To further explore the offerings, refer to Pricing Information for LEADTOOLS Hosted Cloud Services > Service Plan Terms.

For pricing details, refer to https://www.leadtools.com/sdk/products/hosted-services#pricing > Page Packages and Subscriptions.

To obtain the necessary Application ID and Application Password, refer to Create an Account and Application with the LEADTOOLS Hosted Cloud Services.

Add the ConvertBarcodeSplit Code

With the project created and the requests package added, coding can begin.

In the Solution Explorer, open ConvertBarcodeSplit.py. Add the following variables at the top.

Note

Where it states Replace with Application ID and Replace with Application Password. be sure to place your Application ID and Password accordingly.

# Simple script to make and process the results of a ConvertBarcodeSplit request to the LEADTOOLS CloudServices.
import requests
import sys
import time

# Enums in python
from enum import Enum

class FormatsEnum(Enum):
    Png = 1
    Jpeg = 2
    Tiff = 3
    Pdf = 4
    Pdfa = 5
    PdfImage = 6
    PdfImageOverText = 7
    PdfaImageOverText = 8
    Docx = 9
    DocxFramed = 10
    Rtf = 11
    RtfFramed = 12
    Txt = 13
    TxtFramed = 14

servicesUrl = "https://azure.leadtools.com/api/"

# The application ID.
appId = "Replace with Application ID"

# The application password.
password = "Replace with Application Password"

# The first page in the file to mark for processing
firstPage = 1

# Sending a value of -1 will indicate to the services that the rest of the pages in the file should be processed.
lastPage = -1

# Enum corresponding to the output format for the file. For the purposes of this script, we will be converting a file to tif.
fileFormat = FormatsEnum.Tiff.value

splitOptions = 1 # Discard

# We will be uploading the file via a URl.  Files can also be passed by adding a PostFile to the request.  Only 1 file will be accepted per request.
# The services will use the following priority when determining what a request is trying to do GUID > URL > Request Body Content
fileURL = 'http://demo.leadtools.com/images/cloud_samples/barcode_split_sample.pdf'
baseConversionUrl = '{}Conversion/ConvertBarcodeSplit?firstPage={}&lastPage={}&format={}&fileurl={}&splitOptions={}'
formattedConversionUrl = baseConversionUrl.format(
    servicesUrl, firstPage, lastPage, fileFormat, fileURL, splitOptions)

Add a request.post call to process the ConvertBarcodeSplit request and capture the GUID from the resulting request.text and provide it to the next section. This sends an ConvertBarcodeSplit request to the LEADTOOLS Cloud Services API, if successful, a unique identifier (GUID) will be returned and then a query using this GUID will be made.

request = requests.post(formattedConversionUrl, auth=(appId, password))

# If uploading a file alongside the HTTP request
# baseConversionUrl ='{}Conversion/ConvertBarcodeSplit?firstPage={}&lastPage={}&format={}&splitOptions={}'
# formattedConversionUrl = baseConversionUrl.format(
#    servicesUrl,firstPage, lastPage, fileFormat, splitOptions)
# file = {'file' : open("path\to\file", 'rb')}
# request = requests.post(
#    formattedConversionUrl, auth=(appId, password), files = file)

if request.status_code != 200:
    print("Error sending the conversion request")
    print(request.text)
    sys.exit()

# Grab the GUID from the Request
guid = request.text
print("Unique ID returned by the services: " + guid + "\n")

Next, create a Query request that utilizes the GUID provided by ConvertBarcodeSplit request. If successful the response will contain all the request data in JSON format.

# Now, we need to Query the results
print("Now Querying Results....")
baseQueryUrl = '{}Query?id={}'
formattedQueryUrl = baseQueryUrl.format(servicesUrl, guid)

while True:  # Poll the services to determine if the request has finished processing
    request = requests.post(formattedQueryUrl, auth=(appId, password))
    returnedData = request.json()
    if returnedData['FileStatus'] != 100 and returnedData['FileStatus'] != 123:
        break
    time.sleep(5)

print("File finished processing with file status: " +
      str(returnedData['FileStatus']))

if returnedData['FileStatus'] != 200:
    sys.exit()

Finally, parse the json data into a readable format.

try:
    print("Results:")
    returnedJson = returnedData['RequestData']
    for requestObject in returnedJson:
        print("Service Type: " + requestObject['ServiceType'])
        if requestObject['ServiceType'] == 'Conversion':
            print("Returned URLS:")
            for url in requestObject['data']['Urls']:
                print(url)
except Exception as e:
    print("Failed to Parse JSON")
    print(e)

Run the Project

Run the project by pressing F5, or by selecting Debug -> Start Debugging.

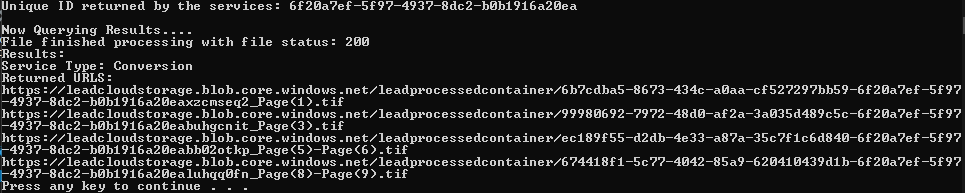

If the steps were followed correctly, the console appears and the application displays links to the converted and split barcodes from the returned JSON data.

Wrap-up

This tutorial showed how to convert and split out barcodes via the LEADTOOLS Cloud Services API.
