Load(Stream,long,long) Method

Summary
Loads an image file, letting you specify the location of the image data within the stream.
Syntax
C#
C++/CLI
Python
public RasterImage Load(
   Stream stream,
   long offset,
   long count
)
public:
RasterImage^ Load(
   Stream^ stream,
   int64 offset,
   int64 count
)
def Load(self,stream,offset,count):

Parameters

stream
A Stream containing the image data to load.

offset
Offset from the beginning of the stream at which loading should start.

count
Total size of the image file data.

Return Value

The RasterImage object that this method loads.

Remarks

This method can be used to load an image file that is embedded in another stream.

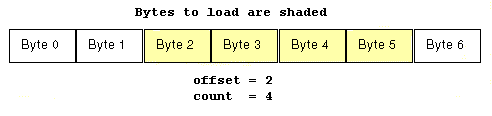

The location of the image is specified as shown in the following simple illustration:


LEADTOOLS will attempt to load corrupted files so you can see at least a portion of the image. For these images, the load methods succeed, but LoadStatus will return an error code.

This method will load all the pages in a multipage file. The resulting image will have the same bits/pixel and color order value of the image as it was stored in the file.

LEADTOOLS will attempt to load corrupted files so you can see at least a portion of the image. For these images, the load methods succeed, but LoadStatus will return an error code.

Use the CodecsLoadOptions class to set up other load option parameters before calling this method.

Support for 12 and 16-bit grayscale, and 48 and 64-bit color images is only available in the Document/Medical Imaging editions.

For supported formats, refer to Summary of All Supported File Formats.

LEADTOOLS loads all PDF files as Raster PDF uncompressed RasterImageFormat.RasPdf, regardless of the compression and color space used when saving the file.

The CodecsLoadOptions.AllPages property controls whether RasterCodecs will try to load all pages or just the first page if the image data contains multiple pages.

Example

This example will load an image located in an offset into a stream

C#
Java
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.Color;
using Leadtools.Svg;



public void LoadStreamOffset1Example()
{
   RasterCodecs codecs = new RasterCodecs();

   string srcFileName = Path.Combine(LEAD_VARS.ImagesDir, "Image1.cmp");
   string destFileName = Path.Combine(LEAD_VARS.ImagesDir, "Image1_LoadStreamOffset1.bmp");

   // Create a memory stream, add a custom header then copy the content of the file
   // into this stream.  After that, load the image from the stream given the offset

   MemoryStream ms = new MemoryStream();

   // Add some custom header to the stream (4 bytes)
   int headerSize = 4;
   for (int i = 0; i < headerSize; i++)
      ms.WriteByte(0);

   // Now append the file into this stream
   FileStream fs = File.OpenRead(srcFileName);

   const int bufferSize = 1024;
   byte[] buffer = new byte[bufferSize];
   int bytesRead;
   do
   {
      bytesRead = fs.Read(buffer, 0, bufferSize);
      if (bytesRead > 0)
         ms.Write(buffer, 0, bytesRead);
   }
   while (bytesRead > 0);

   fs.Close();

   // Reset the memory stream position to the beginning
   ms.Position = 0;

   // Now load the image with the offset
   long offset = headerSize;
   long count = ms.Length - headerSize;
   RasterImage image = codecs.Load(ms, offset, count);

   // Save this image back to disk
   codecs.Save(image, destFileName, RasterImageFormat.Bmp, 24);
   image.Dispose();

   // Clean up
   codecs.Dispose();
}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}

import java.io.*;
import java.net.*;
import java.nio.file.Paths;
import java.util.*;
import java.time.Instant;
import java.time.Duration;

import org.junit.*;
import org.junit.runner.JUnitCore;
import org.junit.runner.Result;
import org.junit.runner.notification.Failure;
import static org.junit.Assert.*;

import leadtools.*;
import leadtools.codecs.*;
import leadtools.codecs.RasterCodecs.FeedCallbackThunk;
import leadtools.drawing.internal.*;
import leadtools.imageprocessing.*;
import leadtools.imageprocessing.color.ChangeIntensityCommand;
import leadtools.svg.*;


public void loadStreamOffset1Example() throws IOException {
   final String LEAD_VARS_IMAGES_DIR = "C:\\LEADTOOLS23\\Resources\\Images";
   RasterCodecs codecs = new RasterCodecs();

   String srcFileName = combine(LEAD_VARS_IMAGES_DIR, "Image1.cmp");
   String destFileName = combine(LEAD_VARS_IMAGES_DIR, "Image1_LoadStreamOffset1.bmp");

   // Create a memory stream, add a custom header then copy the content of the file
   // into this stream. After that, load the image from the stream given the offset

   // Add some custom header to the stream (4 bytes)
   int headerSize = 4;

   // Now append the file into this stream
   ILeadStream fs = LeadStreamFactory.create(srcFileName);
   long offset = headerSize;
   long count = fs.toInputStream().available() - headerSize;
   RasterImage image = codecs.load(fs, offset, count);

   // Save this image back to disk
   codecs.save(image, destFileName, RasterImageFormat.BMP, 24);
   image.dispose();
   assertTrue("File unsuccessfully saved to" + destFileName, (new File(destFileName)).exists());
   System.out.println("File is saved to" + destFileName);

   // Clean up
   codecs.dispose();
}
