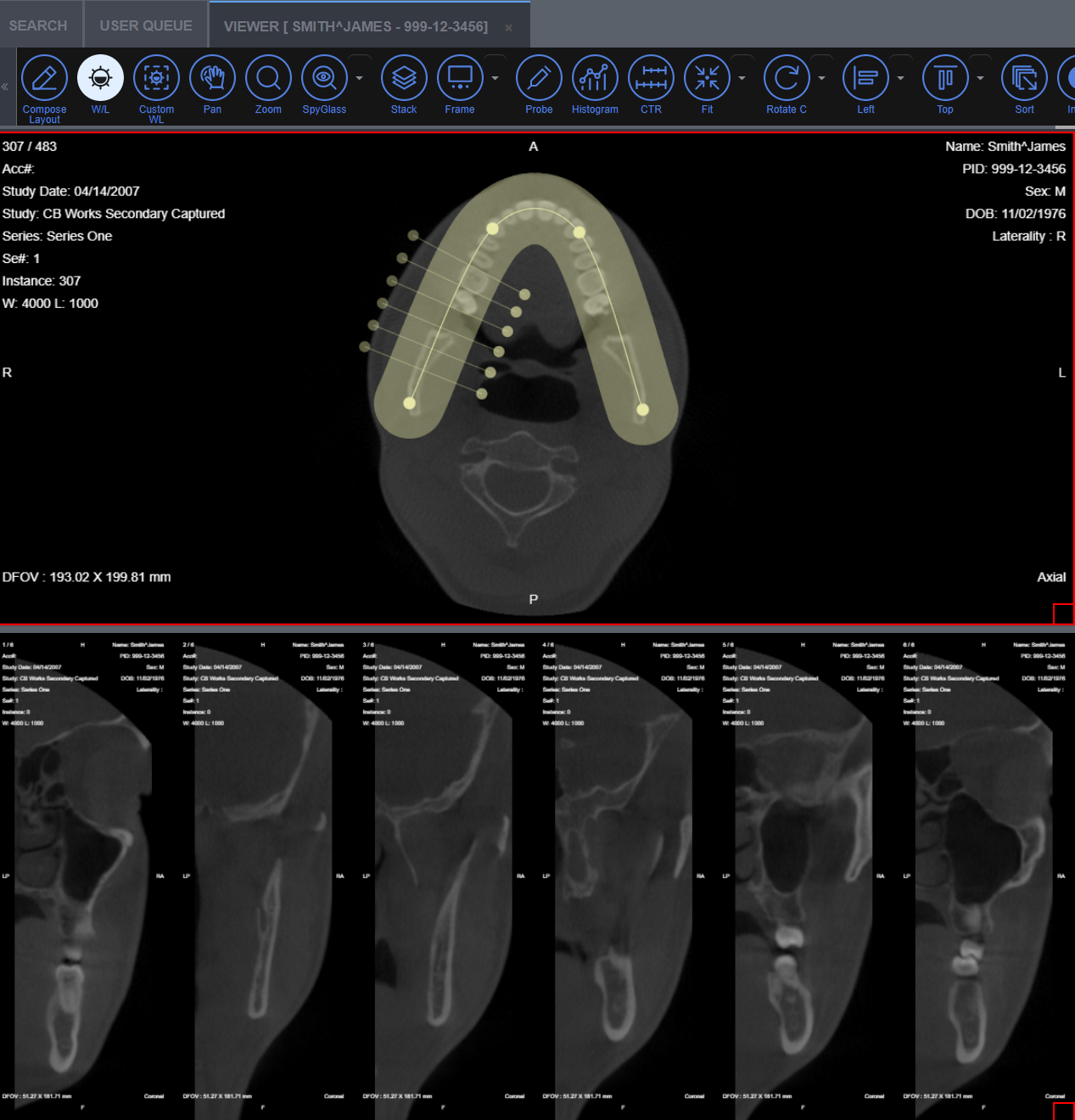

ParaxialSlice Object

import { MedicalViewer_MultiFrame_Example } from "../MedicalViewer_MultiFrame_Example";
export class ParaxialSlice_Example {
    constructor() {
        var _this = this;
        this.run = function (medicalViewer, authenticationCode) {
            _this.medicalViewer = medicalViewer;
            // we are going to get the cell that contains the polygon in order to generate the panoramic cell.
            var cell = _this.medicalViewer.layout.cells.get_item(0);
            var _frame = cell.frames.get_item(cell.currentOffset);
            var engine3D = new lt.Controls.Medical.Object3DEngine(cell.divID + "_3D_Volume");
            engine3D.info = _this.fillVolumeInfo(cell);
            var panoramicPolygon = new lt.Controls.Medical.PanoramicPolygon(cell);
            cell.drawables["PanoramicPolygon"] = panoramicPolygon;
            panoramicPolygon.points.add(lt.LeadPointD.create(128, 300));
            panoramicPolygon.points.add(lt.LeadPointD.create(300, 128));
            panoramicPolygon.refresh();
            var paraxialCell = new lt.Controls.Medical.Derivative3D(cell.viewer, cell, cell.divID + "_ParaxialSlices", 1, 1);
            cell.viewer.layout.cells.add(paraxialCell);
            cell.drawables["PanoramicPolygon"] = panoramicPolygon;
            // this is the service name that will do the server side rendering.
            var threed = "https://medicaldemos.leadtools.com/MedicalViewerServiceAsp22/api/threed/";
            engine3D.add_request3DData(function (sender, args) {
                switch (args.type) {
                    case lt.Controls.Medical.Requested3DDataType.creationProgress:
                        {
                            var request3DDataPost = new XMLHttpRequest();
                            request3DDataPost.onreadystatechange = function (data) {
                                if (this.readyState == 4 && this.status == 200) {
                                    var percent = parseInt(JSON.parse(this.responseText));
                                    if (engine3D.progress != 100)
                                        engine3D.progress = percent;
                                }
                            };
                            request3DDataPost.open("POST", threed + "CheckProgress", true);
                            request3DDataPost.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');
                            var progressSettings = {
                                authenticationCookie: authenticationCode,
                                id: engine3D.id
                            };
                            request3DDataPost.send(JSON.stringify(progressSettings));
                        }
                        break;
                    case lt.Controls.Medical.Requested3DDataType.create3DObject:
                        {
                            var request3DDataPost = new XMLHttpRequest();
                            ;
                            request3DDataPost.open("POST", threed + "Create3DObject", true);
                            request3DDataPost.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');
                            var seriesInstanceUID = "1.3.12.2.1107.5.1.4.50772.30000009122208215356200001997";
                            var create3DOptions = {
                                authenticationCookie: authenticationCode,
                                options: { PatientsOptions: {}, SeriesOptions: { SeriesInstanceUID: seriesInstanceUID }, StudiesOptions: {} },
                                id: engine3D.id,
                                renderingType: 0,
                                extraOptions: { UserData2: "1.3.12.2.1107.5.1.4.50772.30000009122208215356200002253" }
                            };
                            request3DDataPost.send(JSON.stringify(create3DOptions));
                        }
                        break;
                    case lt.Controls.Medical.Requested3DDataType.delete3DObject:
                        {
                            var request3DDataPost = new XMLHttpRequest();
                            request3DDataPost.onreadystatechange = function (data) { };
                            request3DDataPost.open("POST", threed + "End3DObject", true);
                            request3DDataPost.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');
                            var endObjectSettings = {
                                authenticationCookie: authenticationCode,
                                id: engine3D.id
                            };
                            request3DDataPost.send(JSON.stringify(endObjectSettings));
                        }
                    case lt.Controls.Medical.Requested3DDataType.none:
                        {
                            var request3DDataPost = new XMLHttpRequest();
                            var json = JSON.parse(args.JSON);
                            var widthCurve = json['widthCurve'];
                            var heightCurve = json['heightCurve'];
                            var polygonInfo = JSON.stringify(json['polygonInfo']);
                            var generateSliceData = {
                                authenticationCookie: authenticationCode,
                                id: engine3D.id,
                                widthCurve: widthCurve,
                                heightCurve: heightCurve,
                                polygonInfo: polygonInfo
                            };
                            request3DDataPost.onreadystatechange = function (result) {
                                if (this.readyState == 4 && this.status == 200) {
                                    var url = this.responseText;
                                    args.get_frame().URI = threed + "Get3DSlice?auth=" + encodeURIComponent(authenticationCode) + "&url=" + url + "&fileName=";
                                }
                            };
                            request3DDataPost.open("POST", threed + "Generate3DSlice", true);
                            request3DDataPost.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');
                            request3DDataPost.send(JSON.stringify(generateSliceData));
                        }
                        break;
                }
            });
            engine3D.add_statusChanged(function (sender, args) {
                switch (args.status) {
                    case lt.Controls.Medical.Object3DStatus.ready:
                        var info = _frame.information.clone();
                        var length = 3;
                        var frames = [];
                        for (var index = 0; index < length; index++) {
                            var sliceFrame = new lt.Controls.Medical.SliceFrame(paraxialCell, paraxialCell.engine);
                            paraxialCell.frames.add(sliceFrame);
                            frames.add(sliceFrame);
                            if (info != null)
                                sliceFrame.information = info.clone();
                        }
                        paraxialCell.beginUpdate();
                        paraxialCell.arrangement = lt.Controls.Medical.FrameArrangement.grid;
                        paraxialCell.gridLayout.rows = 1;
                        paraxialCell.gridLayout.columns = paraxialCell.frames.count;
                        paraxialCell.endUpdate();
                        panoramicPolygon.createSlice(frames, cell.selectedItem, lt.LeadPointD.create(214, 214), 25, 100);
                        panoramicPolygon.refresh();
                        cell.invalidate(lt.LeadRectD.empty);
                        break;
                }
            });
            paraxialCell.engine = engine3D;
            engine3D.start("", cell.studyInstanceUID, cell.seriesInstanceUID);
            var action = new lt.Controls.Medical.Cursor3DAction();
            cell.setCommand(0, action);
            cell.runCommand(0);
        };
        this.fillVolumeInfo = function (cell) {
            if (!cell)
                return;
            if (!cell.frames || (cell.frames.count < 2))
                return;
            var firstFrame = cell.frames.get_item(0);
            var lastFrame = cell.frames.get_item(cell.frames.count - 1);
            var width = firstFrame.width;
            var height = firstFrame.height;
            var rowspacing = firstFrame.rowSpacing;
            var colSpacing = firstFrame.columnSpacing;
            var firstPosition = lt.Controls.Medical.LeadPoint3D.create(firstFrame.imagePosition[0], firstFrame.imagePosition[1], firstFrame.imagePosition[2]);
            var lastPostion = lt.Controls.Medical.LeadPoint3D.create(lastFrame.imagePosition[0], lastFrame.imagePosition[1], lastFrame.imagePosition[2]);
            var orientation = firstFrame.imageOrientation;
            return new lt.Controls.Medical.Volume3DInformation(orientation, firstPosition, lastPostion, rowspacing, colSpacing, width, height);
        };
        this.viewerExample = new MedicalViewer_MultiFrame_Example(this.run);
    }
}

export class MedicalViewer_MultiFrame_Example {
   // LEADTOOLS ImageViewer to be used with this example
   protected medicalViewer: lt.Controls.Medical.MedicalViewer = null;
   // Generic state value used by the examples
   public timesClicked: number = 0;
   public authenticationCode: string = "";

   constructor(callback?: (medicalViewer: lt.Controls.Medical.MedicalViewer, authenticationCode: string) => void) {
      // Set the LEADTOOLS license. Replace this with your actual license file
      lt.RasterSupport.setLicenseUri("https://demo.leadtools.com/licenses/js/LEADTOOLSEVAL.txt", "EVAL", null);

      // Create an image viewer inside the imageViewerDiv element
      const imageViewerDiv: HTMLDivElement = <HTMLDivElement>document.getElementById("imageViewerDiv");
      const createOptions: lt.Controls.ImageViewerCreateOptions = new lt.Controls.ImageViewerCreateOptions(imageViewerDiv);



      var aspPath = "https://medicaldemos.leadtools.com/MedicalViewerServiceAsp22/";

      this.medicalViewer = new lt.Controls.Medical.MedicalViewer(imageViewerDiv, 2, 2);
      this.medicalViewer.onSizeChanged();

      var cell = new lt.Controls.Medical.Cell(this.medicalViewer, null, 1, 1);

      // Set the show border to "true", to show a border around the cell.
      cell.set_showFrameBorder(true);

      // Add the cell to the viewer.
      this.medicalViewer.layout.get_items().add(cell);

      // [optional] Select the cell (it can also be selected by clicking on it.)
      cell.set_selected(true);

      cell.fullDownload = false;
      cell.marginFramesCount = 3;

      var self = this;

      // we are now going to to download an image from leadtools medical viewer demo web site, you need to change this to download images from your database.
      var xhttp = new XMLHttpRequest();
      xhttp.onreadystatechange = function (data) {
         if (this.readyState == 4 && this.status == 200) {
            // here we got the authentication Code that we need to retrieve the images from leadtools database.

            self.authenticationCode = this.responseText;
            var encodedAuthenticationCode = self.authenticationCode;

            // we get here the object retrieve address that points to a service that retireves the information and the images from the server.
            var objectRetrieveAddress = aspPath + "api/retrieve";
            var objectRetrieveQueryAddress = aspPath + "api/query";

            var studyInstanceUID = "1.3.12.2.1107.5.1.4.50772.30000009122208074910900000022";
            // this is the series instance UID that contains all the frames that will be retrieved.
            var seriesInstanceUID = "1.3.12.2.1107.5.1.4.50772.30000009122208215356200001997"

            cell.seriesInstanceUID = seriesInstanceUID;
            cell.studyInstanceUID = studyInstanceUID;

            // we are generating the address for retrieving the instances information.
            var queryArchive = objectRetrieveQueryAddress;
            queryArchive += "/FindInstances";


            var getStackRequest = new XMLHttpRequest();
            getStackRequest.onreadystatechange = function (data) {
               if (this.readyState == 4 && this.status == 200) {
                  var json = JSON.parse(this.responseText);

                  var instanceIndex = 0;

                  // if instance count is zero, then the study doesn't exist on the server.
                  var instanceCount = json.length;


                  // add frames based on the size of the number of instances.
                  for (instanceIndex = 0; instanceIndex < instanceCount; instanceIndex++) {
                     var cellFrame = new lt.Controls.Medical.Frame(cell);
                     cell.get_frames().add(cellFrame);
                  }

                  // loop through every frame, and prepare the data.
                  for (instanceIndex = 0; instanceIndex < instanceCount; instanceIndex++) {

                     cellFrame = cell.get_frames().get_item(instanceIndex);

                     var pageInfo = json[instanceIndex].Pages[0];

                     cellFrame.imagePosition = pageInfo.ImagePositionPatientArray;

                     cellFrame.imageOrientation = pageInfo.ImageOrientationPatientArray;


                     if (pageInfo.PixelSpacingPatientArray != null && pageInfo.PixelSpacingPatientArray.length == 2) {
                        cellFrame.set_rowSpacing(parseFloat(pageInfo.PixelSpacingPatientArray[1]));
                        cellFrame.set_columnSpacing(parseFloat(pageInfo.PixelSpacingPatientArray[0]));
                     }


                     // now, this is the MRTI info that contains the image information, width, height, tiles....etc.
                     var mrtiInfo = new lt.Controls.Medical.MRTIImage();

                     // The image dpi.
                     mrtiInfo.fullDpi = lt.LeadSizeD.create(150, 150);

                     // the tile size, recommended value is 256
                     mrtiInfo.tileSize = lt.LeadSizeD.create(512, 512);
                     mrtiInfo.frameIndex = 0;

                     // does this image support window leve.
                     mrtiInfo.supportWindowLevel = true;


                     // different resolution for the image.
                     var resolutions = [{ "width": 512, "height": 512 }, { "width": 256, "height": 256 }, { "width": 128, "height": 128 }, { "width": 64, "height": 64 }];
                     mrtiInfo.resolutions = [];
                     for (var i = 0; i < resolutions.length; i++) {
                        mrtiInfo.resolutions[i] = lt.LeadSizeD.create(resolutions[i].width, resolutions[i].height);
                     }

                     // the image width and height.
                     cellFrame.set_width(mrtiInfo.resolutions[0].width);
                     cellFrame.set_height(mrtiInfo.resolutions[0].height);

                     // the image full size.
                     mrtiInfo.fullSize = lt.LeadSizeD.create(cellFrame.get_width(), cellFrame.get_height());

                     // now we need the image URL,
                     var imageUri = objectRetrieveAddress;
                     imageUri += "/GetImageTile?auth=";
                     imageUri += encodedAuthenticationCode;
                     // this the image instance UID, change this if you want to retrieve anything else.
                     imageUri += "&instance=" + json[instanceIndex].SOPInstanceUID;


                     mrtiInfo.imageUri = imageUri;

                     // set this info to the cell frame.
                     cellFrame.mrtiInfo = mrtiInfo;


                     // now we need to set the information for the image so we can do window level.
                     var imageInfo = new lt.Controls.Medical.DICOMImageInformation();


                     // set the image width and height.
                     imageInfo.width = 512;
                     imageInfo.height = 512;

                     // bits per pixel for the image
                     imageInfo.bitsPerPixel = 16;
                     // low and high bit.
                     imageInfo.lowBit = 0;
                     imageInfo.highBit = 11;

                     // other information, setting some of them to zero means that the toolkit will try and calculate it by itself, but you can always get those values from the DicomDataSet.
                     imageInfo.autoScaleIntercept = -1024;
                     imageInfo.autoScaleSlope = 1;
                     imageInfo.minValue = 0;
                     imageInfo.maxValue = 0;
                     imageInfo.windowWidth = 200;
                     imageInfo.windowCenter = 40;
                     imageInfo.signed = false;
                     imageInfo.photometricInterpretation = 'MONOCHROME2';
                     imageInfo.firstStoredPixelValueMapped = 0;

                     // set these information to the frame.

                     cellFrame.set_information(imageInfo);
                  }

                  // scroll to the middle of the series.
                  cell.currentOffset = instanceCount >> 1;
               }
            }

            getStackRequest.open("POST", queryArchive, true);
            getStackRequest.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');

            var queryParams =
            {
               "PatientsOptions": {},
               "StudiesOptions": {},
               "SeriesOptions": { "SeriesInstanceUID": seriesInstanceUID }
            };


            var findInstanceData = {
               authenticationCookie: encodedAuthenticationCode,
               options: queryParams,
               extraOptions: { UserData2: "" }
            };


            getStackRequest.send(JSON.stringify(findInstanceData));


         }
      };

      // We are trying here to get an image from the Leadtools database, we need to login and get the authentication code.
      xhttp.open("POST", "https://medicaldemos.leadtools.com/MedicalViewerServiceAsp22/api/auth/AuthenticateUser", true);
      xhttp.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');
      // we log in as a 'guest', after calling the below line, we will receive the authentication code sent via 'onreadystatechange' above.
      xhttp.send(JSON.stringify({ userName: 'guest', password: 'guest', userData: '' }));

      const exampleButton = document.getElementById("exampleButton");
      exampleButton.addEventListener("click", () => {
         this.timesClicked++;
         // Run the example
         if (callback)
            callback(this.medicalViewer, this.authenticationCode);
      });
   }
}

export class MedicalViewer_MultiFrame_Example {
    constructor(callback) {
        var _this = this;
        // LEADTOOLS ImageViewer to be used with this example
        this.medicalViewer = null;
        // Generic state value used by the examples
        this.timesClicked = 0;
        this.authenticationCode = "";
        // Set the LEADTOOLS license. Replace this with your actual license file
        lt.RasterSupport.setLicenseUri("https://demo.leadtools.com/licenses/js/LEADTOOLSEVAL.txt", "EVAL", null);
        // Create an image viewer inside the imageViewerDiv element
        var imageViewerDiv = document.getElementById("imageViewerDiv");
        var createOptions = new lt.Controls.ImageViewerCreateOptions(imageViewerDiv);
        var aspPath = "https://medicaldemos.leadtools.com/MedicalViewerServiceAsp22/";
        this.medicalViewer = new lt.Controls.Medical.MedicalViewer(imageViewerDiv, 2, 2);
        this.medicalViewer.onSizeChanged();
        var cell = new lt.Controls.Medical.Cell(this.medicalViewer, null, 1, 1);
        // Set the show border to "true", to show a border around the cell.
        cell.set_showFrameBorder(true);
        // Add the cell to the viewer.
        this.medicalViewer.layout.get_items().add(cell);
        // [optional] Select the cell (it can also be selected by clicking on it.)
        cell.set_selected(true);
        cell.fullDownload = false;
        cell.marginFramesCount = 3;
        var self = this;
        // we are now going to to download an image from leadtools medical viewer demo web site, you need to change this to download images from your database.
        var xhttp = new XMLHttpRequest();
        xhttp.onreadystatechange = function (data) {
            if (this.readyState == 4 && this.status == 200) {
                // here we got the authentication Code that we need to retrieve the images from leadtools database.
                self.authenticationCode = this.responseText;
                var encodedAuthenticationCode = self.authenticationCode;
                // we get here the object retrieve address that points to a service that retireves the information and the images from the server.
                var objectRetrieveAddress = aspPath + "api/retrieve";
                var objectRetrieveQueryAddress = aspPath + "api/query";
                var studyInstanceUID = "1.3.12.2.1107.5.1.4.50772.30000009122208074910900000022";
                // this is the series instance UID that contains all the frames that will be retrieved.
                var seriesInstanceUID = "1.3.12.2.1107.5.1.4.50772.30000009122208215356200001997";
                cell.seriesInstanceUID = seriesInstanceUID;
                cell.studyInstanceUID = studyInstanceUID;
                // we are generating the address for retrieving the instances information.
                var queryArchive = objectRetrieveQueryAddress;
                queryArchive += "/FindInstances";
                var getStackRequest = new XMLHttpRequest();
                getStackRequest.onreadystatechange = function (data) {
                    if (this.readyState == 4 && this.status == 200) {
                        var json = JSON.parse(this.responseText);
                        var instanceIndex = 0;
                        // if instance count is zero, then the study doesn't exist on the server.
                        var instanceCount = json.length;
                        // add frames based on the size of the number of instances.
                        for (instanceIndex = 0; instanceIndex < instanceCount; instanceIndex++) {
                            var cellFrame = new lt.Controls.Medical.Frame(cell);
                            cell.get_frames().add(cellFrame);
                        }
                        // loop through every frame, and prepare the data.
                        for (instanceIndex = 0; instanceIndex < instanceCount; instanceIndex++) {
                            cellFrame = cell.get_frames().get_item(instanceIndex);
                            var pageInfo = json[instanceIndex].Pages[0];
                            cellFrame.imagePosition = pageInfo.ImagePositionPatientArray;
                            cellFrame.imageOrientation = pageInfo.ImageOrientationPatientArray;
                            if (pageInfo.PixelSpacingPatientArray != null && pageInfo.PixelSpacingPatientArray.length == 2) {
                                cellFrame.set_rowSpacing(parseFloat(pageInfo.PixelSpacingPatientArray[1]));
                                cellFrame.set_columnSpacing(parseFloat(pageInfo.PixelSpacingPatientArray[0]));
                            }
                            // now, this is the MRTI info that contains the image information, width, height, tiles....etc.
                            var mrtiInfo = new lt.Controls.Medical.MRTIImage();
                            // The image dpi.
                            mrtiInfo.fullDpi = lt.LeadSizeD.create(150, 150);
                            // the tile size, recommended value is 256
                            mrtiInfo.tileSize = lt.LeadSizeD.create(512, 512);
                            mrtiInfo.frameIndex = 0;
                            // does this image support window leve.
                            mrtiInfo.supportWindowLevel = true;
                            // different resolution for the image.
                            var resolutions = [{ "width": 512, "height": 512 }, { "width": 256, "height": 256 }, { "width": 128, "height": 128 }, { "width": 64, "height": 64 }];
                            mrtiInfo.resolutions = [];
                            for (var i = 0; i < resolutions.length; i++) {
                                mrtiInfo.resolutions[i] = lt.LeadSizeD.create(resolutions[i].width, resolutions[i].height);
                            }
                            // the image width and height.
                            cellFrame.set_width(mrtiInfo.resolutions[0].width);
                            cellFrame.set_height(mrtiInfo.resolutions[0].height);
                            // the image full size.
                            mrtiInfo.fullSize = lt.LeadSizeD.create(cellFrame.get_width(), cellFrame.get_height());
                            // now we need the image URL,
                            var imageUri = objectRetrieveAddress;
                            imageUri += "/GetImageTile?auth=";
                            imageUri += encodedAuthenticationCode;
                            // this the image instance UID, change this if you want to retrieve anything else.
                            imageUri += "&instance=" + json[instanceIndex].SOPInstanceUID;
                            mrtiInfo.imageUri = imageUri;
                            // set this info to the cell frame.
                            cellFrame.mrtiInfo = mrtiInfo;
                            // now we need to set the information for the image so we can do window level.
                            var imageInfo = new lt.Controls.Medical.DICOMImageInformation();
                            // set the image width and height.
                            imageInfo.width = 512;
                            imageInfo.height = 512;
                            // bits per pixel for the image
                            imageInfo.bitsPerPixel = 16;
                            // low and high bit.
                            imageInfo.lowBit = 0;
                            imageInfo.highBit = 11;
                            // other information, setting some of them to zero means that the toolkit will try and calculate it by itself, but you can always get those values from the DicomDataSet.
                            imageInfo.modalityIntercept = -1024;
                            imageInfo.modalitySlope = 1;
                            imageInfo.minValue = 0;
                            imageInfo.maxValue = 0;
                            imageInfo.windowWidth = 200;
                            imageInfo.windowCenter = 40;
                            imageInfo.signed = false;
                            imageInfo.photometricInterpretation = 'MONOCHROME2';
                            imageInfo.firstStoredPixelValueMapped = 0;
                            // set these information to the frame.
                            cellFrame.set_information(imageInfo);
                        }
                        // scroll to the middle of the series.
                        cell.currentOffset = instanceCount >> 1;
                    }
                };
                getStackRequest.open("POST", queryArchive, true);
                getStackRequest.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');
                var queryParams = {
                    "PatientsOptions": {},
                    "StudiesOptions": {},
                    "SeriesOptions": { "SeriesInstanceUID": seriesInstanceUID }
                };
                var findInstanceData = {
                    authenticationCookie: encodedAuthenticationCode,
                    options: queryParams,
                    extraOptions: { UserData2: "" }
                };
                getStackRequest.send(JSON.stringify(findInstanceData));
            }
        };
        // We are trying here to get an image from the Leadtools database, we need to login and get the authentication code.
        xhttp.open("POST", "https://medicaldemos.leadtools.com/MedicalViewerServiceAsp22/api/auth/AuthenticateUser", true);
        xhttp.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');
        // we log in as a 'guest', after calling the below line, we will receive the authentication code sent via 'onreadystatechange' above.
        xhttp.send(JSON.stringify({ userName: 'guest', password: 'guest', userData: '' }));
        var exampleButton = document.getElementById("exampleButton");
        exampleButton.addEventListener("click", function () {
            _this.timesClicked++;
            // Run the example
            if (callback)
                callback(_this.medicalViewer, _this.authenticationCode);
        });
    }
}
