LeadFillMode Enumeration

Summary
Specifies how a polygonal shape with crossing lines is filled.
Syntax
C#
VB
C++
Java
public enum LeadFillMode
Public Enum LeadFillMode
public enum LeadFillMode
public enum class LeadFillMode
Members
ValueMemberDescription
0AlternateThe filled area includes the area between odd-numbered and even-numbered polygon sides on each scan line.
1WindingAll pixels that are inside the resulting exterior lines are filled.
Remarks

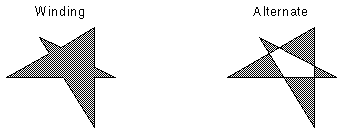

The following figure describes how fill mode is used:

Fill Mode
Example

For an example, refer to AddPolygonToRegion.

Requirements

Target Platforms

See Also

Reference

Leadtools Namespace
