LDicomDS::GetParentElement

#include "Ltdic.h"

pDICOMELEMENT LDicomDS::GetParentElement(pElement)

Returns a pointer to the item in the Data Set that contains the parent of the specified item.

Parameters

pDICOMELEMENT pElement

Pointer to a DICOMELEMENT structure that contains an item in the Data Set.

Returns

Value	Meaning
!NULL	A pointer to a DICOMELEMENT structure that contains the item in the Data Set that is the parent of the item specified in pElement.
NULL	pElement has no parent. (pElement is a Level 0 item.)

Comments

The parent is the ancestor one level higher than the specified item. If the specified item is a Level 0 item, this function will return NULL.

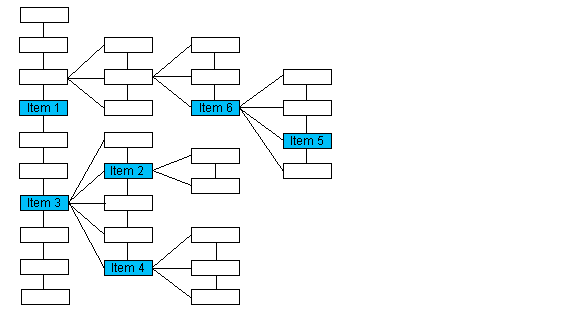

NOTE: The numbering of the items in this illustration is arbitrary and does not imply order.

$image\GetPrnt.gif$

The following functions will also help you navigate the Data Set:

LDicomDS::GetFirstElement

LDicomDS::GetLastElement

LDicomDS::GetNextElement

LDicomDS::GetRootElement

LDicomDS::GetChildElement
Required DLLs and Libraries

LTDIC
For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application

Platforms

Win32, x64

Functions

Topics

Example

This example displays the parent’s name of an element.

L_INT LDicomDS_GetParentElementExample()
{
   LDicomDS*      pDS;
   pDICOMELEMENT  pParent;
   pDICOMELEMENT  pElement;
   pDICOMTAG      pTag;
   L_TCHAR        szUnknown[]=TEXT("Unknown");
   L_TCHAR*       p;

   pDS = new LDicomDS(NULL);

   pDS->InitDS( CLASS_XA_BIPLANE_IMAGE_STORAGE_RETIRED, 0);

   pElement = pDS->FindFirstElement(NULL, TAG_RADIATION_SETTING, FALSE);
   if (pElement != NULL)
   {
      pParent = pDS->GetParentElement(pElement);
      if (pParent != NULL)
      {
         pTag = LDicomTag::Find(pParent->nTag);
         if (pTag != NULL)
         {
            p = pTag->pszName;
         }
         else
         {
            p = szUnknown;
         }

         MessageBox(NULL, p, TEXT("Notice"), MB_OK);
      }
   }

   delete pDS;

   return DICOM_SUCCESS;
}
