ZigZagCommand Class

Summary

Radially distorts the image by creating waves that twist the image around a specified center. This command is available in the Imaging Pro and above toolkits.

Syntax

C++/CLI

Python

public class ZigZagCommand : RasterCommand

public ref class ZigZagCommand : public RasterCommand

class ZigZagCommand(RasterCommand):

Remarks

As an example, if you use the following image:

And you were to call ZigZagCommand using the following settings:

Parameter	Value
Amplitude	47
Attenuation	92
Frequency	13
Phase	-162
CenterPoint	(192, 82)
FillColor	Black
Flags	Color \| RadialWave

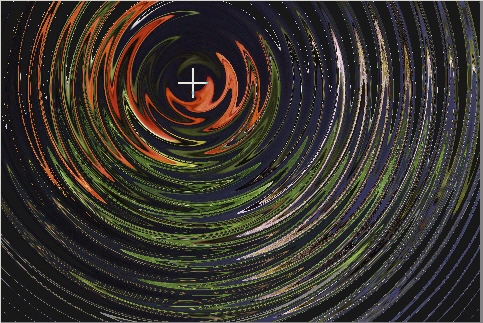

The following figure results:

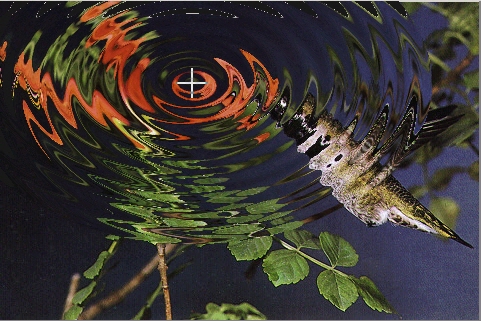

As another settings, if you use the same settings except you use the PondRippleWave flag, the following figure results:

If the image has a region, the effect will be applied on the region only.
This command supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48 and 64 bit color images is available only in the Document/Medical toolkits.
This command does not support signed data images.
This command does not support 32-bit grayscale images.

For more information, refer to Removing Noise.

ZigZag Function - Before

ZigZag Function - After

View additional platform support for this ZigZag function.

Example

Run the ZigZagCommand on an image and applies the ZigZag filter.

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.SpecialEffects;


public void ZigZagCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));

   // Prepare the command
   LeadPoint ptCenter = new LeadPoint(192, 82);
   RasterColor fillColor = new RasterColor(0, 0, 0);
   ZigZagCommand command = new ZigZagCommand();

   command.Amplitude = 47;
   command.Attenuation = 92;
   command.Frequency = 13;
   command.Phase = -162;
   command.CenterPoint = ptCenter;
   command.FillColor = fillColor;
   command.Flags = ZigZagCommandFlags.Color | ZigZagCommandFlags.RadialWave;
   command.Run(image);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS22\Resources\Images";
}
