L_DicomGetNextIOD

Summary

Returns a pointer to the item in the IOD Structure that immediately follows the specified item.

Syntax

#include "Ltdic.h"

L_LTDIC_API pDICOMIOD L_DicomGetNextIOD(pIOD, bTree)

Parameters

pDICOMIOD pIOD

Pointer to a DICOMIOD structure that contains an item in the IOD Structure. A pointer to the item in the IOD Structure that immediately follows this item will be returned.

L_BOOL bTree

Flag that indicates how the IOD Structure will be evaluated. Possible values are:

Value Meaning
TRUE Evaluate the IOD Structure as a tree.
FALSE Evaluate the IOD Structure as a list.

Returns

Value Meaning
!NULL A pointer to a DICOMIOD structure that contains the item in the IOD Structure that immediately follows the item specified in pIOD.
NULL There is not an item following pIOD. (pIOD is the last item in the IOD Structure.)

Comments

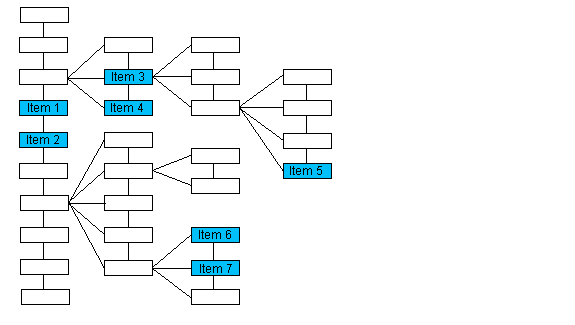

If the IOD Structure is evaluated as a tree structure, this function returns the next item on the same level as pIOD with the same parent as pIOD. Please note that the numbering of the items in this illustration is arbitrary and does not imply order.

If the passed pointer points to The function returns a pointer to
Item 1 Item 2
Item 3 Item 4
Item 5 NULL
Item 6 Item 7

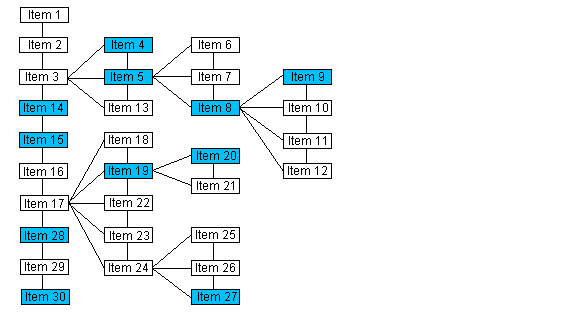

If the IOD Structure is evaluated as a list, the next item in the list is returned. Please note that the numbering of the items in this illustration does indicate the order of the items when the IOD Structure is evaluated as a list.

If the passed pointer points to The function returns a pointer to
Item 14 Item 15
Item 4 Item 5
Item 8 Item 9
Item 19 Item 20
Item 27 Item 28
Item 30 NULL

The following functions will also help you navigate the IOD Structure as either a tree or a list:

If you evaluate the IOD Structure as a tree, you can also use the following functions to navigate the tree:

Required DLLs and Libraries

Platforms

Win32, x64, Linux.

See Also

Functions

Topics

Example

This example displays in a list-box control all classes from the IOD table

L_INT DicomGetNextIODExample(HWND hDlg)
{
   pDICOMIOD pIOD;

   pIOD = L_DicomGetFirstIOD(NULL, TRUE);
   while (pIOD != NULL)
   {
      SendMessage(hDlg, LB_ADDSTRING, (WPARAM)0, (LPARAM)(LPCTSTR)pIOD->pszName);
      pIOD = L_DicomGetNextIOD(pIOD, TRUE);
   }
   return DICOM_SUCCESS;
}
