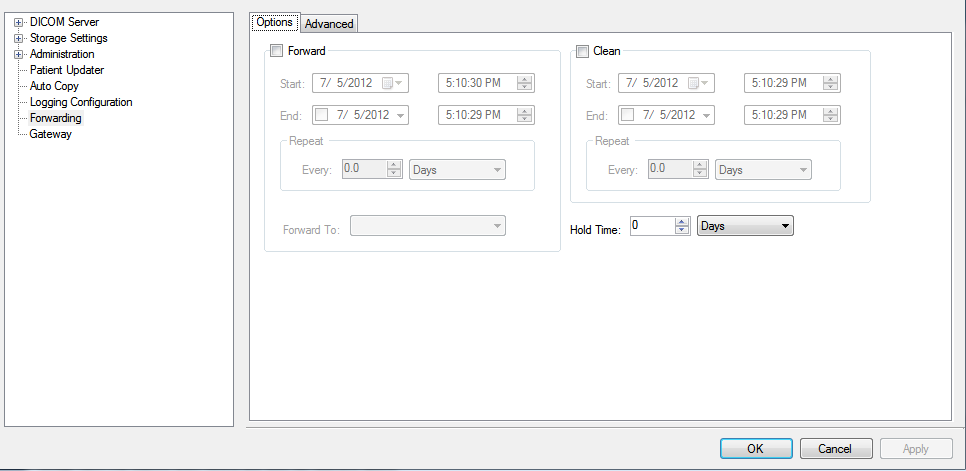

The Forwarding button () on the Control Panel of the LEADTOOLS Storage Server main window opens the Server Settings dialog with the Forwarding branch selected in the tree view. The settings determine how the Forwarding is set up and operates. The Forwarding branch show the Forwarding page with the following tabs:
Enables the options for automatically forwarding DICOM images to be archived or stored on a separate PACS server.
Use these fields to enter the starting date of a time period.
Use these fields to enter the ending date of a time period.
Selects the destination's Storage Server AE title.
Select to specify when the Storage Server deletes all previously forwarded image data sets, removing them from the local Storage Server. After cleaning, only the most recent data remains on the local Storage Server.
Use these fields to enter the starting date of a time period.
Use these fields to enter the ending date of a time period.
Use this to determine the frequency that the cleaning occurs.
Use to determine how long to hold the images on the local Storage Server.

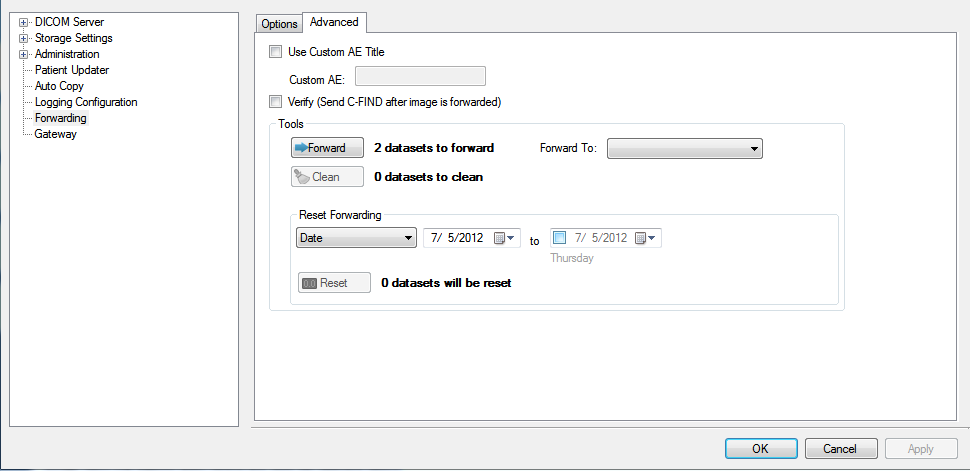

Use the Advanced tab of the Forwarding dialog for manual forwarding and cleaning. Triggering either of these functions from the Advanced tab causes the triggered function to be performed one time.
Select the check box to use a custom AE title when using Forwarding. If the check box is clear, the local Storage Server's AE title will be used.
Enter the Custom AE title.
Select the check box to verify that datasets were successfully forwarded. Verification is performed with a C-Find-Req. If the corresponding C-Find-Rsp indicates success, internally the dataset is marked as having been forwarded; otherwise, the dataset is considered as not being forwarded.
Forwards the images to the server selected in the Forward To drop-down list.
Selects the destination's Storage Server AE title.
Deletes all previously forwarded image data sets, removing them from the local Storage Server. After cleaning, only the most recent data remains on the local Storage Server.
Lists common intervals, such as this week and last week. Selecting an entry in this list automatically fills the other two date controls with the corresponding dates.
Use these fields to enter the starting date of a time period.
Use these fields to enter the ending date of a time period.
Forwards images based on the selected date range.
