Atmos Cloud Storage

(External Store Add-in)

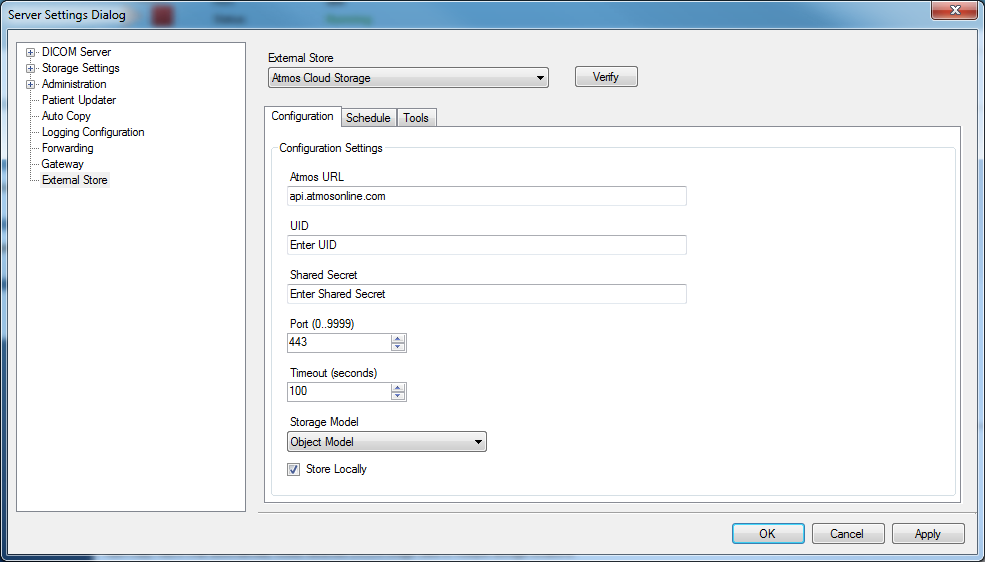

Select Atmos Cloud Storage in the External Store drop down to see the configuration options:

The following table explains each of the configuration options.  After obtaining Atmos cloud storage credentials (UID and Shared Secret), configure the Atmos External store add-in and click the Apply button.

Setting

Value

Atmos URL

api.atmosonline.com

UID

You must obtain a UID from Atmos

Shared Secret

You must obtain a Shared Secret from Atmos

Port

443

Timeout

100

Storage Model

Object Model

The choices are

  • Object Model
    • Requires less cloud storage space than the NameSpace model
  • Namespace Model
    • Can store entire path to object (dataset)
    • Requires more cloud storage space than the object model
    • Can easily browse cloud using an Atmos Cloud browswer (i.e. AtmosFox Explorer Firefox addin)

Store Locally

Checked

The choices are

  • Checked
    • When storing datasets (either through the Database Manager, or using a DICOM SCU Client demo), the DICOM datasets are initially stored locally, and not directly to the external store
    • DICOM datasets are then configured to be stored on the cloud and cleaned locally through the external store scheduler options
  • Unchecked
    • When DICOM datasets are stored, they are copied directly to the cloud (and not copied to the local store)

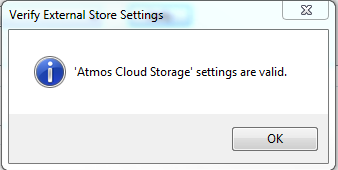

Click the Verify button.  You should see a message indicating that the settings are valid, as shown in the following figure:
