HalfTonePatternCommand Class

Summary

Creates a halftone screen effect for an image while keeping its continuous range of tones. This method is available in the Document/Medical toolkits.

Syntax

Objective-C

C++/CLI

Python

public class HalfTonePatternCommand : RasterCommand

@interface LTHalfTonePatternCommand : LTRasterCommand

public ref class HalfTonePatternCommand : public RasterCommand

class HalfTonePatternCommand(RasterCommand):

Remarks

This method supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.
If the image has a region, this method works only on the region. If the image does not have a region, this method works on the entire image.
This method does not support signed data images.
This command does not support 32-bit grayscale images.

Halftone Pattern Function - Before

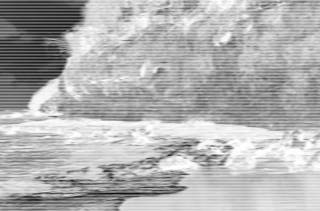

Halftone Pattern Function - After

View additional platform support for this Halftone Pattern function.

Example

Run the HalfTonePatternCommand on an image.

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Core;

public void HalfTonePatternCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample1.cmp"));

   // Prepare the command
   HalfTonePatternCommand command = new HalfTonePatternCommand();
   command.Contrast = 100;
   command.Ripple = 200;
   command.AngleContrast = 12;
   command.AngleRipple = 2;
   command.AngleOffset = 4500;
   command.BackGroundColor = new RasterColor(255, 255, 255);
   command.ForeGroundColor = new RasterColor(255, 0, 0);
   command.Type = HalfTonePatternCommandType.Line;
   command.Run(image);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS22\Resources\Images";
}
