Load(Stream,long,long) Method

Summary

Loads an image file, letting you specify the location of the image data within the stream.

Syntax

WinRT C#

C++

public RasterImage Load(
   Stream stream,
   long offset,
   long count
)

Public Overloads Function Load( _
   ByVal stream As Stream, _
   ByVal offset As Long, _
   ByVal count As Long _
) As Leadtools.RasterImage

public Leadtools.RasterImage Load(
   Stream stream,
   long offset,
   long count
)

 function Leadtools.Codecs.RasterCodecs.Load(Stream,Int64,Int64)(
   stream ,
   offset ,
   count
)

public:
Leadtools.RasterImage^ Load(
   Stream^ stream,
   int64 offset,
   int64 count
)

Parameters

stream
A Stream containing the image data to load.

offset
Offset from the beginning of the stream at which loading should start.

count
Total size of the image file data.

Return Value

The RasterImage object that this method loads.

Remarks

This method can be used to load an image file that is embedded in another stream.

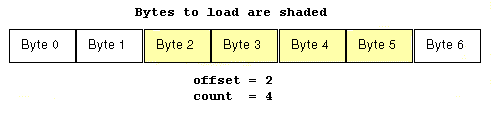

The location of the image is specified as shown in the following simple illustration:

LEADTOOLS will attempt to load corrupted files so you can see at least a portion of the image. For these images, the load methods succeed, but LoadStatus will return an error code.

This method will load all the pages in a multi-page file. The resulting image will have the same bits/pixel and color order value of the image as it was stored in the file.

LEADTOOLS will attempt to load corrupted files so you can see at least a portion of the image. For these images, the load methods succeed, but LoadStatus will return an error code.

Use the CodecsLoadOptions class to set up other load option parameters before calling this method.

Support for 12 and 16-bit grayscale, and 48 and 64-bit color images is only available in the Document/Medical Imaging editions.

For supported formats, refer to Summary of All Supported Image File Formats.

LEADTOOLS loads all PDF files as Raster PDF uncompressed RasterImageFormat.RasPdf, regardless of the compression and color space used when saving the file.

The CodecsLoadOptions.AllPages property controls whether RasterCodecs will try to load all pages or just the first page if the image data contains multiple pages.

Example

This example will load an image located in an offset into a stream

Requirements

Target Platforms
