LEAD Video EFX Glass Tile Filter User Interface

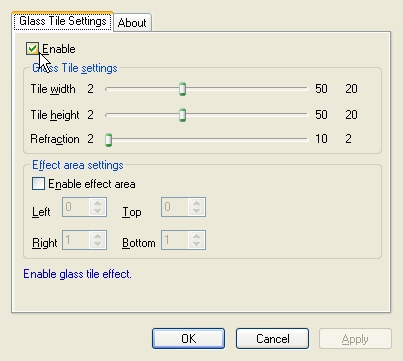

The Glass Tile Video filter gives a video the appearance of being viewed through glass tiles. The property page is shown in the figure below:
The Glass Tile property page provides a user interface for changing the filter's attributes.
Changes will be applied directly to the streaming media with the ability to set them permanently by selecting Apply or OK, or to abandon changes by selecting Cancel. Positioning the mouse pointer over a control displays general information for that control. The following table shows the controls and their descriptions:
Control |
Description |
Enable check box |
Enables/Disables the effect. |
Tile Width slider |
Width of each glass tile. Range: 2 to 50. |
Tile Height slider |
Height of each glass tile. Range: 2 to 50. |
Refraction slider |
Controls the reflection of the frame in to the glass tiles. Range: 2 to 10. |
Enable effect area check box |
Enables/Disables the effect for a cropped video area. Area limits are set using the Left, Top, Right and Bottom controls. |
Left spin edit control |
Left boundary of the effect area. |
Top spin edit control |
Top boundary of the effect area. |
Right spin edit control |
Right boundary of the effect area. |
Bottom spin edit control |
Bottom boundary of the effect area. |
