HalfToneCommand Class

Summary

Converts a 1-bit, 4-bit, 8-bit, 16-bit, 24-bit, or 32-bit image to a halftoned image, with a specified pattern rotation. A halftoned image is a 1-bit image that has been dithered for black and white printing or display.

Syntax

Objective-C

C++/CLI

Java

Python

public class HalfToneCommand : RasterCommand

@interface LTHalftoneCommand : LTRasterCommand

public class HalfToneCommand
    extends RasterCommand

public ref class HalfToneCommand : public RasterCommand

class HalfToneCommand(RasterCommand):

Remarks

For the HalfToneCommandType.UserDefined option, the number of images in the list must be at least equal to (Dimension * Dimension + 1). Images with higher indexes correspond to higher intensity values.
This command can process the whole image or a region of the image.
This command does not support 12 and 16-bit grayscale and 48 and 64-bit color images.
This command does not support signed data images.
This command supports 32-bit grayscale images.

For more information, refer to Introduction to Image Processing With LEADTOOLS.

Halftone Function - Before

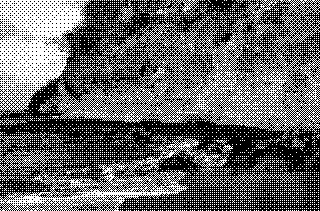

Halftone Function - After

View additional platform support for this Halftone function.

Example

Run the HalfToneCommand on an image.

Java

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Core;

public void HalfToneCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));

   // Prepare the command
   HalfToneCommand command = new HalfToneCommand();
   command.Angle = 0;
   command.Dimension = 2;
   command.Type = HalfToneCommandType.View;
   //Halftone the image.
   command.Run(image);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}


import java.io.File;
import java.io.IOException;

import org.junit.*;
import org.junit.runner.JUnitCore;
import org.junit.runner.Result;
import org.junit.runner.notification.Failure;
import static org.junit.Assert.*;

import leadtools.*;
import leadtools.codecs.*;
import leadtools.imageprocessing.core.*;


public void halfToneCommandExample() {

    final String LEAD_VARS_IMAGES_DIR = "C:\\LEADTOOLS23\\Resources\\Images";
    // Load an image
    RasterCodecs codecs = new RasterCodecs();
    codecs.setThrowExceptionsOnInvalidImages(true);

    RasterImage image = codecs.load(combine(LEAD_VARS_IMAGES_DIR, "sample5.cmp"));

    // Prepare the command
    HalfToneCommand command = new HalfToneCommand();
    command.setAngle(0);
    command.setDimension(2);
    command.setType(HalfToneCommandType.VIEW);
    // Halftone the image
    command.run(image);
    codecs.save(image, combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"), RasterImageFormat.JPEG, 24);

    System.out.println("Command run and image saved to " + combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"));
    assertTrue(new File(combine(LEAD_VARS_IMAGES_DIR, "Result.jpg")).exists());

}
