TissueEqualizeCommand Class

Summary

This function performs an Equalization between the Hard Tissue and the Soft Tissue in X-Ray Images.

Syntax

Objective-C

C++/CLI

Java

Python

public class TissueEqualizeCommand : RasterCommand

@interface LTTissueEqualizeCommand : LTRasterCommand

public class TissueEqualizeCommand
    extends RasterCommand

public ref class TissueEqualizeCommand : public RasterCommand

class TissueEqualizeCommand(RasterCommand):

Remarks

Using this function improves the results in processing and recognition of Medical X-Ray and CT Images.
This function does not support 32-bit grayscale images. It returns the error code ERROR_GRAY32_UNSUPPORTED if a 32-bit grayscale image is passed to this function.

Options:

Intensification of X-Ray Image
Simplification of X-Ray Image

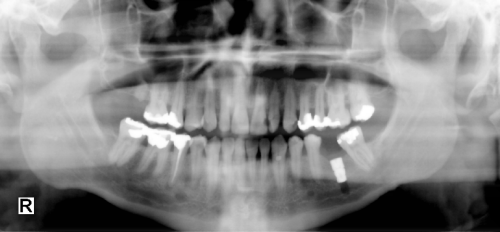

Tissue Equalize Function - Before

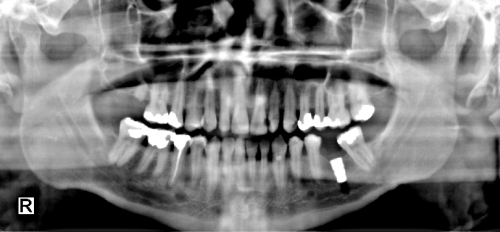

Tissue Equalize Function - After

View additional platform support for this Tissue Equalize function.

Example

Runs the TissueEqualizeCommand on the Image.

Java

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Core;

public void TissueEqualizeCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "Master.jpg"));

   // Prepare the command
   TissueEqualizeCommand command = new TissueEqualizeCommand();
   //Apply
   command.Flags = TissueEqualizeCommandFlags.UseIntensifyOption;
   command.Run(image);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}


import java.io.File;
import java.io.IOException;

import org.junit.*;
import org.junit.runner.JUnitCore;
import org.junit.runner.Result;
import org.junit.runner.notification.Failure;
import static org.junit.Assert.assertTrue;

import leadtools.*;
import leadtools.codecs.*;
import leadtools.imageprocessing.core.*;


public void tissueEqualizeCommandExample() {
   final String LEAD_VARS_IMAGES_DIR = "C:\\LEADTOOLS23\\Resources\\Images";

   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.setThrowExceptionsOnInvalidImages(true);

   RasterImage image = codecs.load(combine(LEAD_VARS_IMAGES_DIR, "Master.jpg"));
   String outputFileNameName = combine(LEAD_VARS_IMAGES_DIR, "result_master.jpg");

   // Prepare the command
   TissueEqualizeCommand command = new TissueEqualizeCommand();

   // Apply
   command.setFlags(TissueEqualizeCommandFlags.USE_INTENSIFY_OPTION.getValue());

   int change = command.run(image);
   assertTrue(change != RasterImageChangedFlags.NONE);

   // Save your image
   codecs.save(image, outputFileNameName, RasterImageFormat.JPEG, 0);
   System.out.println("Command run, file saved to " + outputFileNameName);
}
