WindowLevelCommand Class

Summary
Converts a 12 or 16-bit grayscale image to an 8-bit grayscale or a 24-bit RGB image. This class is available in Medical toolkits only.
Syntax
C#
Objective-C
C++/CLI
Java
Python
public class WindowLevelCommand : RasterCommand
@interface LTWindowLevelCommand : LTRasterCommand
public class WindowLevelCommand
    extends RasterCommand
public ref class WindowLevelCommand : public RasterCommand
class WindowLevelCommand(RasterCommand):
Remarks
  • This command supports 12 and 16-bit grayscale. Support for 12 and 16-bit grayscale images is available only in the Document/Medical toolkits.
  • This command does not support 32-bit grayscale images.
  • RasterByteOrder.Romm and RasterByteOrder.Gray are not supported by this command.

Only TIFF and DICOM file formats are capable of saving images that have been window-leveled. Images can be window-leveled by calling WindowLevel and specifying RasterWindowLevelMode.PaintAndProcessing for the flags parameter, by using the WindowLevelCommand or by loading an image from a file format that supports Window Leveling. If a window-leveled image is saved as any other file format, the image data will be converted before being saved. For more information, refer to Saving Window-Leveled Images. See WindowLevelExtCommand for a version of this class using 16-bit lookup tables. LEADTOOLS supports two types of LUTs for 10-16-bit grayscale images (8-bit LUT and 16-bit LUT). Typical grayscale image display and processing is done using an 8-bit LUT. But, you can also use a 16-bit LUT, which offers more precision. Some special video cards and monitors also support display of grayscale images using a 16-bit LUT. For more information, refer to Introduction to Image Processing With LEADTOOLS. For more information, refer to Grayscale Images.

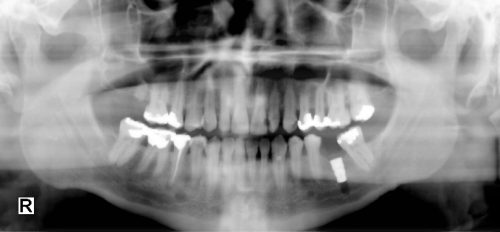

Window Level Function - Before

Window Level Function - Before

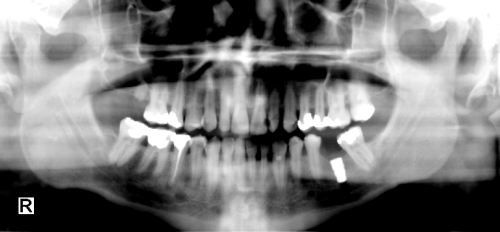

Window Level Function - After

Window Level Function - After

View additional platform support for this Window Level function.

Example
C#
Java
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.Core;

public void WindowLevelCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "IMAGE3.dcm"));

   // Prepare the command
   int x;
   byte y;
   int Size;
   RasterColor[] LookupTable;

   //Change the image to 16-bit grayscale
   GrayscaleCommand graycommand = new GrayscaleCommand(16);
   MinMaxBitsCommand MinMaxBits = new MinMaxBitsCommand();
   MinMaxValuesCommand MinMaxValues = new MinMaxValuesCommand();
   WindowLevelCommand command = new WindowLevelCommand();

   graycommand.Run(image);
   MinMaxBits.Run(image);
   MinMaxValues.Run(image);

   Size = (1 << (MinMaxBits.MaximumBit - MinMaxBits.MinimumBit + 1));
   LookupTable = new Leadtools.RasterColor[Size];

   // fill the first half of the LookupTable with RED.
   for (x = 0; x < Size / 2; x++)
      LookupTable[x] = new Leadtools.RasterColor(255, 0, 0);

   // fill the rest with gray values.
   for (x = Size / 2; x < Size; x++)
   {
      y = (byte)((x - MinMaxValues.MinimumValue) * 255 / (MinMaxValues.MaximumValue - MinMaxValues.MinimumValue));
      LookupTable[x] = new Leadtools.RasterColor(y, y, y);
   }

   command.HighBit = MinMaxBits.MaximumBit;
   command.LowBit = MinMaxBits.MinimumBit;
   command.LookupTable = LookupTable;
   command.Order = Leadtools.RasterByteOrder.Bgr;

   command.Run(image);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}

import java.io.File;
import java.io.IOException;

import org.junit.*;
import org.junit.runner.JUnitCore;
import org.junit.runner.Result;
import org.junit.runner.notification.Failure;
import static org.junit.Assert.*;

import leadtools.*;
import leadtools.codecs.*;
import leadtools.imageprocessing.*;
import leadtools.imageprocessing.core.*;


public void windowLevelCommandExample() {
   final String LEAD_VARS_IMAGES_DIR = "C:\\LEADTOOLS23\\Resources\\Images";

   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.setThrowExceptionsOnInvalidImages(true);

   RasterImage image = codecs.load(combine(LEAD_VARS_IMAGES_DIR, "DICOM\\IMAGE3.dcm"));

   // Prepare the command
   int x;
   byte y;
   int size;
   RasterColor[] lookupTable;

   // Change the image to 16-bit grayscale
   GrayscaleCommand grayCommand = new GrayscaleCommand(16);
   MinMaxBitsCommand minMaxBits = new MinMaxBitsCommand();
   MinMaxValuesCommand minMaxValues = new MinMaxValuesCommand();
   WindowLevelCommand command = new WindowLevelCommand();

   grayCommand.run(image);
   minMaxBits.run(image);
   minMaxValues.run(image);

   size = (1 << (minMaxBits.getMaximumBit() - minMaxBits.getMinimumBit() + 1));
   lookupTable = new leadtools.RasterColor[size];

   // fill the first half of the LookupTable with RED.
   for (x = 0; x < size / 2; x++)
      lookupTable[x] = new leadtools.RasterColor(255, 0, 0);

   // fill the rest with gray values.
   for (x = size / 2; x < size; x++) {
      y = (byte) ((x - minMaxValues.getMinimumValue()) * 255
            / (minMaxValues.getMaximumValue() - minMaxValues.getMinimumValue()));
      lookupTable[x] = new leadtools.RasterColor(y, y, y);
   }

   command.setHighBit(minMaxBits.getMaximumBit());
   command.setLowBit(minMaxBits.getMinimumBit());
   command.setLookupTable(lookupTable);
   command.setOrder(RasterByteOrder.BGR);

   int change = command.run(image);
   assertTrue(change != RasterImageChangedFlags.NONE);

   codecs.save(image, combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"), RasterImageFormat.JPEG, 24);
   System.out.println("Command run, image saved to " + combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"));
}
