LeadFillMode Enumeration

Summary

Specifies how a polygonal shape with crossing lines is filled.

Syntax

Objective-C

C++/CLI

Java

Python

public enum LeadFillMode

typedef NS_ENUM(NSInteger, LTLeadFillMode) {
 LTLeadFillModeAlternate,
 LTLeadFillModeWinding
};

public final class LeadFillMode
    extends java.lang.Enum<LeadFillMode>

public enum class LeadFillMode

class LeadFillMode(Enum):
   Alternate = 0
   Winding = 1

Members

Value	Member	Description
0	Alternate	The filled area includes the area between odd-numbered and even-numbered polygon sides on each scan line.
1	Winding	All pixels that are inside the resulting exterior lines are filled.

Remarks

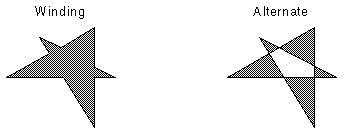

The following figure describes how fill mode is used:

Example

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.Core;
using Leadtools.ImageProcessing.Color;
using Leadtools.Dicom;
using Leadtools.Drawing;
using Leadtools.Controls;
using Leadtools.Svg;


public void AddPolygonToRegionExample()
{
	RasterCodecs codecs = new RasterCodecs();

	string srcFileName = Path.Combine(LEAD_VARS.ImagesDir, "Image1.cmp");
	string destFileName = Path.Combine(LEAD_VARS.ImagesDir, "Image1_AddPolygonToRegion.bmp");

	// Load the image
	RasterImage image = codecs.Load(srcFileName);

	// Add a polygon region

	RasterRegionXForm xform = new RasterRegionXForm();
	xform.ViewPerspective = RasterViewPerspective.TopLeft;
	xform.XOffset = 0;
	xform.YOffset = 0;
	xform.XScalarDenominator = 1;
	xform.XScalarNumerator = 1;
	xform.YScalarDenominator = 1;
	xform.YScalarNumerator = 1;

	int x1 = image.ImageWidth / 4;
	int y1 = image.ImageHeight / 4;
	int x2 = image.ImageWidth / 3;
	int y2 = image.ImageHeight / 3;

	LeadPoint[] pts =
	{
	new LeadPoint(x1, y1),
	new LeadPoint(x2, y1),
	new LeadPoint(x1, y2),
	new LeadPoint(x2, y2)
 };

	image.AddPolygonToRegion(xform, pts, LeadFillMode.Winding, RasterRegionCombineMode.Set);

	// Draw something on the image
	InvertCommand command = new InvertCommand();
	command.Run(image);

	// Save the image
	codecs.Save(image, destFileName, RasterImageFormat.Bmp, 24);

	image.Dispose();
	codecs.Dispose();
}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS22\Resources\Images";
}
