Tension Property

Summary

Gets or sets a value that indicates how straight to make the curves that connect points.

Syntax

C++/CLI

Java

Python

public double Tension { get; set; }

public double getTension();
public void setTension(
   double doubleValue
);

public:
property double Tension {
   double get();
   void set (    double );
}

Tension # get and set (RasterCurve)

Property Value

An Double value that indicates how straight to make the curves that connect points. Valid values are between 0.0 and 1.0.

Remarks

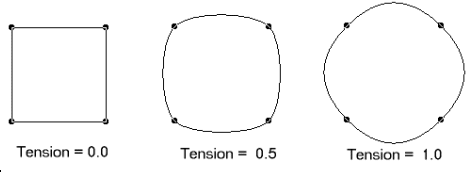

This value is used only when Type is RasterCurveType.Standard. Valid values are between 0.0 and 1.0, where 0.0 indicates straight lines, and 1.0 indicates lines with the highest curvature. A typical value for dTension is 0.5.

Example

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.Color;


public void RasterCurveExample()
{
	string destFileName = Path.Combine(LEAD_VARS.ImagesDir, "Image1_curveinverted.bmp");

	// create a new curve object
	RasterCurve curve = new RasterCurve();

	// define the curve
	curve.Points.Add(new LeadPoint(30, 30));
	curve.Points.Add(new LeadPoint(30, 200));
	curve.Points.Add(new LeadPoint(130, 130));
	curve.Points.Add(new LeadPoint(75, 75));
	curve.Points.Add(new LeadPoint(130, 30));

	curve.Type = RasterCurveType.Standard;
	curve.FillMode = LeadFillMode.Winding;
	curve.Tension = 0.5;
	curve.Close = RasterCurveClose.Close;

	// create an image

	using (RasterImage image = new RasterImage(
	   RasterMemoryFlags.Conventional,
	   250,
	   250,
	   24,
	   RasterByteOrder.Bgr,
	   RasterViewPerspective.BottomLeft,
	   null,
	   IntPtr.Zero,
	   0))
	{
		Assert.IsNotNull(image);

		// fill the image
		new FillCommand(RasterColor.FromKnownColor(RasterKnownColor.Magenta)).Run(image);
		image.AddCurveToRegion(null, curve, RasterRegionCombineMode.Set);

		// do something with the region
		new InvertCommand().Run(image);

		// save the image
		using (RasterCodecs codecs = new RasterCodecs())
		{
			// save the image back to disk
			codecs.Save(image, destFileName, RasterImageFormat.Bmp, 24);
		}
	}
}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS22\Resources\Images";
}

Requirements

Target Platforms

Reference

RasterCurve Class

RasterCurve Members
