FillMode Property

Summary

Gets or sets a value that indicates how to handle complex crossing lines.

Syntax

C++/CLI

Java

Python

public LeadFillMode FillMode { get; set; }

public LeadFillMode getFillMode();
public void setFillMode(
   LeadFillMode leadFillMode
);

public:
property LeadFillMode FillMode {
   LeadFillMode get();
   void set (    LeadFillMode );
}

FillMode # get and set (RasterCurve)

Property Value

A LeadFillMode enumeration value that indicates how to handle complex crossing lines.

Remarks

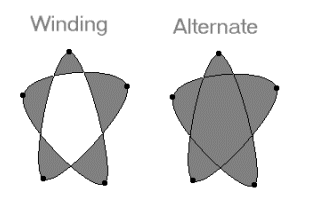

Value	Meaning
LeadFillMode.Winding	All pixels that are inside the resulting exterior lines are in the region.
LeadFillMode.Alternate	The region includes the area between odd-numbered and even-numbered polygon sides on each scan line.

Example

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.Color;


public void RasterCurveExample()
{
	string destFileName = Path.Combine(LEAD_VARS.ImagesDir, "Image1_curveinverted.bmp");

	// create a new curve object
	RasterCurve curve = new RasterCurve();

	// define the curve
	curve.Points.Add(new LeadPoint(30, 30));
	curve.Points.Add(new LeadPoint(30, 200));
	curve.Points.Add(new LeadPoint(130, 130));
	curve.Points.Add(new LeadPoint(75, 75));
	curve.Points.Add(new LeadPoint(130, 30));

	curve.Type = RasterCurveType.Standard;
	curve.FillMode = LeadFillMode.Winding;
	curve.Tension = 0.5;
	curve.Close = RasterCurveClose.Close;

	// create an image

	using (RasterImage image = new RasterImage(
	   RasterMemoryFlags.Conventional,
	   250,
	   250,
	   24,
	   RasterByteOrder.Bgr,
	   RasterViewPerspective.BottomLeft,
	   null,
	   IntPtr.Zero,
	   0))
	{
		Assert.IsNotNull(image);

		// fill the image
		new FillCommand(RasterColor.FromKnownColor(RasterKnownColor.Magenta)).Run(image);
		image.AddCurveToRegion(null, curve, RasterRegionCombineMode.Set);

		// do something with the region
		new InvertCommand().Run(image);

		// save the image
		using (RasterCodecs codecs = new RasterCodecs())
		{
			// save the image back to disk
			codecs.Save(image, destFileName, RasterImageFormat.Bmp, 24);
		}
	}
}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS22\Resources\Images";
}
