L_DicomAddUserInfo
#include "ltdic.h"
L_LTDIC_API L_INT L_DicomAddUserInfo(hPDU, nType, pData, nLength)
HDICOMPDU hPDU; |
a DICOM Associate handle |
L_UCHAR nType; |
type |
L_UCHAR * pData; |
user data |
L_UINT16 nLength; |
length |
Appends a User-defined item to the specified DICOM Associate.
Parameter |
Description |
hPDU |
A DICOM Associate handle. |
nType |
Type of the User-defined item. |
pData |
Buffer that contains the data for the User-defined item. |
nLength |
Length of the User-defined item. |
Returns
DICOM_SUCCESS |
The function was successful. |
>0 |
An error occurred. Refer to Return Codes. |
Comments

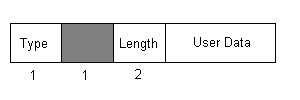

User-defined items may be included in the DICOM Associate to provide any other data the user finds necessary when establishing a DICOM Associate connection. The basic structure of the User-defined item is
where the Type, Length and User Data are all determined by the user. The values shown are the lengths, in bytes, of the elements of the User-defined item.
Required DLLs and Libraries
|
For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application |
Win32, x64, Linux.
Functions: |
L_DicomGetUserInfoCount, L_DicomGetLengthUserInfo, L_DicomGetDataUserInfo, L_DicomGetTypeUserInfo, L_DicomSetUserInfo, L_DicomDelUserInfo |
Topics: |
Example
For an example, refer to L_DicomGetUserInfoCount.
