LEAD Screen Capture Filter User Interface (2.0)

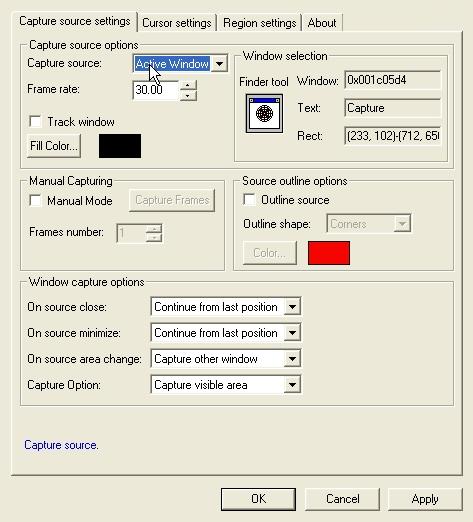

The Screen capture property pages provide a user interface for changing the filter's attributes. Changes will be applied when Apply or OK is clicked. Positioning the mouse pointer over a control displays general information for that control. The Capture source settings tab is shown in the following figure:
The following table shows the controls and their descriptions:
Control |
Description |
Capture source drop-down list box |
Select the capture source type |
Frame rate edit box |
Set the capture frame rate in frames per second. Values range from 0.1 to 30.0 frames per second. |
Track window check box |
Check this to track the window and capture the contents of the window at its original position, even if the window is moved. |
Fill color button |
Select the fill color that used to fill areas of the video under certain conditions. |
Finder tool control |
Drag the finder control to select a window as the capture source. |
Manual mode check box |
Check this to Enable the manual-capturing mode. |
Capture frames button |
Start the manual mode capturing process. |
Frames number edit box |
Number of frames that needs to be captured in manual mode. |
Outline source check box |
Check this to enable the outline shape option. |
Outline shape combo box |
Select the outline shape region type. |
Color button |
Select the outline shape region color. |
On source close combo box |
Select the action if the capture source is closed. |
On source minimize combo box |
Select the action if the capture source is minimized. |
On source area change combo box |
Select the action if the capture source area is changed. |
Capture option combo box |
Select the option that determines what to capture from the window. |

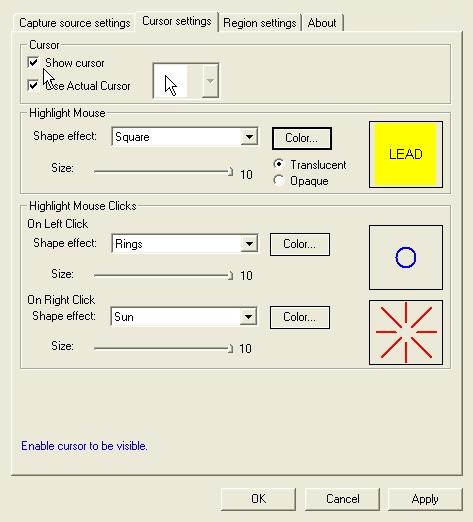

The Cursor settings tab is shown in the following figure:
The following table shows the controls and their descriptions:
Control |
Description |
Show cursor check box |
Check this to display the cursor in the capture stream. |
Use actual cursor check box |
Check this to display the actual cursor icon in the capture stream. Or uncheck it to display the selected cursor from the combo box. |
Cursors combo box |
Select a cursor icon to be displayed in the capture stream. |
Shape effect combo box |
Select the highlight mouse shape effect. |
Size slider bar |
Specify the highlight mouse shape size. |
Color button |
Specify the highlight mouse shape color. |
Translucent radio button |
Make the mouse highlight is translucent. |
Opaque radio button |
Make the mouse highlight is opaque. |
On left click shape effect combo box |
Select the effect shape when the left button click. |
On left click size slider bar |
Set the effect shape size when the left button click. |
On left click color button |
Select the effect shape color when the left button click. |
On right click shape effect combo box |
Select the effect shape when the right button click. |
On right click size slider bar |
Set the effect shape size when the right button click. |
On right click color button |
Select the effect shape color when the right button click. |

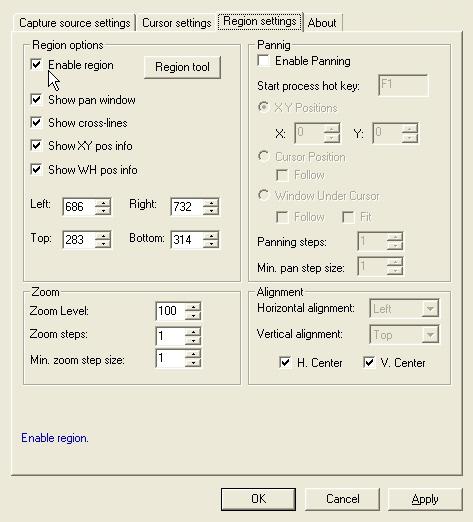

The Region settings tab is shown in the following figure:
The following table shows the controls and their descriptions:
Control |
Description |
Enable region check box |
Check this to enable the region options. |
Region tool button |
To display the region selection tool to specify the capture region. |
Show pan window check box |
Check this to display the pan window when the selection process begins. |
Show cross-line check box |
Check this to display the cross-line when the selection process begins. |
Show XY pos info check box |
Check this to display the XY position window when the selection process begins. |
Show WH pos info check box |
Check this to display the width/height window when the selection process begins. |
Left edit box |
Specify the left boundary of the region. |
Top edit box |
Specify the top boundary of the region. |
Right edit box |
Specify the right boundary of the region. |
Bottom edit box |
Specify the bottom boundary of the region. |
Zoom level edit box |
Specify the zoom level factor. |
Zoom steps edit box |
Specify the zoom steps. |
Min. zoom step size |
Specify the minimum zoom steps. |
Enable panning check box |
Check this to enable the panning options. |
Start process hot key edit box |
Specify a hot key to start the panning process. |
X Y positions radio button |
Select this to pan the region to the specified X Y positions. |
X edit box |
Specify the X position. |
Y edit box |
Specify the Y position. |
Cursor position radio button |
Select this to pan the region to the cursor position. |
Cursor position Follow check box |
Check this to track the cursor when it is move. |
Window under cursor check box |
Select this to pan the region to the window that is under the cursor. |
Window under cursor Follow check box |
Check this to track the captured window when it is move. |
Fit check box |
Check this to fit the region to the captured window. This will change the zoom level. |
Panning steps edit box |
Specify the panning steps. |
Min. pan step size edit box |
Specify the minimum panning steps. |
Horizontal alignment combo box |
Select the horizontal alignment option for the region. |
Vertical alignment combo box |
Select the vertical alignment option for the region. |
H. Center check box |
Check this to make a horizontal-center alignment for the region. |
V. Center check box |
Check this to make a vertical-center alignment for the region. |
