EdgeWidth Property

Summary

Gets or sets the perceived edge width, in pixels.

Syntax

C++/CLI

Python

public int EdgeWidth { get; set; }

public:
property int EdgeWidth {
   int get();
   void set (    int );
}

EdgeWidth # get and set (BricksTextureCommand)

Property Value

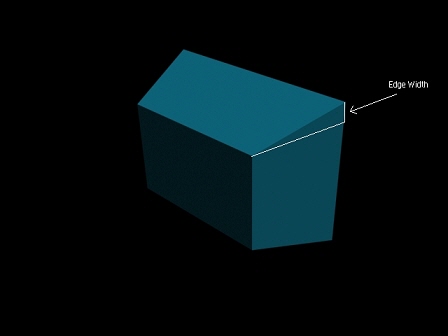

Perceived edge width, in pixels, which represents the brick edge width when the brick is viewed from the perpendicular to the front of the brick. Minimum value is 1. See the following figure:

Example

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.SpecialEffects;


public void BricksCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "ImageProcessingDemo\\Image3.cmp"));

   // Prepare the command
   FillCommand cmd = new FillCommand(new RasterColor(128, 128, 128));
   cmd.Run(image);
   BricksTextureCommand command = new BricksTextureCommand();
   command.BricksWidth = 60;
   command.BricksHeight = 20;
   command.OffsetX = 0;
   command.OffsetY = 0;
   command.EdgeWidth = 3;
   command.MortarWidth = 4;
   command.ShadeAngle = 315;
   command.RowDifference = 33;
   command.MortarRoughness = 20;
   command.MortarRoughnessEvenness = 0;
   command.BricksRoughness = 10;
   command.BricksRoughnessEvenness = 0;
   command.MortarColor = new RasterColor(0, 0, 0);
   command.Flags = BricksTextureCommandFlags.SmoothedOutEdges | BricksTextureCommandFlags.TransparentMortar;
   //Apply Bricks Texture on the image.
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}

Requirements

Target Platforms

Reference

BricksTextureCommand Class

BricksTextureCommand Members
