OceanCommand Class

Summary
Reflects the image on an ocean surface. This command is available in the Imaging and above toolkits.
Syntax
C#
C++/CLI
Python
public class OceanCommand : RasterCommand
public ref class OceanCommand : public RasterCommand
class OceanCommand(RasterCommand):
Remarks
  • If the image has a region, the effect will be applied on the region only.
  • For an example, see the following figure:


    The following figure shows the same image, after the effect has been applied:


    To obtain this effect, the following settings were used with the method:

    1. Amplitude = 15
    2. Frequency = 20
    3. LowerTransparency = true
    4. This command does not support 32-bit grayscale images.
  • This command supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit color images is available only in the Document/Medical toolkits.

  • This command does not support signed data images.

For more information, refer to Correcting Colors.

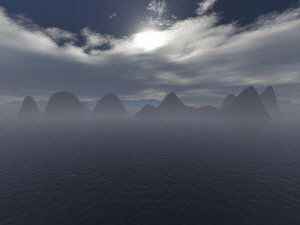

Ocean Function - Before

Ocean Function - Before

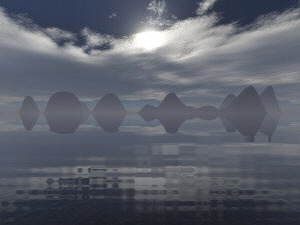

Ocean Function - After

Ocean Function - After

View additional platform support for this Ocean function.

Example

Run the OceanCommand on an image.

C#
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.SpecialEffects;


public void OceanCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));

   // Prepare the command
   OceanCommand command = new OceanCommand();
   command.Amplitude = 20;
   command.Frequency = 6;
   command.LowerTransparency = true;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}
Requirements

Target Platforms
