Use the Auto Copy Button to configure the storage server to move DICOM image data to any number of PACS servers when it receives a DICOM image. This feature can be set up so that when the server receives a C-MOVE request to a destination AE it will automatically store it to some other server as well. When the storage server connects to a remote PACS server, it can be configured to optionally use a custom AE title. The number of threads can be specified in order to improve performance.
The image below shows the Auto Copy button:

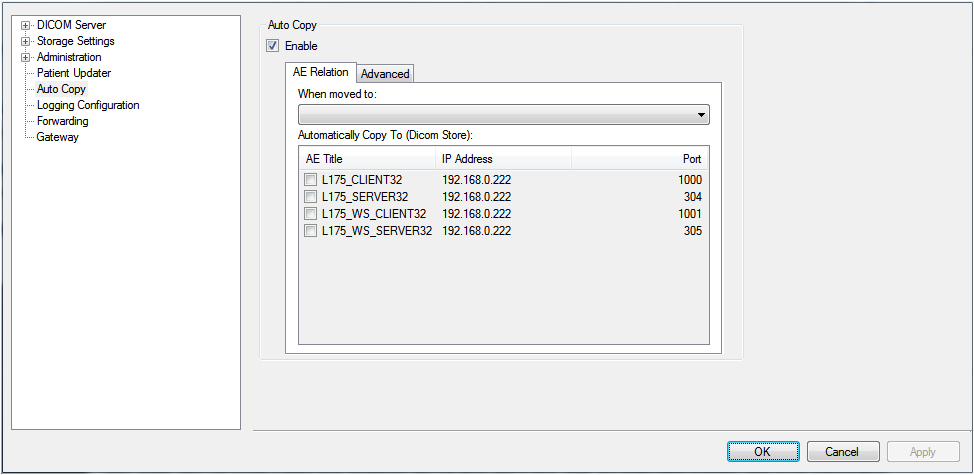

The image below shows the Storage Server AutoCopy AE Relation Tab:
When moved to drop down list: Select the AE Title of the C-Move destination.
Automatically Copy To (Dicom Store): Select the AE Title of the PAC server or servers to automatically copy the DICOM images (i.e. send C-Store-Req).

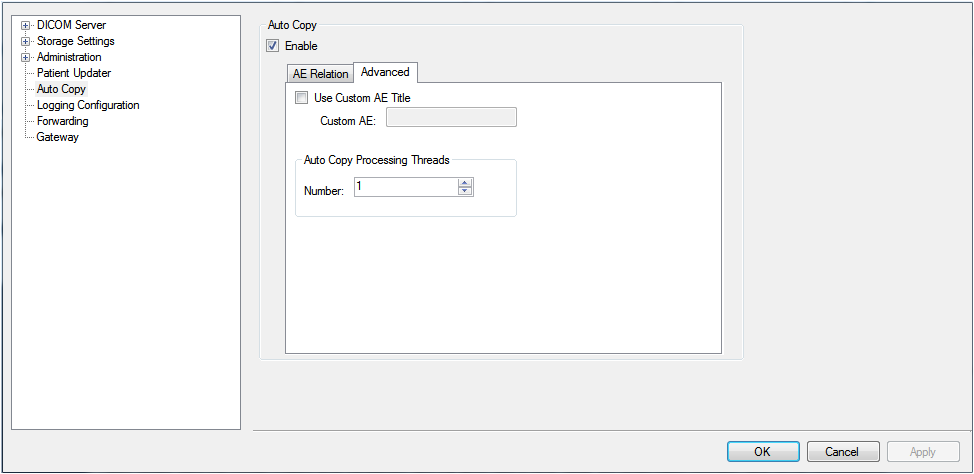

Use Custom AE Title check box Select the check box to use a custom AE title when using Autocopy. If the check box is clear, the local Storage Server's AE title will be used.
Custom AE: text box Enter the Custom AE title.
Auto Copy Processing Threads group
