Configuring the LEADTOOLS Storage Server Application using the Control Panel: Logging

The Logging Configuration button opens the Server Settings dialog with the Logging Configuration branch selected in the tree view. Use this page to configure logging behavior.

The image below shows the Logging Configuration button:

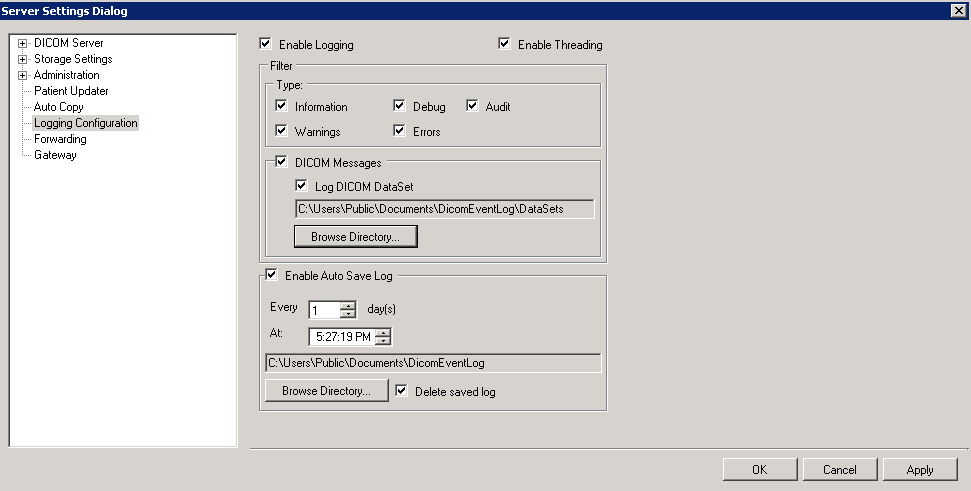

The image below shows the DICOM Server Settings page:

The Logging Configuration Fields

• Enable Logging check box

  Select the check box to turn logging on. Clear the check box to turn logging off.

• Enable Threading check box

  Select the check box to run the log on a thread separate from the main LEADTOOLS Storage Server components.

• Type group

  • Information check box Select the check box to log information.

  • Warnings check box Select the check box to log warnings.

  • Debug check box Select the check box to log debug information.

  • Errors check box Select the check box to log errors.

  • Audit check box Select the check box to log audit information.

• DICOM Messages check box and group

  Select the check box to log all messages related to any server activity initiated by a connected client.

  Log DICOM DataSet check box and entry field and Browse Directory. Select the check box to log all DICOM messages and packets related to any server activity initiated by a connected client. Generally, this should be enabled only when troubleshooting problems with server/client communications. These messages accumulate at an astounding rate at busy locations.

• Enable Auto Save Log check box and group

  Select the check box to log information about Auto Save operations.

  • Every spin box Enter the number of days between starting a new log.

  • At spin box Enter the time at which Auto Save logging should begin.

  • Auto Save Log entry field and Browse Directory button Specify the location where the log should be kept.

  • Delete saved check box Select the check box to delete the previous log.
