L_DicomDeleteIOD

Summary

Deletes the specified item from the IOD Structure.

Syntax

L_LTDIC_API pDICOMIOD L_DicomDeleteIOD(pIOD)

Parameters

pDICOMIOD pIOD

Pointer to a DICOMIOD structure that contains the item to be deleted.

Returns

Comments

You can remove all items from the IOD Structure using L_DicomResetIOD.

Since the IOD Structure is stored internally as a tree, the deletion must be carried out as a tree.

When deleting an item from the tree, if the item being deleted has a sibling (same level, same parent), following it, this function returns a pointer to this sibling. If the item being deleted does not have a sibling following it, but has a sibling preceding it, this function returns a pointer to the preceding sibling. If the item being deleted is an only child, this function returns a pointer to the parent. If there is no parent this function returns NULL.

Below are illustrations of these situations:

For the sake of these illustrations, the order of siblings is top to bottom. A preceding sibling is drawn above the sibling it precedes, a following sibling is drawn below the sibling it follows.

Please note that the numbering of the items of interest is arbitrary, and does not imply order.

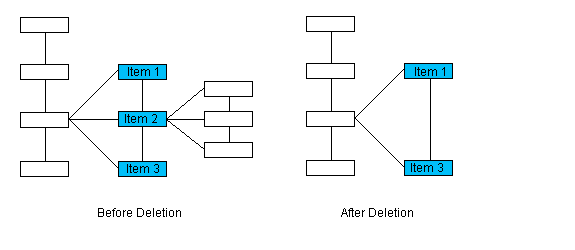

In this illustration item 2 will be deleted. Since it has a following sibling, the returned pointer will point to item 3.

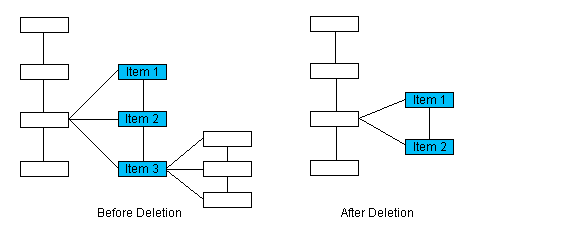

In this illustration item 3 will be deleted. Since it does not have a following sibling, but does have a preceding sibling, the returned pointer will point to item 2.

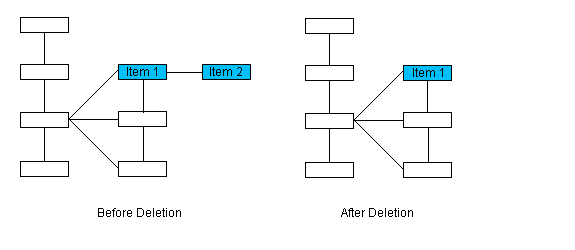

In this illustration item 2 will be deleted. Since it is an only child, the returned pointer will point to the parent, item 1.

In this illustration item 1 will be deleted. Since it has no siblings and no parent, this function will return NULL.

Required DLLs and Libraries

• LTDIC
• For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application

Platforms

Win32, x64, Linux.

See Also

Functions

• L_DicomResetIOD
• L_DicomGetFirstIOD
• L_DicomGetLastIOD
• L_DicomGetPrevIOD
• L_DicomGetNextIOD
• L_DicomGetRootIOD
• L_DicomGetParentIOD
• L_DicomGetChildIOD
• L_DicomFindIOD
• L_DicomFindClassIOD
• L_DicomFindModuleIOD
• L_DicomFindIndexModuleIOD
• L_DicomInsertIOD
• L_DicomLoadXmlIOD

Topics

• Working with Information Object Definitions
• How to Disable the Automatic Loading of the default DICOM IOD Table

Example

The first example removes a class from the IOD table
The second example removes a module from the IOD table.
The third example removes an element from the IOD table.

L_INT DicomDeleteIODExample1(L_VOID)
{
   pDICOMIOD pClass;

   pClass = L_DicomFindClassIOD(CLASS_CT_IMAGE_STORAGE);
   if (pClass != NULL)
      L_DicomDeleteIOD(pClass);
   return DICOM_SUCCESS;
}

L_INT DicomDeleteIODExample2(L_VOID)
{
   pDICOMIOD pModule;

   pModule = L_DicomFindModuleIOD(CLASS_US_IMAGE_STORAGE, MODULE_GENERAL_STUDY);
   if (pModule != NULL)
      L_DicomDeleteIOD(pModule);

   return DICOM_SUCCESS;
}

L_INT DicomDeleteIODExample3(L_VOID)
{
   pDICOMIOD pModule;
   pDICOMIOD pElement;

   pModule = L_DicomFindModuleIOD(CLASS_NM_IMAGE_STORAGE, MODULE_PATIENT_STUDY);
   if (pModule != NULL)
   {
      pElement = L_DicomGetChildIOD(pModule);
      if (pElement != NULL)
         L_DicomDeleteIOD(pElement);
   }

   return DICOM_SUCCESS;
}
