L_DicomGetFirstIOD

Summary

Returns a pointer to the first item in the IOD Structure. The result depends on whether the IOD Structure is evaluated as a tree or a list.

Syntax

#include "Ltdic.h"

L_LTDIC_API pDICOMIOD L_DicomGetFirstIOD(pIOD, bTree)

Parameters

pDICOMIOD pIOD

Pointer to a DICOMIOD structure within the IOD Structure. A pointer to the DICOMIOD structure that contains the first item in the IOD Structure will be returned.

L_BOOL bTree

Flag that indicates how the IOD Structure will be evaluated. Possible values are:

Value Meaning
TRUE Evaluate the IOD Structure as a tree.
FALSE Evaluate the IOD Structure as a list.

Returns

Value Meaning
!NULL A pointer to a DICOMIOD structure that contains the first item in the IOD Structure.
NULL The IOD Structure is empty.

Comments

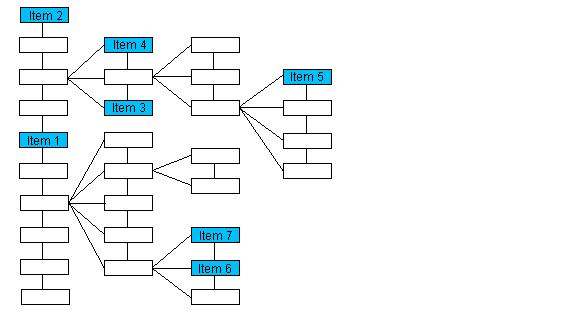

If the IOD Structure is evaluated as a tree structure, this function returns the first item on the same level as pIOD with the same parent as pIOD. Please note that the numbering of the items in this first illustration is arbitrary and does not imply order.

If the passed pointer points to The function returns a pointer to
Item 1 Item 2
Item 3 Item 4
Item 5 Item 5
Item 6 Item 7
NULL Item 2

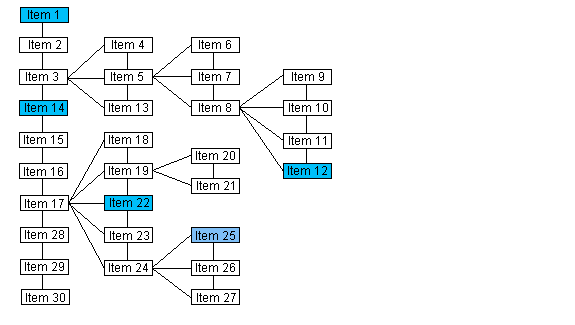

If the IOD Structure is evaluated as a list, the first item in the list is returned. Please note that the numbering of the items in this illustration does indicate the order of the items when the IOD Structure is evaluated as a list.

If the passed pointer points to The function returns a pointer to
NULL Item 1
Item 12 Item 1
Item 14 Item 1
Item 22 Item 1
Item 25 Item 1

The following functions will also help you navigate the IOD Structure as either a tree or a list:

If you evaluate the IOD Structure as a tree, you can also use the following functions to navigate the tree:

Required DLLs and Libraries

Platforms

Win32, x64, Linux.

See Also

Functions

Topics

Example

This example displays in a tree control the list of the IOD table

L_VOID ShowList(HWND hDlg)
{
   TV_INSERTSTRUCT tvInsert;
   TV_ITEM         tvItem;
   HTREEITEM       hItem;
   pDICOMIOD       pIOD;

   pIOD = L_DicomGetFirstIOD(NULL, FALSE);

   while (pIOD != NULL)
   {
      tvItem.mask           = TVIF_TEXT;
      tvItem.pszText        = pIOD->pszName;
      tvInsert.hParent      = TVI_ROOT;
      tvInsert.hInsertAfter = TVI_LAST;
      tvInsert.item         = tvItem;

      hItem = (HTREEITEM)SendMessage(hDlg, TVM_INSERTITEM, (WPARAM)0,
                                     (LPARAM)(LPTV_INSERTSTRUCT)&tvInsert);

      pIOD = L_DicomGetNextIOD(pIOD, FALSE);
   }
}

L_INT DicomGetFirstIODExample(HWND hDlg)
{
   ShowList(hDlg);
   return DICOM_SUCCESS;
}
