BricksTextureCommand Class

Summary

Creates a brick texture that makes the image look like it has been drawn on a brick wall. This command is available in the Imaging Pro and above toolkits.

Syntax

WinRT C#

C++

public class BricksTextureCommand : RasterCommand


Public Class BricksTextureCommand
   Inherits Leadtools.Imageprocessing.Leadtools.ImageProcessing.RasterCommand
   Implements Leadtools.Imageprocessing.Leadtools.ImageProcessing.IRasterCommand

public sealed class BricksTextureCommand : Leadtools.Imageprocessing.Leadtools.ImageProcessing.IRasterCommand

function Leadtools.ImageProcessing.SpecialEffects.BricksTextureCommand()

public ref class BricksTextureCommand : public Leadtools.Imageprocessing.Leadtools.ImageProcessing.RasterCommand, Leadtools.Imageprocessing.Leadtools.ImageProcessing.IRasterCommand

Remarks

This command creates a brick-like texture. Edges that are in the angle of the light source are brightened and the others are darkened. Apply this texture to an image by using image as the source image. You can obtain the best result by applying this command on a medium brightness image.
Using the shading option of BricksTextureCommandFlags.SmoothedOutEdges results in bricks that have a more chiseled look than the same settings with a shading option of BricksTextureCommandFlags.SmoothedInEdges.
As an example, suppose you were to start with a gray image, like the following figure:
Now suppose you call the BricksTextureCommand command. The following settings apply to all of the following figures:

Parameter	Value
OffsetX	0
OffsetY	0
RowDifference	35
BricksWidth	60
BricksHeight	20

If you were to use the following additional settings:

Parameter	Value
MortarRoughness	0
MortarRoughnessEvenness	0
BricksRoughness	0
BricksRoughnessEvenness	0
Flags	BricksTextureCommandFlags.SmoothedOutEdges

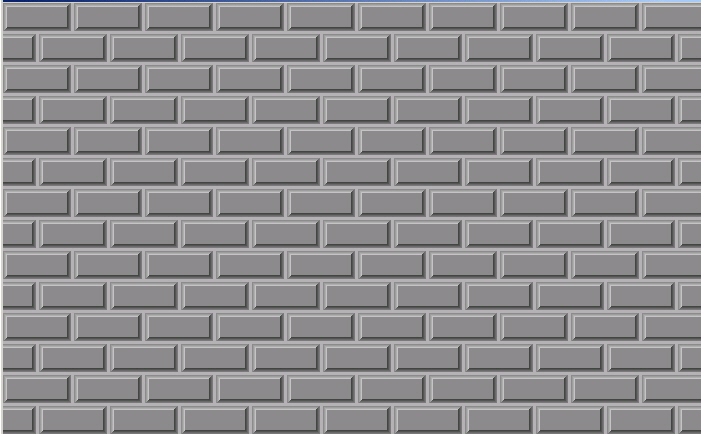

The following figure results:

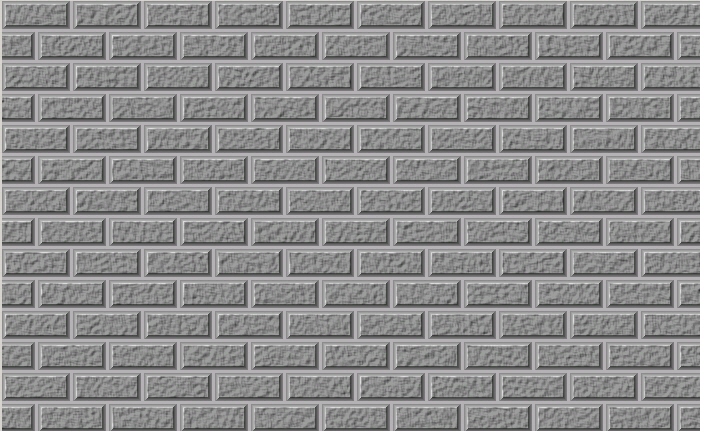

Note how smooth the surface of both the mortar and the bricks is. In the following figure, the only change from the previous settings is the value of BricksRoughness, which is set to 196:

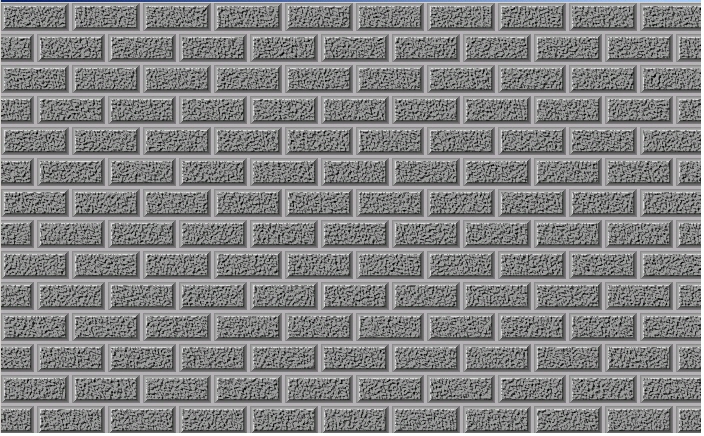

In the following figure, BricksRoughness remains set to 196 and in addition, BricksRoughnessEvenness is set to 4:
The next two figures show the difference between the BricksTextureCommandFlags.SmoothedOutEdges flag and the BricksTextureCommandFlags.SmoothedInEdges flag. For these figures the following settings are used:

Parameter	Value
MortarRoughness	0
MortarRoughnessEvenness	0
BricksRoughness	250
BricksRoughnessEvenness	0
EdgeWidth	7
MortarWidth	4

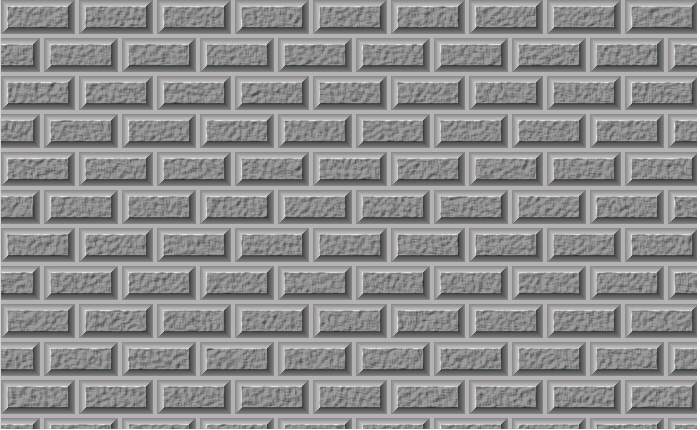

In the following figure the BricksTextureCommandFlags.SmoothedOutEdges flag is set:

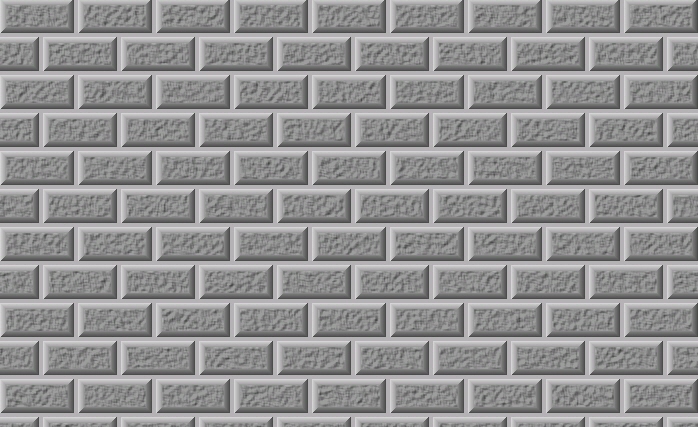

In the following figure the BricksTextureCommandFlags.SmoothedInEdges flag is set:
This command supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit color images is available only in the Document/Medical toolkits.
This command does not support signed data images.
This command does not support 32-bit grayscale images.

For more information Refer to Applying Artistic Effects.

Example

Run the BricksTextureCommand on an empty gray image.

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.SpecialEffects;

public void BricksCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "ImageProcessingDemo\\Image3.cmp"));

   // Prepare the command
   FillCommand cmd = new FillCommand(new RasterColor(128, 128, 128));
   cmd.Run(image);
   BricksTextureCommand command = new BricksTextureCommand();
   command.BricksWidth = 60;
   command.BricksHeight = 20;
   command.OffsetX = 0;
   command.OffsetY = 0;
   command.EdgeWidth = 3;
   command.MortarWidth = 4;
   command.ShadeAngle = 315;
   command.RowDifference = 33;
   command.MortarRoughness = 20;
   command.MortarRoughnessEvenness = 0;
   command.BricksRoughness = 10;
   command.BricksRoughnessEvenness = 0;
   command.MortarColor = new RasterColor(0, 0, 0);
   command.Flags = BricksTextureCommandFlags.SmoothedOutEdges | BricksTextureCommandFlags.TransparentMortar;
   //Apply Bricks Texture on the image.
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}

Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing
Imports Leadtools.ImageProcessing.SpecialEffects
      Leadtools.Examples.Support.SetLicense()

Public Sub BricksCommandExample()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "ImageProcessingDemo\\Image3.cmp"))

   ' Prepare the command
   Dim cmd As New FillCommand(New RasterColor(128, 128, 128))
   cmd.Run(leadImage)
   Dim command As BricksTextureCommand = New BricksTextureCommand
   command.BricksWidth = 60
   command.BricksHeight = 20
   command.OffsetX = 0
   command.OffsetY = 0
   command.EdgeWidth = 3
   command.MortarWidth = 4
   command.ShadeAngle = 315
   command.RowDifference = 33
   command.MortarRoughness = 20
   command.MortarRoughnessEvenness = 0
   command.BricksRoughness = 10
   command.BricksRoughnessEvenness = 0
   command.MortarColor = New RasterColor(0, 0, 0)
   command.Flags = BricksTextureCommandFlags.SmoothedOutEdges Or BricksTextureCommandFlags.TransparentMortar
   'Apply Bricks Texture on the Image.
   command.Run(leadImage)
   codecs.Save(leadImage, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24)

End Sub

Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class
