PlaneBendCommand Class

Summary

Places the image on parallel planes along the Z-axis, and bends the planes toward the center point. This command is available in the Imaging Pro and above toolkits.

Syntax

WinRT C#

C++

public class PlaneBendCommand : RasterCommand


Public Class PlaneBendCommand
   Inherits Leadtools.Imageprocessing.Leadtools.ImageProcessing.RasterCommand
   Implements Leadtools.Imageprocessing.Leadtools.ImageProcessing.IRasterCommand

public sealed class PlaneBendCommand : Leadtools.Imageprocessing.Leadtools.ImageProcessing.IRasterCommand

function Leadtools.ImageProcessing.SpecialEffects.PlaneBendCommand()

public ref class PlaneBendCommand : public Leadtools.Imageprocessing.Leadtools.ImageProcessing.RasterCommand, Leadtools.Imageprocessing.Leadtools.ImageProcessing.IRasterCommand

Remarks

This command shows the effect of placing images on planes along the Z-axis and bending them toward a specific point. These images may be placed above, below, to the left or to the right of the Z-axis. An external light source of the specified color and brightness may be shined on the images. The brightness may vary along the z-axis according to the bright length value. The line of images may be bent toward a specific point by setting a bending value.
By changing the center point and the viewing screen Z-offset, you can simulate moving along the axis.
If the image has a region, the effect will be applied on the region dimensions only.
For an example, see the following figure:

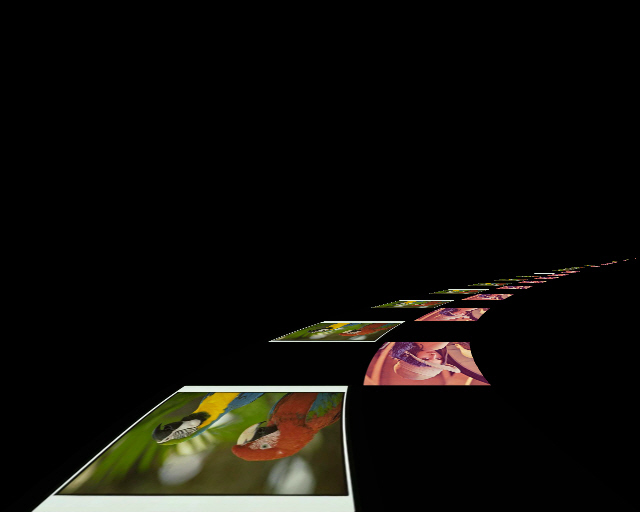

The following figure shows the same image, after the effect has been applied:

To obtain this effect, the following settings were used with the method:
1. CenterPoint = new Leadtools.LeadPoint(640, 256)
2. ZValue = 0
3. Distance = 256
4. PlaneOffset = 256
5. Repeat = -1
6. PyramidAngle = 0
7. Stretch = 100
8. BendFactor = 500
9. StartBright = 0
10. EndBright = 0
11. BrightLength = 50
12. BrightColor = new Leadtools.RasterColor(255, 255, 255)
13. FillColor = new Leadtools.RasterColor(0, 0, 0)
14. Flags = PlaneCommandFlags.Down | PlaneCommandFlags.Color
15. This command does not support 32-bit grayscale images.
This command supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit color images is available only in the Document/Medical toolkits.
This command does not support signed data images.

For more information, refer to Introduction to Image Processing With LEADTOOLS. For more information, refer to Correcting Colors.

Example

Run the PlaneBendCommand on an image.

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.SpecialEffects;

public void PlaneBendCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));

   // Prepare the command
   PlaneBendCommand command = new PlaneBendCommand();
   command.CenterPoint = new LeadPoint(image.Width / 2, image.Height / 2);
   command.ZValue = 0;
   command.Distance = image.Height;
   command.PlaneOffset = image.Width / 2;
   command.Repeat = -1;
   command.PyramidAngle = 0;
   command.Stretch = 100;
   command.BendFactor = 400;
   command.StartBright = 0;
   command.EndBright = 100;
   command.BrightLength = 20000;
   command.BrightColor = new RasterColor(255, 255, 255);
   command.FillColor = new RasterColor(0, 0, 0);
   command.Flags = PlaneCommandFlags.Down | PlaneCommandFlags.Up | PlaneCommandFlags.Color;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}

Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing.SpecialEffects
      Leadtools.Examples.Support.SetLicense()

Public Sub PlaneBendCommandExample()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"))

   ' Prepare the command
   Dim command As PlaneBendCommand = New PlaneBendCommand
   command.CenterPoint = New LeadPoint(leadImage.Width \ 2, leadImage.Height \ 2)
   command.ZValue = 0
   command.Distance = leadImage.Height
   command.PlaneOffset = leadImage.Width \ 2
   command.Repeat = -1
   command.PyramidAngle = 0
   command.Stretch = 100
   command.BendFactor = 400
   command.StartBright = 0
   command.EndBright = 100
   command.BrightLength = 20000
   command.BrightColor = New RasterColor(255, 255, 255)
   command.FillColor = New RasterColor(0, 0, 0)
   command.Flags = PlaneCommandFlags.Down Or PlaneCommandFlags.Up Or PlaneCommandFlags.Color
   command.Run(leadImage)
   codecs.Save(leadImage, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24)

End Sub

Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class
