FreePlaneBendCommand Class

Summary

Wraps the image onto a 3D plane shaped by Curve. This command is available in the Imaging Pro and above toolkits.

Syntax

WinRT C#

C++

public class FreePlaneBendCommand : RasterCommand


Public Class FreePlaneBendCommand
   Inherits Leadtools.Imageprocessing.Leadtools.ImageProcessing.RasterCommand
   Implements Leadtools.Imageprocessing.Leadtools.ImageProcessing.IRasterCommand

public sealed class FreePlaneBendCommand : Leadtools.Imageprocessing.Leadtools.ImageProcessing.IRasterCommand

function Leadtools.ImageProcessing.SpecialEffects.FreePlaneBendCommand()

public ref class FreePlaneBendCommand : public Leadtools.Imageprocessing.Leadtools.ImageProcessing.RasterCommand, Leadtools.Imageprocessing.Leadtools.ImageProcessing.IRasterCommand

Remarks

If the image has a region, the effect will be applied on the region only.

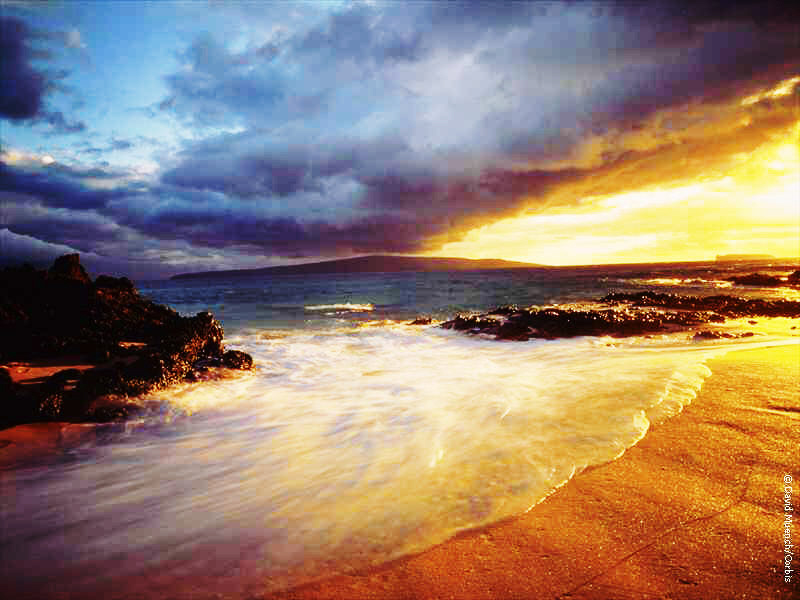

For an example, the following figure shows an image before the effect is applied.

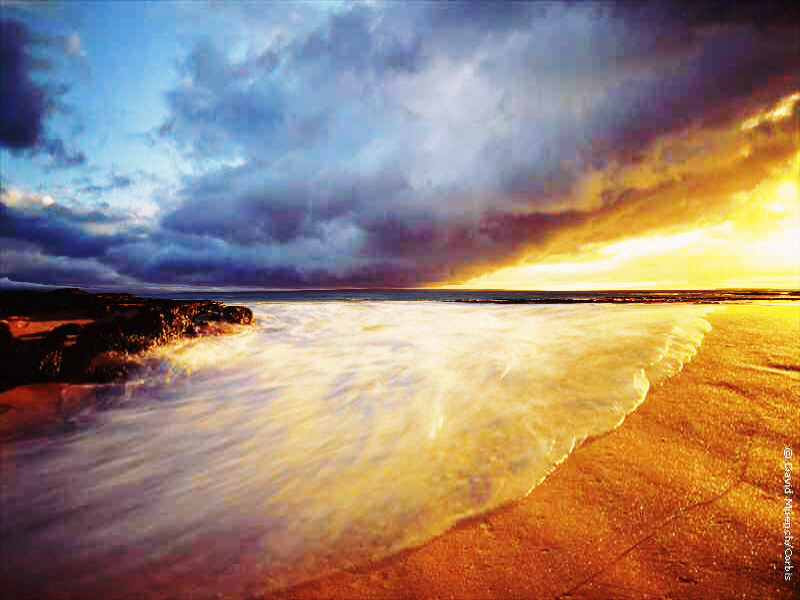

The following figure shows the same image after the effect has been applied.
This command supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit color images is available only in the Document/Medical toolkits.
This command does not support signed data images.
This command does not support 32-bit grayscale images.

Example

Run the FreePlaneBendCommand on an image.

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.SpecialEffects;
using Leadtools.ImageProcessing.Effects;

public void FreePlaneBendCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));

   // Prepare the command
   FreePlaneBendCommand command = new FreePlaneBendCommand();
   LeadPoint[] UserPoint = new LeadPoint[4];
   int[] Curve = new int[13];

   //Apply the filter
   UserPoint[0].X = 0;
   UserPoint[0].Y = 0;
   UserPoint[1].X = 3;
   UserPoint[1].Y = 10;
   UserPoint[2].X = 9;
   UserPoint[2].Y = -10;
   UserPoint[3].X = 12;
   UserPoint[3].Y = 0;

   EffectsUtilities.GetCurvePoints(Curve, UserPoint, CurvePointsType.Linear);
   for (int i = 0; i < Curve.Length; i++)
      Curve[i] /= 50;
   command.Flags = FreePlaneBendCommandFlags.Color | FreePlaneBendCommandFlags.Vertical;
   command.Scale = 200;
   command.FillColor = new RasterColor(255, 0, 0);
   command.Curve = Curve;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}

Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing.SpecialEffects
Imports Leadtools.ImageProcessing.Effects
      Leadtools.Examples.Support.SetLicense()

Public Sub FreePlaneBendCommandExample()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"))

   ' Prepare the command
   Dim command As FreePlaneBendCommand = New FreePlaneBendCommand
   Dim UserPoint() As LeadPoint
   ReDim UserPoint(3)

   Dim Curve() As Integer
   ReDim Curve(12)

   'Apply the filter
   UserPoint(0).X = 0
   UserPoint(0).Y = 0
   UserPoint(1).X = 3
   UserPoint(1).Y = 10
   UserPoint(2).X = 9
   UserPoint(2).Y = -10
   UserPoint(3).X = 12
   UserPoint(3).Y = 0

   EffectsUtilities.GetCurvePoints(Curve, UserPoint, CurvePointsType.Linear)
   command.Flags = FreePlaneBendCommandFlags.Color Or FreePlaneBendCommandFlags.Vertical
   command.Scale = 200
   command.FillColor = New RasterColor(255, 0, 0)
   command.Curve = Curve
   command.Run(leadImage)
   codecs.Save(leadImage, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24)

End Sub

Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class
