PACS Framework Client Server Diagram

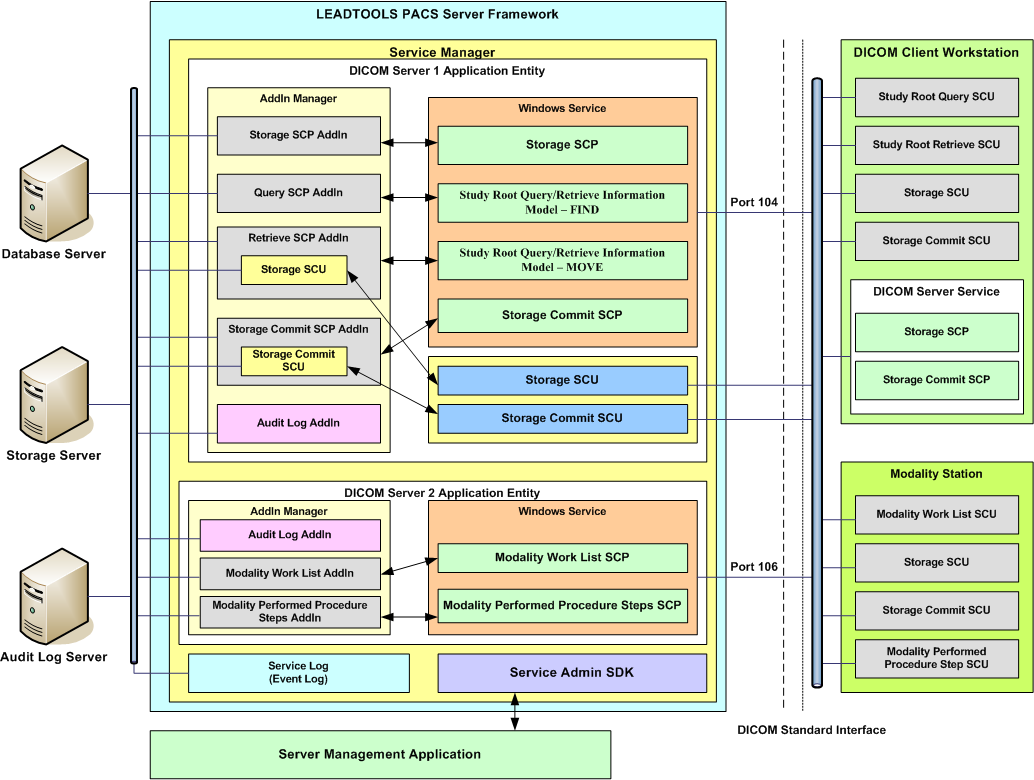

The following diagram shows the PACS Framework:

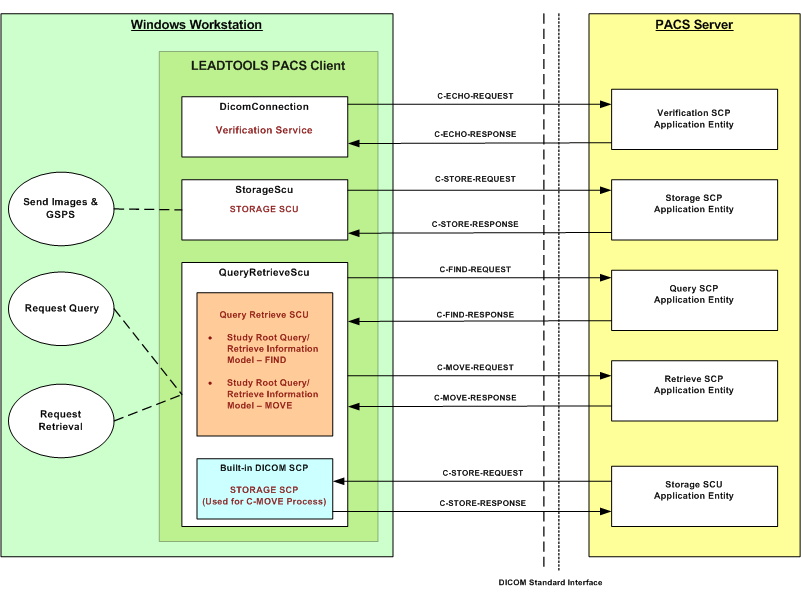

The following diagram shows how the Leadtools.Dicom.Scu interacts with a PACS server:
System Requirements
In order to use the PACS Framework you will need the following components:
- .NET Framework 4.0
- Microsoft Unity 1.1
In addition, to run and compile the samples you need the following applications:
- Visual Studio 2008 or later
- SQL Compact Edition 3.5
In addition to the above requirements, the logging add-in requires the following application:
- Microsoft Enterprise Library Logging 4.0
