Detect and Extract MRTD - Android Java

This tutorial shows how to create an MRTD extraction and processing application in Android using the LEADTOOLS SDK.

Required Knowledge

Get familiar with the basic steps of creating a project and working with the OcrEngine by reviewing the Add References and Set a License and Recognize-Text-from-Images with OCR tutorials, before working on the Detect and Extract MRTD - Android Java tutorial.

Create the Project and add the Maven artifacts

Start with a copy of the project created in the Display Images in an Image Viewer tutorial. If you do not have that project, follow the steps in that tutorial to create it.

Ensure that you add the needed Artifacts to the project.

For a complete list of which LEADTOOLS libraries are required for your application, refer to Files to be Included With Your Application.

Set the License File

The License unlocks the features needed for the project. It must be set before any toolkit function is called. For details, including tutorials for different platforms, refer to Setting a Runtime License.

There are two types of runtime licenses:

• Evaluation license, obtained at the time the evaluation toolkit is downloaded. It allows the toolkit to be evaluated.
• Deployment license. If a Deployment license file and developer key are required, refer to Obtaining a License.

Set the Application Layout

In the Project Explorer window, open the activity_main.xml file found in the app/src/main/res/layout directory. Below the RasterImageViewer XML code add a new RUN OCR button.

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:weightSum="1.0"
    android:background="@android:color/black">

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Select Image From Gallery"
        android:onClick="onSelectImage"/>

    <leadtools.controls.RasterImageViewer
        android:id="@+id/rasterimageviewer"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight=".96"
        android:background="@android:color/white"/>

    <Button
        android:id="@+id/button"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Read MRTD"
        android:onClick="readMRTD"/>
</LinearLayout>

Add the MRTD Detection and Extraction Code

In MainActivity.java, add the following import statements before the MainActivity class.

import leadtools.forms.commands.MRTDErrors;
import leadtools.forms.commands.MRTDReader;

Add the following member variables to the MainActivity class.

private MRTDReader mrtdReader;

Update the onCreate() function as shown below.

@Override
 protected void onCreate(Bundle savedInstanceState) {
     super.onCreate(savedInstanceState);
     setContentView(R.layout.activity_main);

     mrtdReader = new MRTDReader();
 }

Create a readMRTD(View v) function to detect if an MRTD or MRZ is present. If one is present parse the value.

public void readMRTD(View v )
{
    RasterImage image = mViewer.getImage();

    if(image != null)
    {
        try
        {
            mrtdReader.setOcrEngine(ocrEngine);
            mrtdReader.processImage(image);
            {
                if (mrtdReader.getErrors() == MRTDErrors.NO_ERROR.getValue())
                    for (var val : mrtdReader.getResults().entrySet())
                    {
                        sb.append(val.getKey().toString());
                        sb.append(val.getValue().getReadableValue());
                        sb.append(val.getValue().getMrzCharacters());
                        sb.append((val.getValue().isValid()));
                        sb.append("\n\n");
                    }
                if(sb.length() != 0)
                {
                    Toast.makeText(this, sb.toString(), Toast.LENGTH_LONG).show();
                }
                else
                {
                    Toast.makeText(this, "No detection found: " + mrtdReader.getErrors(), Toast.LENGTH_LONG).show();
                }
            }
        }

        catch(Exception ex){
            Toast.makeText(this, ex.getMessage(), Toast.LENGTH_LONG).show();
        }
    }
    else
    {
        Toast.makeText(this, "No File Is Loaded", Toast.LENGTH_LONG).show();
    }
}

Run the Project

Press Shift + F10 to run the application. Follow the steps below to test the application.

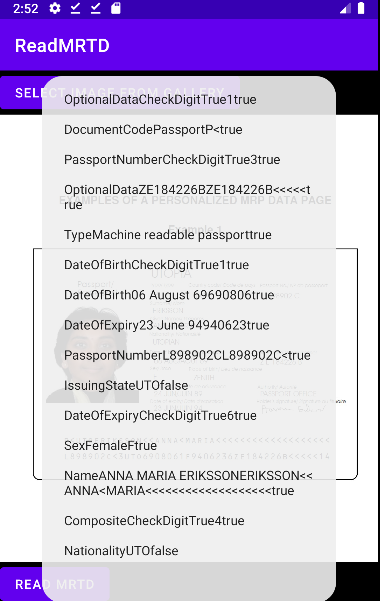

• On the device, select the SELECT IMAGE FROM GALLERY button to load in an image.

• Select the READ MRTD CODE button to read the image and output the results.



Wrap-up

This tutorial showed how to use the MRTDReader class to read MRZ and MRTD data.
