LEAD Video EFX Glass Tile Filter User Interface

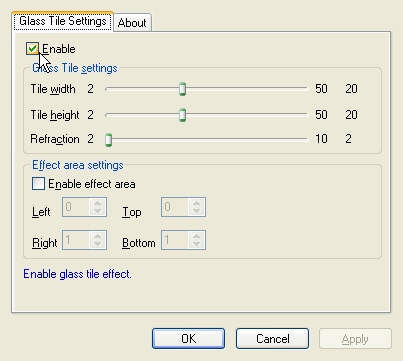

The Video EFX Glass Tile Filter gives a video the appearance of being viewed through glass tiles. Its property page is shown in the figure below:

The Video EFX Glass Tile Filter property page provides a user interface for changing the filter's attributes.

Changes will be applied directly to the streaming media with the ability to set them permanently by selecting Apply or OK, or to abandon changes by selecting Cancel. Positioning the mouse pointer over a control displays general information for that control. The following table shows the controls and their descriptions:

Control	Description
Enable check box	Enables/Disables the effect.
Tile Width slider	Width of each glass tile. Range: 2 to 50.
Tile Height slider	Height of each glass tile. Range: 2 to 50.
Refraction slider	Controls the reflection of the frame in to the glass tiles. Range: 2 to 10.
Enable effect area check box	Enables/Disables the effect for a cropped video area. Area limits are set using the Left, Top, Right and Bottom controls.
Left spin edit control	Left boundary of the effect area.
Top spin edit control	Top boundary of the effect area.
Right spin edit control	Right boundary of the effect area.
Bottom spin edit control	Bottom boundary of the effect area.
