LEAD Video EFX Motion Mosaic Filter User Interface

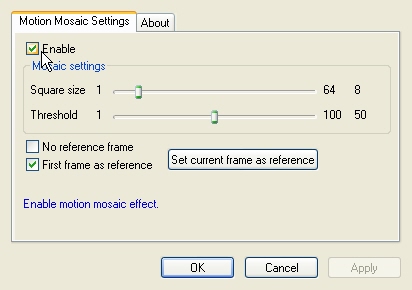

The Video EFX Motion Mosaic Filter conceals moving objects by giving each object a "blocky" appearance. The property page is shown in the figure below:
The Video EFX Motion Mosaic Filter property page provides a user interface for changing the filter's attributes.
Changes will be applied directly to the streaming media with the ability to set them permanently by selecting Apply or OK, or to abandon changes by selecting Cancel. Positioning the mouse pointer over a control displays general information for that control. The following table shows the controls and their descriptions:
| Control | Description |
|---|---|
| Enable check box | Enables/Disables the effect. |
| Size slider | Size of the mosaic square in pixels. Range: 1 to 64. |
| Enable effect area check box | Enables/Disables the effect for a cropped video area. Area limits are set using the Left, Top, Right and Bottom controls. |
| Left spin edit control | Left boundary of the effect area. |
| Top spin edit control | Top boundary of the effect area. |
| Right spin edit control | Right boundary of the effect area. |
| Bottom spin edit control | Bottom boundary of the effect area. |
