Filters, Codecs, and Interfaces > Video Filters > EFX Rain Filter > LEAD Video EFX Rain Filter User Interface

LEAD Video EFX Rain Filter User Interface

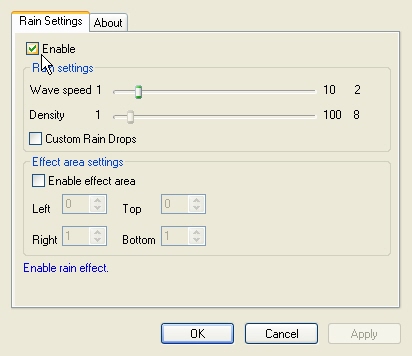

The Video EFX Rain Filter adds rain drops to the video, as if the video were a pool of water. The property page is shown in the figure below:

The Video EFX Rain Filter property page provides a user interface for changing the filter's attributes.

Changes will be applied directly to the streaming media with the ability to set them permanently by selecting Apply or OK, or to abandon changes by selecting Cancel. Positioning the mouse pointer over a control displays general information for that control. The following table shows the controls and their descriptions:

Control	Description
Enable check box	Enables/Disables the effect.
Wave speed slider	Controls the wave speed. Increasing this value results in decreasing the wave lifetime (faster waves). Range: 1 to 10.
Density slider	Controls the density of the rain added to a single frame. This is used only if Custom Rain Drops is selected. Range: 1 to 100.
Enable effect area check box	Enables/Disables the effect for a cropped video area. Area limits are set using the Left, Top, Right and Bottom controls.
Left spin edit control	Left boundary of the effect area.
Top spin edit control	Top boundary of the effect area.
Right spin edit control	Right boundary of the effect area.
Bottom spin edit control	Bottom boundary of the effect area.
