Draw and Edit Annotations on Images - WinForms C# .NET 6

This tutorial shows how to use the automated annotation features of the LEADTOOLS SDK in a WinForms C# .NET 6 application.

Overview
Summary This tutorial covers automated annotation features in a C# WinForms Application.
Completion Time 30 minutes
Visual Studio Project Download tutorial project (8 KB)
Platform WinForms C# Application
IDE Visual Studio 2022
Development License Download LEADTOOLS
Try it in another language
  • C#: .NET 6+ (WinForms), WPF

Required Knowledge

Before working on the Draw and Edit Annotations on Images - WinForms C# tutorial, get familiar with the basic steps of creating a project by reviewing the Add References and Set a License tutorial.

Create the Project and Add LEADTOOLS References

Start with a copy of the project created in the Add References and Set a License tutorial. If you do not have that project, follow the steps in that tutorial to create it.

The references needed depend upon the purpose of the project. References can be added by one or the other of the following two methods (but not both). For this project, the following references are needed:

If NuGet references are used, this tutorial requires the following NuGet packages:

If local DLL references are used, the following DLLs are needed.

The DLLs are located at <INSTALL_DIR>\LEADTOOLS23\Bin\net:

For a complete list of which DLL files are required for your application, refer to Files to be Included with your Application.

Set the License File

The License unlocks the features needed for the project. It must be set before any toolkit function is called. For details, including tutorials for different platforms, refer to Setting a Runtime License.

There are two types of runtime licenses:

Note: Adding LEADTOOLS NuGets and local references, and setting a license are covered in more detail in the Add References and Set a License tutorial.

Add the Automation Annotation Code

With the project created, the references added, and the license set, coding can begin.

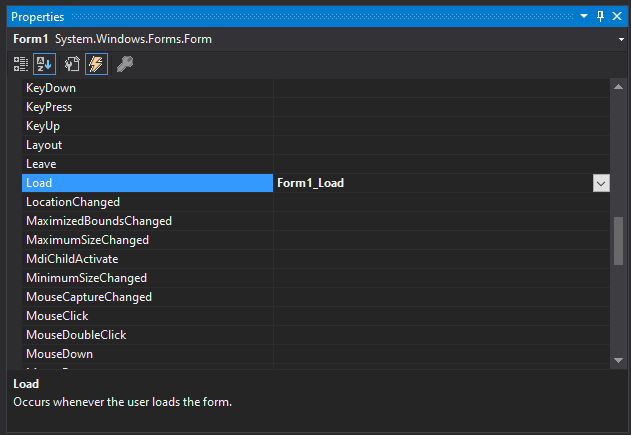

Go to Form1.cs in the Solution Explorer. Click the Events icon in the Properties Windows. Then, double-click the Load event to create an event handler.

Creating a Load event

Add the following code to the using block and the global variables.

C#
using Leadtools;
using Leadtools.Controls;
using Leadtools.Codecs;
using Leadtools.Annotations.Automation;
using Leadtools.Annotations.WinForms;
C#
private ImageViewer _viewer;
private ImageViewerAutomationControl _automationControl;
private AnnAutomationManager _annAutomationManager;
private AnnAutomation _automation;

Add the following code inside the Form1_Load event handler.

C#
private void Form1_Load(object sender, EventArgs e)
{
   // Initialize Image Viewer object
   _viewer = new ImageViewer();
   _viewer.Dock = DockStyle.Fill;

   // Initialize Automation Control for Image Viewer
   _automationControl = new ImageViewerAutomationControl();
   _automationControl.ImageViewer = _viewer;

   // Initialize a new RasterCodecs object
   RasterCodecs codecs = new();

   // Load the main image into the viewer
   _viewer.Image = codecs.Load(@"C:\LEADTOOLS23\Resources\Images\ocr1.tif");

   // Initialize the Interactive Mode for the Image Viewer
   AutomationInteractiveMode automationInteractiveMode = new();
   automationInteractiveMode.AutomationControl = _automationControl;

   // Add the Interactive Mode to the Image Viewer
   _viewer.InteractiveModes.BeginUpdate();
   _viewer.InteractiveModes.Add(automationInteractiveMode);
   _viewer.InteractiveModes.EndUpdate();

   if (viewer.Image != null)
   {
      // Create and set up the Automation Manager
      _annAutomationManager = new AnnAutomationManager();
      _annAutomationManager.RestrictDesigners = true;

      // Instruct the Manager to create all the default Automation objects.
      _annAutomationManager.CreateDefaultObjects();

      // Initialize the Manager Helper and create the Toolbar
      // Add the Toolbar and the Image Viewer to the Controls
      AutomationManagerHelper managerHelper = new AutomationManagerHelper(annAutomationManager);
      managerHelper.CreateToolBar();
      Controls.Add(managerHelper.ToolBar);
      Controls.Add(_viewer);

      // Set up the Automation (it will create the Container as well)
      _automation = new AnnAutomation(_annAutomationManager, _automationControl);
      // Set this Automation as the active one
      _automation.Active = true;

      // Set the size of the Container to the size of the Image Viewer
      _automation.Container.Size = automation.Container.Mapper.SizeToContainerCoordinates(LeadSizeD.Create(_viewer.Image.ImageWidth, _viewer.Image.ImageHeight));
   }
}

This tutorial uses this sample image from the LEADTOOLS Images folder here: <INSTALL_DIR>\LEADTOOLS23\Resources\Images.

Run the Project

Run the project by pressing F5, or by selecting Debug -> Start Debugging.

If the steps were followed correctly, the application runs and the sample image is loaded into the viewer. Any of the annotations on the toolbar can be selected and used to draw on the image. The following image shows an example of a portion of the image in the viewer, with the annotation toolbar at the top of the viewer.

Viewer showing some annotations drawn on an image

Wrap-up

This tutorial showed how to use the ImageViewerAutomationControl, AnnAutomationManager, AnnAutomation, and AutomationInteractiveMode classes.

See Also
