Run the LEADTOOLS Medical Web Viewer External Controller Demo - WinForms C#
This tutorial shows how to run the LEADTOOLS Medical Web Viewer External Controller Demo.
| Overview | |
|---|---|
| Summary | This tutorial covers how to run the C# WinForms Medical Web Viewer External Controller. |
| Completion Time | 15 minutes |
| Platform | C# Windows WinForms Application |
| IDE | Visual Studio 2022 |
| Development License | Download LEADTOOLS |
| Try it in another language |
|
Required Knowledge
Before any functionality from the SDK can be leveraged, a valid runtime license will have to be set.
For instructions on how to obtain a runtime license refer to Obtaining a License.
Medical Web Viewer
The LEADTOOLS Medical Web Viewer is required to be set up before using the External Controller, refer to Install and Configure the LEADTOOLS Medical Web Service.
Demo Walkthrough
Navigate to the example source code for the project:
<INSTALL_DIR>\LEADTOOLS23\Examples\Medical\JS\MedicalWebViewer\ExternalControlSample\fx\ExternalControlSample.csproj
Open the project using administrator rights, as this will be needed to run the application. To run the demo, click Start or press F5.
Login Dialog
Running the project will create the main form. A Login Dialog will appear with several configuration options, such as the use of ASP or WCF services, use of https, Medical Web Viewer browser type, and the option to input custom Service and Medical Viewer URIs.

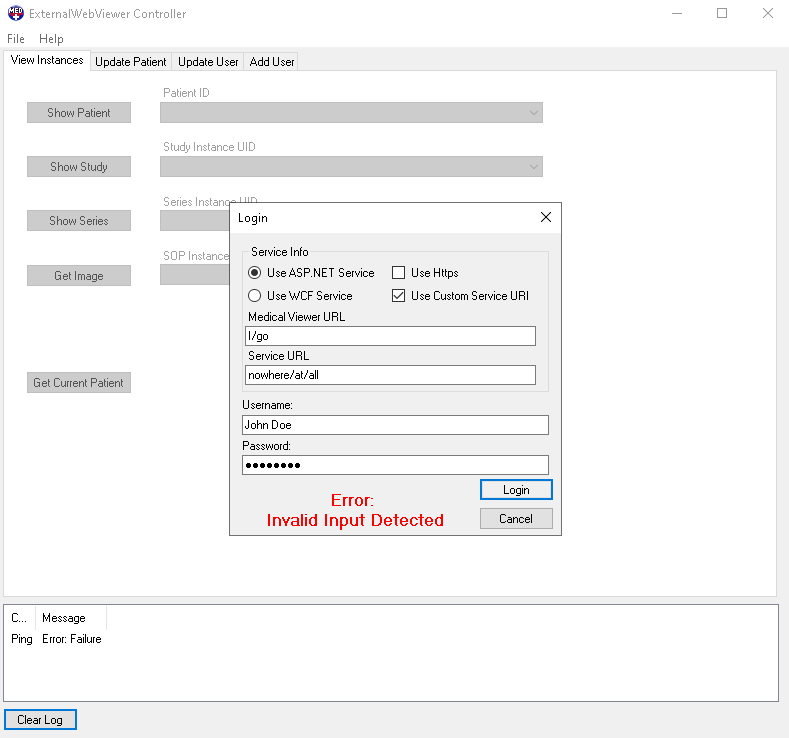

If you input a custom URI that the demo cannot ping, you will see the below error appear.
The Logger at the bottom of the window will return messages based on activity, including error messages.
Medical Web Viewer

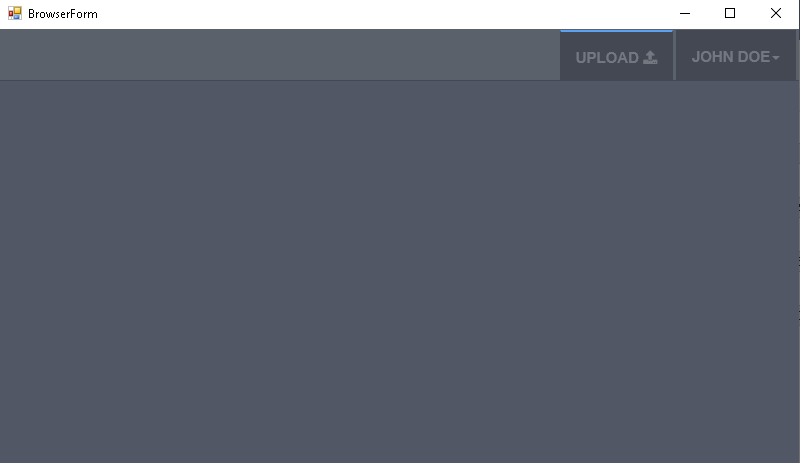

Once you log in successfully, the Medical Web Viewer will launch in another browser window. All requests for images will appear here, as well as the option to upload files to the database.

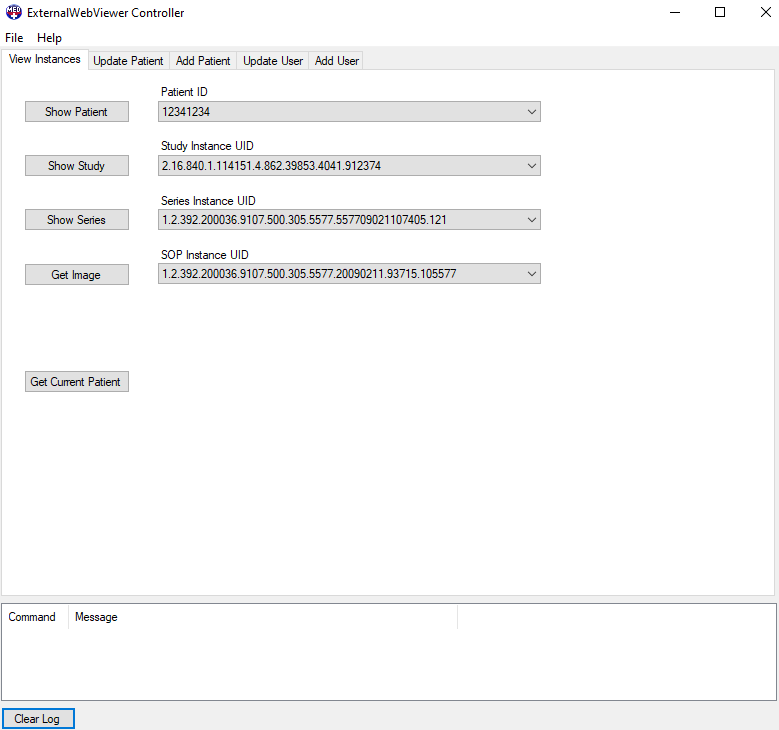

View Instances Tab

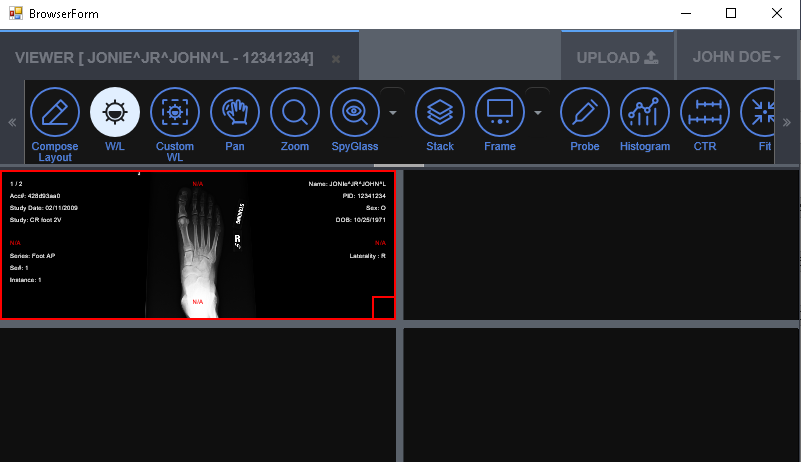

The View Instances Tab holds the controls for viewing patient information and where the images will be returned to the Medical Web Viewer.

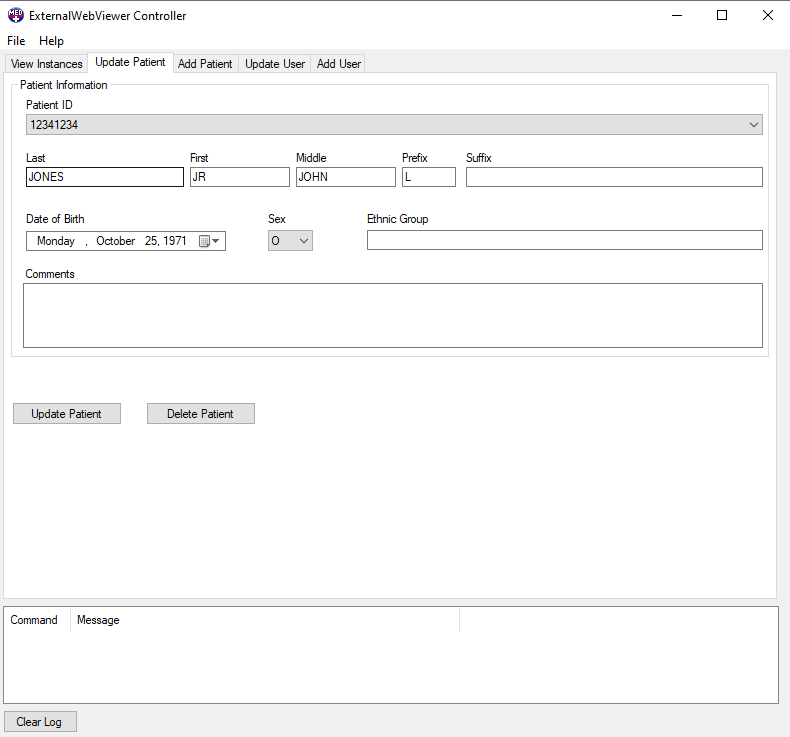

Update Patient
The Update Patient Tab holds the controls for changing patient information or deleting a patient entry.
Update User
The Update User Tab holds the controls for updating users such as changing permissions and deleting accounts.
Add User
The Add User Tab holds the controls for adding new users.
Wrap-up
This tutorial showed how to run and use the WinForms C# Implementation of the External Controller Demo.
