Write 1D and 2D Barcodes to an Image - Python

This tutorial shows how to write barcodes onto an image and save the file in a Python application using the LEADTOOLS SDK.

Overview
Summary This tutorial covers how to write barcodes onto an image and save the file using BarcodeEngine and BarcodeWriter classes in a Python application.
Completion Time 30 minutes
Visual Studio Project Download tutorial project (1 KB)
Platform Python Console Application
IDE Visual Studio 2022
Runtime Target Python 3.10 or Higher
Development License Download LEADTOOLS
Try it in another language

Required Knowledge

Before working on the Write 1D and 2D Barcodes to an Image - Python tutorial, get familiar with the basic steps of creating a project by reviewing the Add References and Set a License tutorial.

Create the Project and Add the LEADTOOLS References

Start with a copy of the project created in the Add References and Set a License tutorial. If you do not have that project, follow the steps in that tutorial to create it.

This tutorial requires the following .NET DLLs:

For a complete list of which DLLs are required for specific barcode features, refer to Barcode Support.

Set the License File

The License unlocks the features needed for the project. It must be set before any toolkit function is called. For details, including tutorials for different platforms, refer to Setting a Runtime License.

There are two types of runtime licenses:

Add the Barcode Writer Code

With the project created, the references added, and the license set, coding can begin.

In the Solution Explorer, open Project-Name.py and place the following references below the "Add references to LEADTOOLS" comment

Copied to clipboard
# Add references to LEADTOOLS
from leadtools import LibraryLoader
LibraryLoader.add_reference("Leadtools")
from Leadtools import *
LibraryLoader.add_reference("Leadtools.Codecs")
from Leadtools.Codecs import *
LibraryLoader.add_reference("Leadtools.Barcode")
from Leadtools.Barcode import *

Add two new methods called write_upca_barcode(image) and write_qr_barcode(image). Call them from inside the main() method as shown below.

Copied to clipboard
def main():

    Support.set_license(os.path.join(DemosTools.get_root(), "C:/LEADTOOLS23/Support/Common/License"))

    global barcode_engine
    barcode_engine = BarcodeEngine()

    image = RasterImage.Create(800, 800, 24, 300, RasterColor.White)

    write_upca_barcode(image)
    write_qr_barcode(image)
    save_image(image, r"C:\temp\Write1Dand2DBarcodes.png")

Add the below code to write UPCA and QR barcodes to a blank image and then save that image to file.

Copied to clipboard
def write_upca_barcode(image):

    data = BarcodeData()
    data.Symbology = BarcodeSymbology.UPCA
    data.Value = "01234567890"
    data.Bounds = LeadRect(10, 10, 600, 200)

    options = OneDBarcodeWriteOptions()
    options.EnableErrorCheck = True
    options.TextPosition = BarcodeOutputTextPosition.Default

    barcode_engine.Writer.WriteBarcode(image, data, options)
Copied to clipboard
def write_qr_barcode(image):

    data = QRBarcodeData()
    data.SymbolModel = QRBarcodeSymbolModel.Model1AutoSize
    data.Symbology = BarcodeSymbology.QR
    data.Value = "QR Data Value"
    data.Bounds = LeadRect(10, 250, image.ImageWidth, image.ImageHeight)

    options = QRBarcodeWriteOptions()
    options.GroupNumber = 0
    options.GroupTotal = 0
    options.XModule = 30
    options.ECCLevel = QRBarcodeECCLevel.LevelL
    options.HorizontalAlignment = BarcodeAlignment.Near
    options.VerticalAlignment = BarcodeAlignment.Near

    barcode_engine.Writer.WriteBarcode(image, data, options)
Copied to clipboard
def save_image(image, output_filename):

    codecs = RasterCodecs()
    codecs.Save(image, output_filename, RasterImageFormat.Png, 0)
    print(f"The barcodes have been written and saved to {output_filename}")

Note: This code saves the file to the C:\temp directory. Create the directory if it does not exist, or change the path to a valid folder.

Run the Project

Run the project by pressing F5, or by selecting Debug -> Start Debugging.

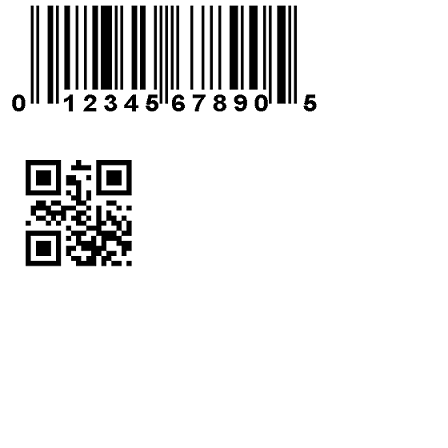

If the steps were followed correctly, the application will write the UPCA and QR barcodes to the blank RasterImage and save the image to the specified output file. The resulting RasterImage should look like the following image:

The application runs and writes the specified barcodes

Wrap-up

This tutorial showed how to create an application that writes 1D and 2D barcodes to a given image using BarcodeEngine and BarcodeWriter.
