LBitmap::EnhanceStentImage

Summary

Performs a digital stent enhancement on a sequence of X-Ray frames.

Syntax

#include "ltwrappr.h"

virtual L_INT LBitmap::EnhanceStentImage()

Returns

Value	Meaning
SUCCESS	The function was successful.
< 1	An error occurred. Refer to Return Codes.

Comments

This command enhances the visibility of the stent device by motion compensation and integrating the frames of the X-Ray sequence.

The output of the command is a referenced image containing an updated region with the motion compensation and integrated frames.

This command does not support camera motion (C-Arm motion).

To get the best result, the sequence should contain more than 40 frame.

This command supports 8, 12, 16-bit grayscale images.

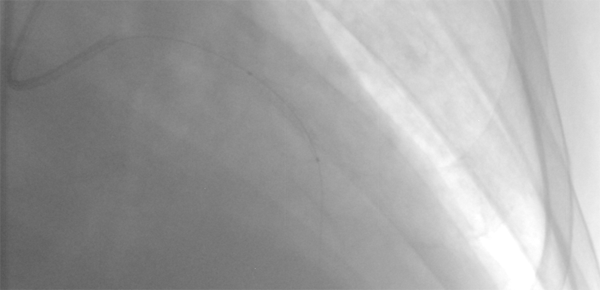

Stent Enhancement Function - Before

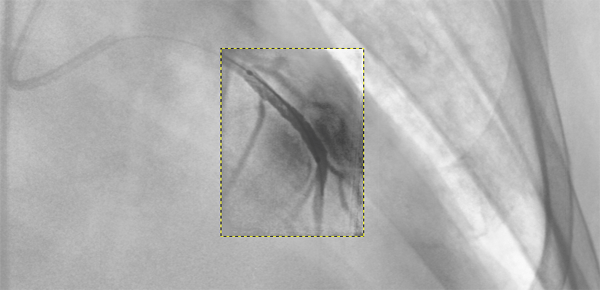

Stent Enhancement Function - After

View additional platform support for this Stent Enhancement function.

Required DLLs and Libraries

LTDIS
LTFIL
LTIMGCOR
For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application.

Platforms

Win32, x64.

Example

L_INT LBitmap__EnhanceStentImageExample()
{
   L_INT nRet;
   LBitmap LeadBitmap;      /* Bitmap handle for the image */

   nRet = LeadBitmap.Load(MAKE_IMAGE_PATH(TEXT("IMAGE1.dcm")), 0, ORDER_BGR);
   if(nRet !=SUCCESS)
      return nRet;

   //Apply enhance stent to LeadBitmap
   nRet = LeadBitmap.EnhanceStentImage();
   if(nRet !=SUCCESS)
      return nRet;

   pBITMAPHANDLE pBitmapHandle =  LeadBitmap.GetHandle();

   //free bitmap
   if(pBitmapHandle->Flags.Allocated)
      L_FreeBitmap(pBitmapHandle);

   return SUCCESS;
}
