LBitmap::GlassEffect

Summary

Divides the bitmap into rectangular cells and makes it look as if it is being viewed through glass blocks.

Syntax

#include "ltwrappr.h"

virtual L_INT LBitmap::GlassEffect(uCellWidth, uCellHeight, uFlags)

Parameters

L_UINT uCellWidth

Value that represents the width of a cell in pixels or the number of cells present across the width of the bitmap, based on the flags set in uFlags. The valid range is between 2 and half the bitmap width.

L_UINT uCellHeight

Value that represents the height of a cell in pixels or the number of cells present across the height of the bitmap, based on the flags set in uFlags. The valid range is between 2 and half the bitmap height.

L_UINT uFlags

Flags that indicate what type of data is in the uCellWidth and uCellHeight parameters. You can use a bitwise OR ( | ) to specify one flag from each group.

The following are the flags that indicate the type of data in the uCellWidth parameter:

Value	Meaning
GLASS_WFRQ	[0x0001] The parameter uCellWidth is the number of cells along the width of the bitmap.
GLASS_WPER	[0x0002] The parameter uCellWidth is the width of the cell in pixels.

The following are the flags that indicate the type of data in the uCellHeight parameter:

Value	Meaning
GLASS_HFRQ	[0x0010] The parameter uCellHeight is the number of cells along the height of the bitmap.
GLASS_HPER	[0x0020] The parameter uCellWidth is the height of the cell in pixels.

Returns

Value	Meaning
SUCCESS	The function was successful.
< 1	An error occurred. Refer to Return Codes.

Comments

If the bitmap has a region, the effect will be applied on the region only.

This function supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.

To update a status bar or detect a user interrupt during execution of this function, refer to LBase::EnableStatusCallback.

This function does not support signed data images. It returns the error code ERROR_SIGNED_DATA_NOT_SUPPORTED if a signed data image is passed to this function.

This function does not support 32-bit grayscale images. It returns the error code ERROR_GRAY32_UNSUPPORTED if a 32-bit grayscale image is passed to this function.

Glass Effect Function - Before

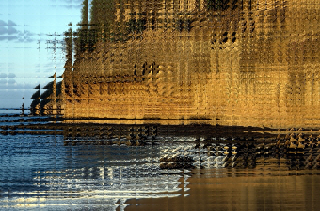

Glass Effect Function - After

View additional platform support for this Glass Effect function.

Required DLLs and Libraries

LTIMGSFX
For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application.

Platforms

Win32, x64.

Example

The following example applies a glass effect to it:

L_INT LBitmap__GlassEffectExample(LAnimationWindow *BitmapWindow)
{

   return BitmapWindow->GlassEffect(20,10, GLASS_WFRQ | GLASS_HPER );

}
