Create and Run Custom Rulesets with the Document Analyzer Demo

This tutorial shows how to create and run custom rulesets using the LEADTOOLS Document Analyzer Demo.

Required Knowledge

Download and install the LEADTOOLS v22 SDK here, and make sure that the license and key files are located in the <INSTALL_DIR>\LEADTOOLS22\Support\Common\License directory. To set the license, refer to the Add References and Set a License tutorial. For an introduction to the Document Analyzer Demo, refer to the Get Started with the Document Analyzer Demo tutorial.

The installed LEADTOOLS SDK contains a Document Analyzer Demo. It harnesses the power of LEAD's image processing technology to intelligently identify the document components and features used to recognize and classify scanned documents. It provides a set of classes and interfaces for automated, unstructured forms processing. This framework provides a high-level way to use LEADTOOLS form information extraction within text, as well as the functionality to complete different actions. Users can inherit from the framework's interfaces to implement their own custom repositories as well.

Open the Document Analyzer Demo

Navigate to the example source code for the project:

Open the project in Visual Studio and open the Document Analyzer Demo using Start or F5.

With the Document Analyzer Demo running, select File -> Open Document. Open the LEADTOOLS Demo PDF document ("Leadtools.pdf") included with the v22 toolkit, which can be found at <INSTALL_DIR>\LEADTOOLS22\Resources\Images\Leadtools.pdf. The following screenshot shows the demo with that file loaded:

Once the document is loaded a sample ruleset is created by default to the left of the document.

Defining a Custom Ruleset

After opening the document ("Leadtools.pdf"), add a Custom Ruleset by clicking Custom Rule on the toolbar.

In the dialog box, define the name of your Ruleset in the Name text box, then define the value in the Value text box. For the purposes of this tutorial, call it lead. Create a Regular Expression by selecting the Expression Builder button.

Define additional options on the Custom Rule dialog box as follows:

• Matching Options Group
  • Use Regular Expressions check box - When selected, applies Regular Expression rules to the Ruleset's Value
  • Match case check box - When selected, requires matching case in order to be detected
  • Match whole word check box
  • Ignore whitespace check box
  • Ignore words shorter than check box: (where x is the number of characters)
• Fuzzy OCR Matching Group
  • Autocorrect OCR Numbers check box
  • Autocorrect OCR Misspellings check box
  • Max Autocorrect (slow) check box
• Result Options Group
  • Include Whole Word check box
  • Include Whole Line check box

Click OK to create custom ruleset.

Running a Custom Ruleset

Run the Ruleset by clicking the Run button on the toolbar or pressing CTRL+SHIFT+F5.

Running a Highlight Ruleset

Highlight information in the document by clicking the Highlight Information button in the LEADTOOLS Document Analyzer Demo. The following screenshot shows the file after the button has been clicked and the instances of "LEAD" have been highlighted.

Running a Redaction Ruleset

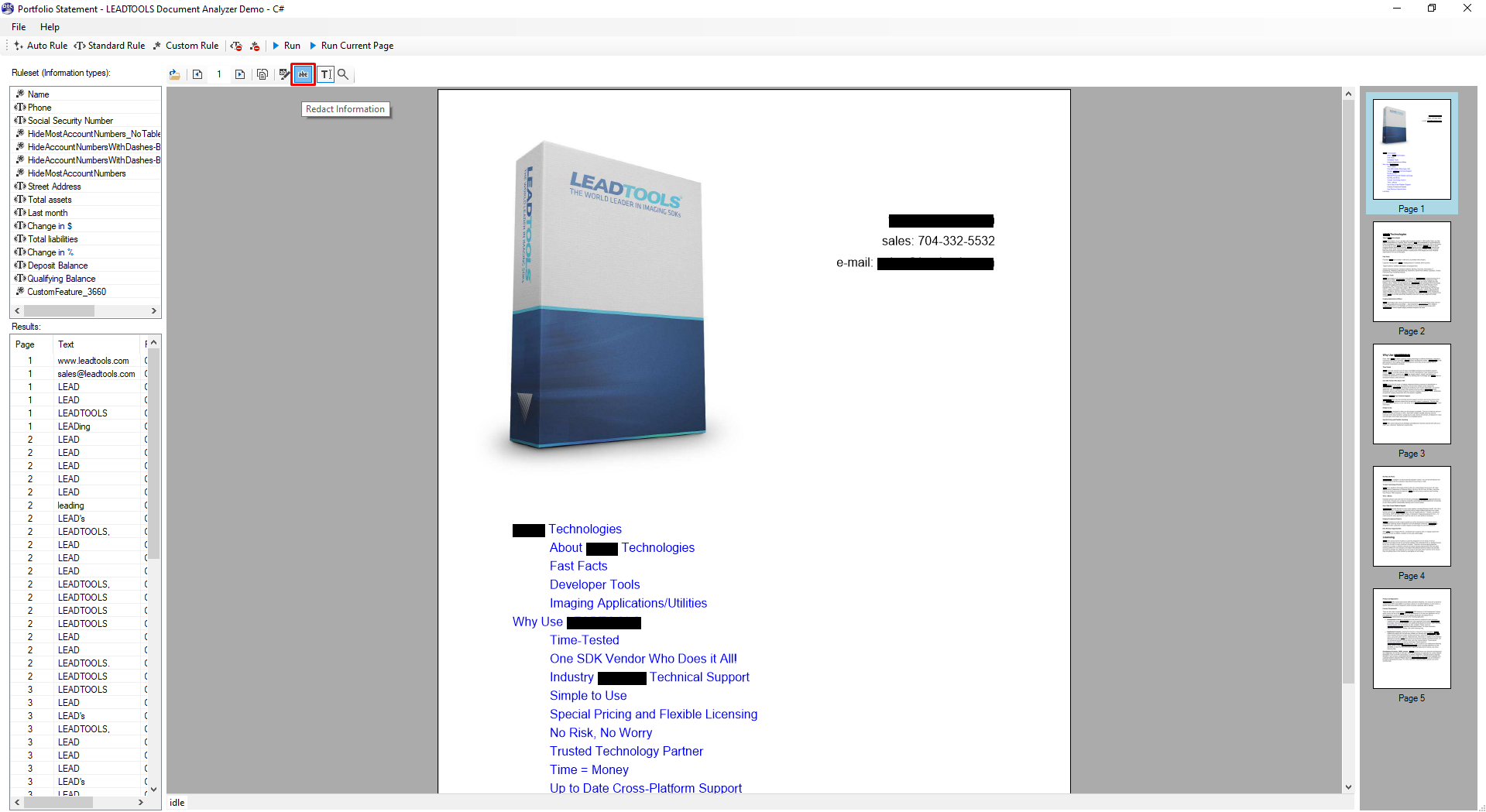

Redact information in the document by clicking the Redact Information button in the LEADTOOLS Document Analyzer Demo. The following screenshot shows the file after the button has been clicked and the instances of "LEAD" have been redacted.

Analyze the document by opening the File menu and then selecting Open Document.
