Add References and Set a License - macOS Swift Console

This tutorial shows how to create a project, add references, and set the license in a Swift macOS Console application using the LEADTOOLS SDK.

Required Knowledge

Before any functionality from the SDK can be leveraged, a valid runtime license will have to be set.

For instructions on how to obtain a runtime license refer to Obtaining a License.

Create the Project

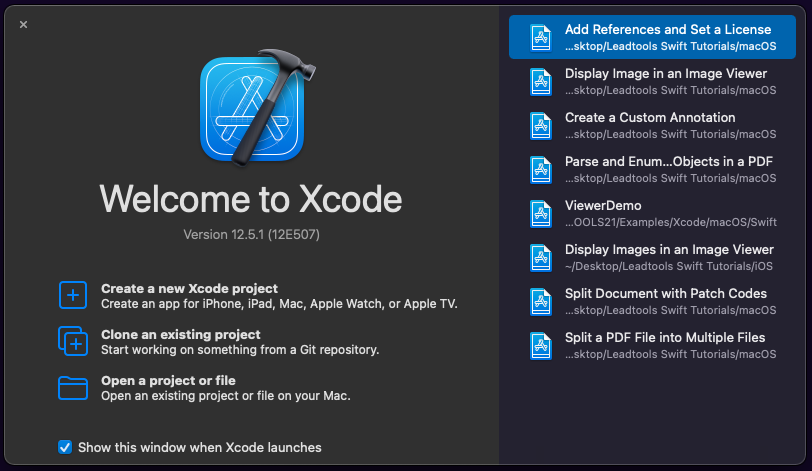

Launch Xcode and select Create a new Xcode project.

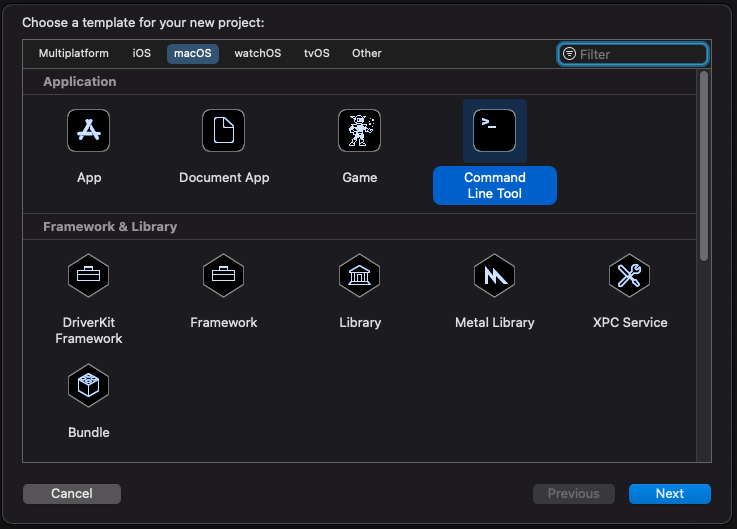

Select macOS at the top and Command Line Tool under the Application section, then click Next.

In the next section, fill in the following and click Next:

• Product Name (This is the name of your application)
• Team (This is from the Apple Developer Program)
• Organization Info (Typically an inverse of your organization web address, for example: com.leadtools for leadtools.com)
• Language (This tutorial is written in Swift)

Note

The Organization Identifier and Product Name combine to make the Bundle Identifier, which must be unique.

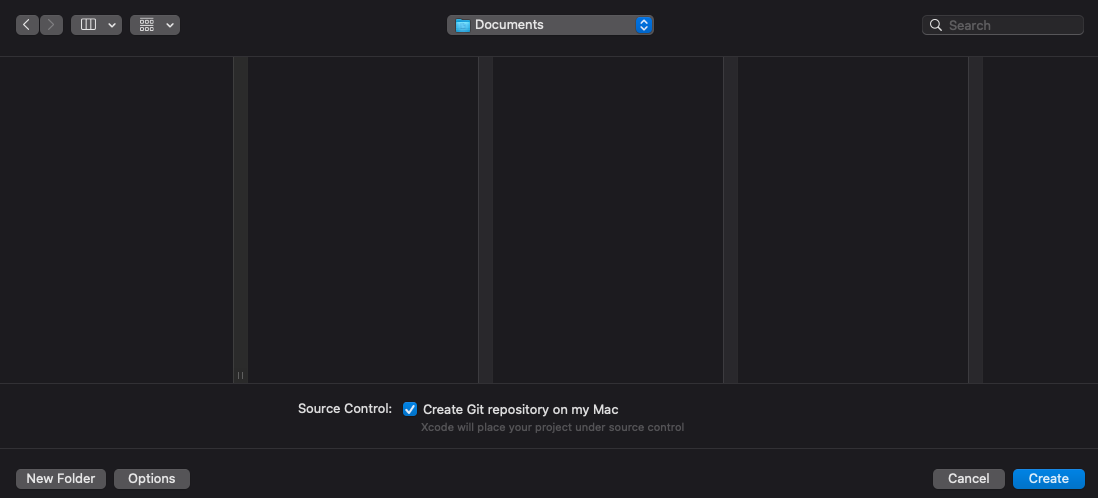

Select the location to save the new project to, then click Create.

Add the LEADTOOLS Framework Packages

To leverage the LEADTOOLS SDK in a Swift macOS Console project, references to the LEADTOOLS Framework files will be needed.

Framework files can be added by one of the following two methods:

• Clicking and dragging them to the Frameworks and Libraries section
• Clicking the + icon at the bottom of the Framework and Libraries section, then selecting Add Files from the Add Other drop down.

The LEADTOOLS Frameworks can be found here: <INSTALL_DIR>/LEADTOOLS22/Bin/Xcode/Frameworks/macOS

Once a framework file is added, a new folder called Frameworks will be added to the Project Navigator, containing the added framework files.

To allow Xcode to utilize these Framework files, a few more steps are required:

• First click on Build Settings and in the Search field type Header. This will help reduce the number of entries and make it easier to find the two sections we need to adjust. Scroll to the bottom and under the Search Paths section, find the entry Framework Search Path. Double-click to the right of it, where the other sections have Yes/No values listed, to bring up a screen allowing you to add values.
• Next, click on + and type in the path to the framework files given above. When complete select the up-down arrows next to non-recursive and switch it to recursive.

If done correctly, the entry should look something like this:

• Framework Search Paths <INSTALL_DIR>/LEADTOOLS22/Bin/Xcode/Frameworks/macOS/**

Next, find the entry called Objective-C Bridging Header, under the Swift Compiler - General section. Also, double-click to the right of it and type in the following and hit entry:

• Leadtools-Bridging-Header.h


Right-click on the blue file in the Project Manager and select New File.... In the new window select Header File from the macOS and Source sections, then click Next. At the top, change the Save As: name to Leadtools-Bridging-Header.h, which is the same name as the one provided in the Objective-C Bridging Header entry above and must match. Then click the check box under the Targets section, as shown in the screenshot below, and click Create.

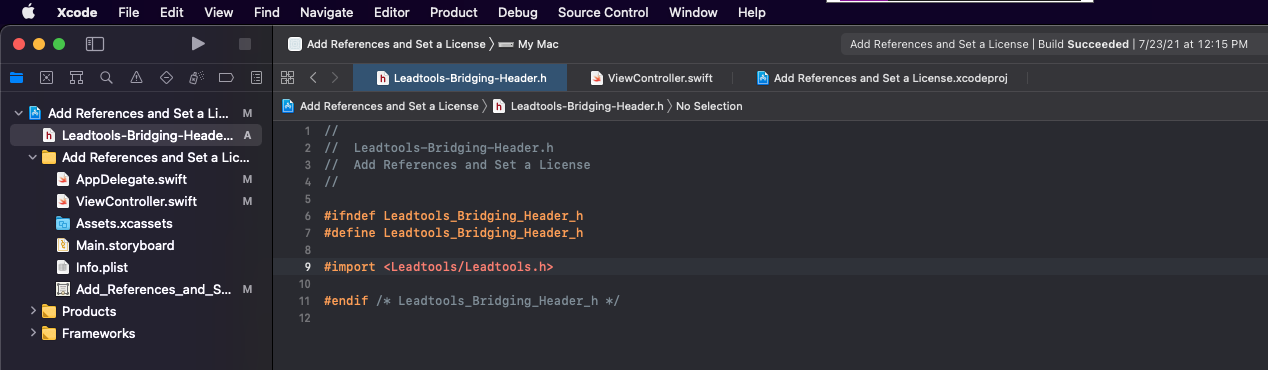

The new .h file will be displayed upon creation. Between the #define and #endif section, list the framework .h files containing the API needed for the project.

For the purposes of this tutorial, only the main leadtools.h file is needed, so list it as follows:

#import <Leadtools/Leadtools.h>

Note

All framework imports will follow the same structure, for example: leadtools.codecs would be #import <Leadtools.Codecs/Leadtools.Codecs.h>.

Once finished click Project -> Build, or Command B, to build the project. If done correctly, everything should build without error. If you have any errors double-check the paths and file names provided in the prior sections.

Add the Set License Code

With the project created and the frameworks installed, coding can begin.

Open the main.swift file. Delete the print("Hello, World!") line, and in its place add SetLicense().

Create a new func named SetLicense() and add the code below to properly set your LEADTOOLS license.

func SetLicense() {
	let license = "/path/to/LEADTOOLS22/Support/Common/License/License.lic"
	let keyFile = String("\(license).key")
	do {
		let key = try String(contentsOfFile: keyFile)
		try LTRasterSupport.setLicense(file: license, developerKey: key)
	} catch {
		print("Unable to read contents of .key file.")
	}

	if LTRasterSupport.kernelExpired {
		print("License file invalid or expired.")
	} else {
		print("License file set successfully!")
	}
}

Run the Project

Clean the project to clear any errors by selecting Product -> Clean Build Folder or Shift + Command + K.

Run the project by selecting Product -> Run or Command + R.

If the steps were followed correctly, the application runs and displays a message in the Output window to indicate success: License file set successfully!.

Wrap-up

This tutorial showed how to create a new Swift macOS Console project, add LEADTOOLS Frameworks and Header files, and set the license.

This is the basis for all Swift macOS Console applications leveraging the LEADTOOLS SDK. All functionality in the SDK is unlocked via setting a license. Hence, the setLicense() function must be called before calling any other LEADTOOLS SDK functions.

Once the SDK is purchased, the evaluation license can be replaced with a valid runtime license to disable the Nag Message.
