Implement Annotation Roles and Groups - WinForms C# .NET 6

This tutorial shows how to grant user and group level permissions to create, edit, and remove annotations in a .NET 6 WinForms application using the LEADTOOLS SDK.

Overview
Summary This tutorial covers granting user and group level permissions to create, edit, and remove annotations in the Image Viewer.
Completion Time 20 minutes
Visual Studio Project Download tutorial project (5 KB)
Platform C# .NET 6 WinForms Application
IDE Visual Studio 2022
Development License Download LEADTOOLS

Required Knowledge

Get familiar with the basic steps of creating a project and working with automated annotations by reviewing the Add References and Set a License and Draw and Edit Annotations on Images tutorials, before working on the Implement Annotation Roles and Groups - WinForms C# .NET 6 tutorial.

Create the Project and Add LEADTOOLS References

Start with a copy of the project created in the Add References and Set a License tutorial. If the project is not available, follow the steps in that tutorial to create it.

The references needed depend upon the purpose of the project. References can be added via NuGet packages.

If using NuGet references, this tutorial will require the following NuGet packages:

For a complete list of which DLL files are required for your application, refer to Files to be Included in your Application.

Set the License File

The License unlocks the features needed for the project. It must be set before any toolkit function is called. For details including tutorials for different platforms, refer to Setting a Runtime License.

There are two types of runtime licenses:

Create and Assign Roles Code

With the project created, the references added, and the license set, coding can begin.

Right-click on Form1.cs in the Solution Explorer, and select View Code to bring up the code behind the form. Ensure the using statements below are in the using block at the top.

C#
// Using block at the top
using System;
using System.Windows.Forms;
using System.Text;

using Leadtools;
using Leadtools.Annotations.Automation;
using Leadtools.Annotations.Engine;
using Leadtools.Annotations.WinForms;
using Leadtools.Controls;
using Leadtools.Codecs;

Ensure that the global variables below are added to the Form1 class.

C#
// Declare these global members
private AnnGroupsRoles groupRoles = new AnnGroupsRoles();
private ImageViewer viewer;
private ImageViewerAutomationControl automationControl;
private AnnAutomationManager annAutomationManager;
private AnnAutomation automation;
private AutomationManagerHelper managerHelper;

Add the class below to Form1.cs, which will be used to create custom annotation roles.

C#
public sealed class CustomRoles
{
    private CustomRoles() { }

    public const string Writer = "Writer";
}

Add the code below to the Form1() method to create the roles, assign the roles, and set the current user to "Mike".

C#
public Form1()
{
    InitializeComponent();
    InitLEAD();
    CreateRoles(groupRoles);
    AssignRoles(groupRoles);
    groupRoles.CurrentUser = "Mike";
}

Ensure that the below code is added to the Form1_Load event handler.

C#
private void Form1_Load(object sender, EventArgs e)
{
    viewer = new ImageViewer();
    viewer.Dock = DockStyle.Fill;
    viewer.BackColor = Color.DarkGray;

    // Initialize Automation Control for Image Viewer
    automationControl = new ImageViewerAutomationControl();
    automationControl.ImageViewer = viewer;

    RasterCodecs codecs = new RasterCodecs();

    // Load the main image into the viewer, sets the viewers height and width
    viewer.Image = codecs.Load(@"C:\LEADTOOLS22\Resources\Images\Leadtools.pdf");

    // Initialize the Interactive Mode for the Image Viewer
    AutomationInteractiveMode automationInteractiveMode = new AutomationInteractiveMode();
    automationInteractiveMode.AutomationControl = automationControl;

    // Add the Interactive Mode to the Image Viewer
    viewer.InteractiveModes.BeginUpdate();
    viewer.InteractiveModes.Add(automationInteractiveMode);
    viewer.InteractiveModes.EndUpdate();

    if (viewer.Image != null)
    {
        // Create and set up the Automation Manager
        annAutomationManager = new AnnAutomationManager();
        annAutomationManager.RestrictDesigners = true;

        // Instruct the Manager to create all the default Automation objects.
        annAutomationManager.CreateDefaultObjects();

        //Applying the groupRoles to the annAutomationManger
        annAutomationManager.GroupsRoles = groupRoles;

        // Initialize the Manager Helper and create the Toolbar
        // Add the Toolbar and the Image Viewer to the Controls
        managerHelper = new AutomationManagerHelper(annAutomationManager);
        managerHelper.CreateToolBar();
        panel2.Controls.Add(managerHelper.ToolBar);
        panel2.Controls.Add(viewer);
        viewer.BringToFront();

        // Set up the Automation (it will create the Container as well)
        automation = new AnnAutomation(annAutomationManager, automationControl);
        // Set this Automation as the active one
        automation.Active = true;

        // Set the size of the Container to the size of the Image Viewer
        automation.Container.Size = automation.Container.Mapper.SizeToContainerCoordinates(LeadSizeD.Create(viewer.Image.ImageWidth, viewer.Image.ImageHeight));
    }
    groupRoles.GenerateRole += new EventHandler(groupsRoles_GenerateRole);
}

Create two new methods named CreateRoles(AnnGroupsRoles groupRoles) and AssignRoles(AnnGroupsRoles groupRoles). These two methods are called inside the Form1 method, as shown above. Add the respective code below to create and assign roles.

C#
static void CreateRoles(AnnGroupsRoles groupRoles)
{
    AnnRoles editor = new AnnRoles { AnnRoles.FullControl };
    AnnRoles writer = new AnnRoles { CustomRoles.Writer, AnnRoles.ViewAll, AnnRoles.Edit };
    AnnRoles guest = new AnnRoles { AnnRoles.ViewAll };

    groupRoles.GroupRoles.Add("Editor", editor);
    groupRoles.GroupRoles.Add("Writer", writer);
    groupRoles.GroupRoles.Add("Guest", guest);
}

static void AssignRoles(AnnGroupsRoles groupRoles)
{
    string user1 = "Mike";
    string user2 = "Kevin";
    string user4 = "Jim";

    groupRoles.GroupUsers.Add("Editor", new List { user1 });
    groupRoles.GroupUsers.Add("Writer", new List { user2 });
    groupRoles.GroupUsers.Add("Guest", new List { user4 });
}

Add a new event handler named groupsRoles_GenerateRole(object sender, AnnOperationInfoEventArgs e) to ensure the Writer role does not have access to create any annotation object, just the ones listed below. This event handler is initialized in the Form1_Load event, as shown above.

C#
void groupsRoles_GenerateRole(object sender, AnnOperationInfoEventArgs e)
{
    if (e.Type == AnnOperationType.CreateObjects || e.Type == AnnOperationType.RenderingObjects || e.Type == AnnOperationType.EditObjects)
    {
        if (e.AnnObject.Id == AnnObject.SelectObjectId || e.AnnObject.Id == AnnObject.LineObjectId || e.AnnObject.Id == AnnObject.RectangleObjectId || e.AnnObject.Id == AnnObject.EllipseObjectId || e.AnnObject.Id == AnnObject.PolylineObjectId || e.AnnObject.Id == AnnObject.PolygonObjectId || e.AnnObject.Id == AnnObject.CurveObjectId || e.AnnObject.Id == AnnObject.ClosedCurveObjectId || e.AnnObject.Id == AnnObject.PointerObjectId || e.AnnObject.Id == AnnObject.NoteObjectId)
        {
            e.Role = CustomRoles.Writer;
        }
    }
}

Double-click on Form1.cs to bring up the designer. Add a Panel control to the right side of the form. Inside the panel add the 6 items below:

Control Type Name Text
Label currentUser Current user: Mike
Label currentRole Current role(s): Editor
TextBox textDescription This user has full control to all annotation objects and can edit/view any annotations currently in the image viewer.
Button mikeButton Mike
Button jimButton Jim
Button kevinButton Kevin

This is how the form should now look.

Screenshot of the panel design.

Double-click each of the 3 buttons created above to create their own event handlers. Add the code below to each respective button's click event handlers. The code below will select the correct user based on which is clicked. If there are multiple roles for one user, they would all be displayed in the information section of our designer by appending the string with a string builder. The buttons stop the annotation tool bar, use both of our helper functions to enable/disable certain annotation objects on the toolbar, and then resume/refresh the toolbar to reflect the appropriate role-based changes.

C#
private void mikeButton_Click(object sender, EventArgs e)
{
    groupRoles.CurrentUser = "Mike";
    currentUser.Text = $"Current user : {groupRoles.CurrentUser}";
    var role = groupRoles.GetUserGroup(groupRoles.CurrentUser);
    currentRole.Text = $"Current Role(s) : {role[0]}";
    if (role.Count > 1)
    {
        var roleString = new StringBuilder();
        roleString.Append(role[0]);
        for (int i = 1; i < role.Count; i++)
        {
            roleString.Append($", {role[i]}");
        }
        currentRole.Text = $"Current Role(s) : {roleString}";
    }
    textDescription.Text = "This user has full control to all annotation objects and can edit/view any annotations currently in the image viewer.";
    managerHelper.ToolBar.SuspendLayout();
    DisableAnnotations(groupRoles.CurrentUser);
    managerHelper.ToolBar.ResumeLayout();
    managerHelper.ToolBar.Refresh();
}

private void jimButton_Click(object sender, EventArgs e)
{
    groupRoles.CurrentUser = "Kevin";
    currentUser.Text = $"Current user : {groupRoles.CurrentUser}";
    var role = groupRoles.GetUserGroup(groupRoles.CurrentUser);
    currentRole.Text = $"Current Role(s) : {role[0]}";
    if (role.Count > 1)
    {
        var roleString = new StringBuilder();
        roleString.Append(role[0]);
        for (int i = 1; i < role.Count; i++)
        {
            roleString.Append($",{role[i]}");
        }
        currentRole.Text = $"Current Role(s) : {roleString}";
    }
    textDescription.Text = "This user has access to the first nine annotation objects and the note annotation object. They can edit the annotations objects they put down but not the editors, but they can see all the annotations objects.";
    managerHelper.ToolBar.SuspendLayout();
    DisableAnnotations(groupRoles.CurrentUser);
    managerHelper.ToolBar.ResumeLayout();
    managerHelper.ToolBar.Refresh();
}
private void kevinButton_Click(object sender, EventArgs e)
{
    groupRoles.CurrentUser = "Jim";
    currentUser.Text = $"Current user : {groupRoles.CurrentUser}";
    var role = groupRoles.GetUserGroup(groupRoles.CurrentUser);
    currentRole.Text = $"Current Role(s) : {role[0]}";
    if (role.Count > 1)
    {
        var roleString = new StringBuilder();
        roleString.Append(role[0]);
        for (int i = 1; i < role.Count; i++)
        {
            roleString.Append($",{role[i]}");
        }
        currentRole.Text = $"Current Role(s) : {roleString}";
    }
    textDescription.Text = "This user only has access in viewing the annotations, they cannot edit any or add any new ones.";
    managerHelper.ToolBar.SuspendLayout();
    DisableAnnotations(groupRoles.CurrentUser);
    managerHelper.ToolBar.ResumeLayout();
    managerHelper.ToolBar.Refresh();
}

Add two new methods to the Form1 class named EnableAnnotations() and DisableAnnotations(string role). The DisableAnnotations method will be called inside the above click events and the EnableAnnotations method will be called inside the DisableAnnotations method, as shown below.

Add the code below to the EnableAnnotations function to enable all the objects on the toolbar regardless of who is the current user.

C#
private void EnableAnnotations()
{
    //Helper function that re-enables all the annotations objects
    for (int i = 0; i < managerHelper.ToolBar.Items.Count; i++)
    {
        managerHelper.ToolBar.Items[i].Enabled = true;
    }
}

Add the code below to the DisableAnnotations function to allow access to specific objects on the toolbar depending on the role chosen.

C#
private void DisableAnnotations(string role)
{
    //We get the group the user is assigned and initially enable all annotations, then disable the specifics
    //we don't want them allowed to have.
    var roles = groupRoles.GetUserGroup(groupRoles.CurrentUser);
    if (roles[0] == "Guest")
    {
        for (int i = 0; i < managerHelper.ToolBar.Items.Count; i++)
        {
            managerHelper.ToolBar.Items[i].Enabled = false;
        }
    }
    if (roles[0] == "Writer")
    {
        EnableAnnotations();
        for (int i = 9; i < managerHelper.ToolBar.Items.Count; i++)
        {
            managerHelper.ToolBar.Items[i].Enabled = false;
        }
        managerHelper.ToolBar.Items[13].Enabled = true;
    }
    if (roles[0] == "Editor")
    {
        EnableAnnotations();
    }
}

Run the Project

Run the project by pressing F5, or by selecting Debug -> Start Debugging.

If the steps were followed correctly, the application runs and you can draw annotations under the Mike role by default. The Mike role has all the objects unlocked. If you select Kevin or Jim you will see the role assigned and the annotations disabled based on that role.

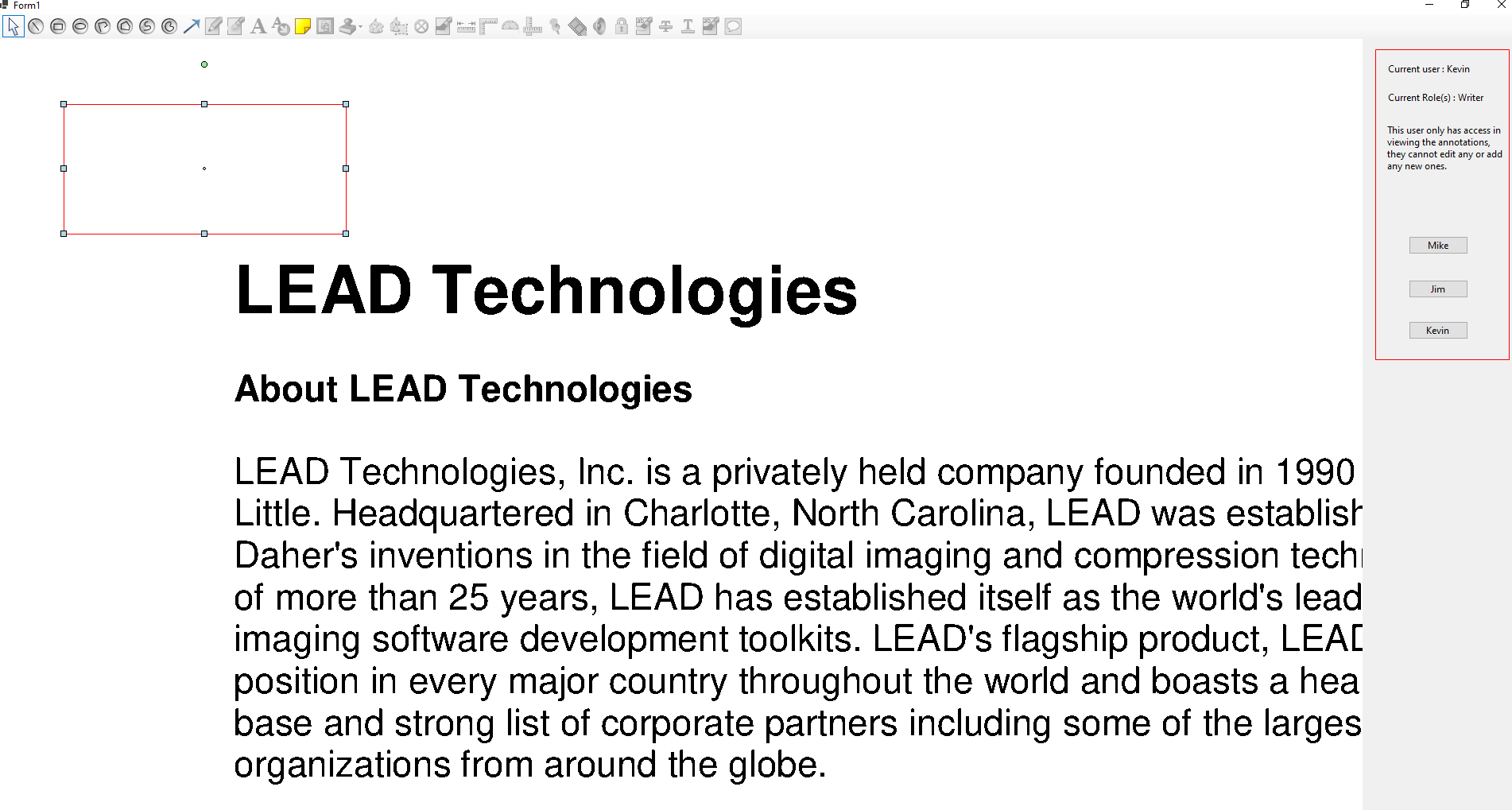

Form showing Kevin as the user.

Wrap-up

This tutorial showed how to create and implement annotation roles and groups. It also showed how to use the AnnRoles and AnnGroupsRoles classes.

See Also
